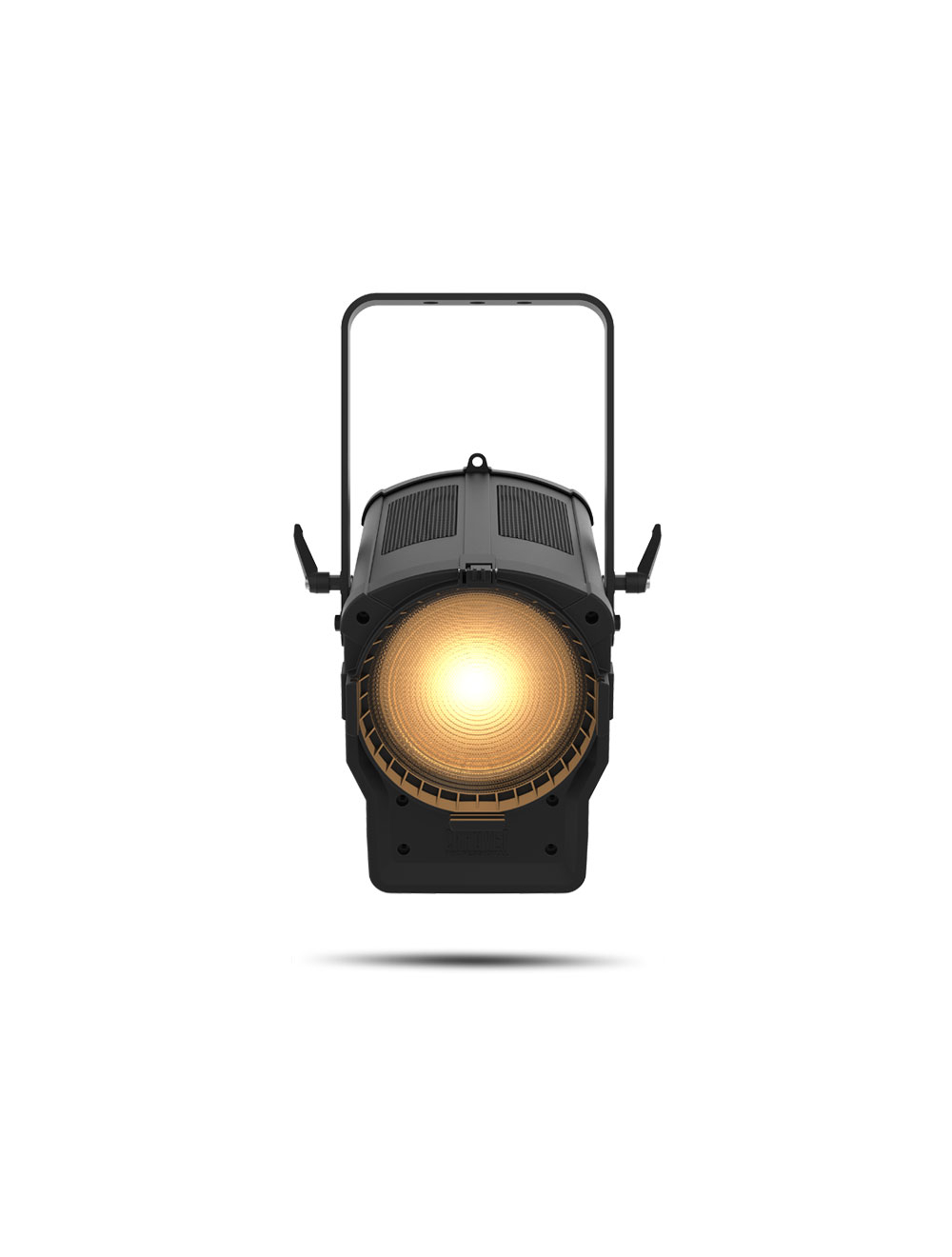

Chauvet Pro OVATIONF265WW-2 Ovation F-265 WW 1 LED 230 Watt 100-240 Volt High-Power Fresnel-Style Fixture

AT A GLANCE
• Warm white fresnel with output comparable to an 8”, 2,000 W Fresnel
• Soft and even field of light
• 16-bit dimming resolution for smooth fades
• Virtually silent operation for use in any situation
• Motorized zoom range between 16° to 68°, manually or via DMX

SPECIFICATIONS
OPTICAL
• Light Source: 1 LED (WW) 230 W, (3.6 A), 50,000 hours life expectancy
• Color Temperature (at full): 3142 K
• CRI: 96
• Beam Angle: 16° to 46°
• Field Angle: 27° to 68°
• Zoom Range: 16° to 68°
• Lumens (27°): 9,283
• Lumens (68°): 12,802
• Illuminance (27°): 4,010 lux @ 5 m
• Illuminance (68°): 1,162 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 30 Hz
• Dim Modes: 4

CONSTRUCTION / PHYSICAL
• Dimensions: 20.39" x 14.96" x 14.57"
• Weight: 21.83 lb (9.90 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast
• Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS
• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL
• Protocol(s): DMX, RDM
• DMX Channels: 1, 2, 2 or 5
• Modes/Personalities: 4 personalities (1, 2, 2, 5)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
• Power and Current: 222 W, 1.84 A @ 120 V, 60 Hz
• Power and Current: 230 W, 1.10 A @ 208 V, 60 Hz
• Power and Current: 231 W, 1.01 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, FCC
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
• Ovation F-265WW
• Neutrik powerCON power cord
• Gel Frame

OPTIONAL ACCESSORIES
• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik® powerCON® cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation F7.5” Barndoor
• Ovation Pole Operated Yoke 2 – 8”

ORDERING INFO
• Item Code: (120 V): 03031438 ; (230 V): 03031439
