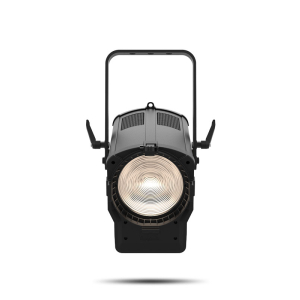

Chauvet Pro OVATIONF415FC-2 Ovation F-415 FC 6 LEDs 230 Watt 100-240 Volt Full Color LED (RGBAL) Fresnel Lighting

AT A GLANCE
• Full Color LED (RGBAL) Fresnel lighting fixture for theatre, film and production
• Soft and even field of light
• Smooth, motorized zoom from 14° to 68°
• Beautiful 16-bit dimming of master dimmer and individual colors
• Easy to use on board control of color, zoom and dimming
• Virtual Color wheel with color matched to popular gel colors
• Color Temperature Presets from 2800 K to 6500 K
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theatre applications

SPECIFICATIONS
OPTICAL
• Light Source: 46 LEDs (10 red, 10 green, 6 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy.
• Color Temperature (range): 2800 to 6500 K
• CRI (3200 K): 91
• Beam Angle: 14° to 43°
• Field Angle: 27° to 68°
• Zoom Range: 14° to 68°
• Lumens (27°): 1,877
(68°): 2,815
• Illuminance (27°): 915 lux @ 5 m
(68°): 190 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 27 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL
• Dimensions: 19.69" x 13.78" x 12.20"
• Weight: 16.76 lb (7.60 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast
• Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)

CONNECTIONS
• Power Connection: Edison (local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL
• Control Protocol: DMX, RDM
• DMX Channels: 1, 3, 5, 7, 10, 12, 13 or 15
• Modes/Personalities: 9 personalities (HSV, 1CH, 3CH, 5CH, 7CH, 10CH, 12CH, 13CH, 15CH)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 10 units @ 120 V; 18 units @ 208 V; 20 units @ 230 V
• Power and Current: 130 W, 1.101 A @ 120 V, 60 Hz
• Power and Current: 127 W, 0.638 A @ 208 V, 60 Hz
• Power and Current: 127 W, 0.585 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, FCC, UKCA
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
• Ovation F-415FC
• Seetronic Powerkon IP65 power cord
• Gel frame (6.25 in / 158.75 mm accessories)

OPTIONAL ACCESSORIES
• Professional Clamps: CTC-50HC, CTC-50HCN
• TRUE1 Style Power Extension cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation F6.25” Barndoor

ORDERING INFO
• Item Code: 03031482
