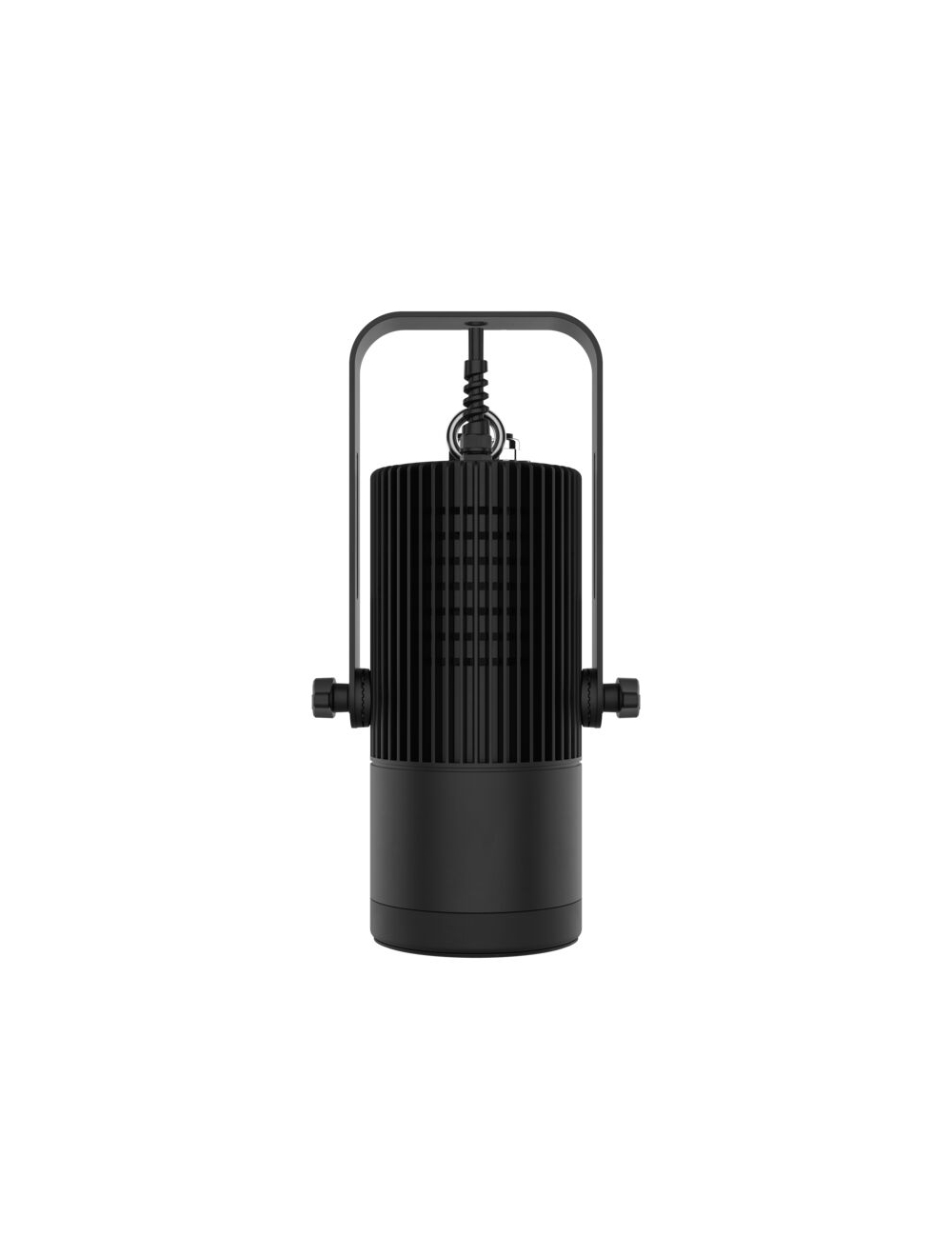

Chauvet Pro OVATIONH55FCBLKH2 Ovation H-55 FC 26 LEDs 136.5 Watt 100-240 Volt Compact Full Color (RGBAL) Convection Cooled Houselight

AT A GLANCE
• Compact, full color (RGBAL), convection cooled houselight
• Interchangeable lens plates to adapt to different mounting heights
• 5-pin XLR and terminal blocks for DMX connections
• Use included yoke for mounting, or suspend from integrated loop-eye
• Included recess and sconce mounting kits
• 16-bit dimming for ultra-smooth fades
• DMX, WDMX and RDM (Remote Device Management) for added programming flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

SPECIFICATIONS
OPTICAL
• Light Source: 26 LEDs (6 red, 6 green, 6 blue, 5 amber, 4 lime) 2.62 to 5.25 W, (840 mA), 4807 K, 50,000 hours life expectancy.
• Color Temperature (at full): 4807 K
• CRI: 82
• Beam Angle (w/80° filter): 46.1°
• Beam Angle (w/65° lens): 63.3°
• Beam Angle (w/45° lens): 38.8°
• Beam Angle (w/25° lens): 24.7°
• Field Angle (w/80° filter): 76.8°
• Field Angle (w/65° lens): 86.9°
• Field Angle (w/45° lens): 78.4°
• Field Angle (w/25° lens): 46.7°
• Illuminance (w/80° filter): 152 lux @ 5 m
• Illuminance (w/65° lens): 115 lux @ 5 m
• Illuminance (w/45° lens): 173 lux @ 5 m
• Illuminance (w/25° lens): 430 lux @ 5 m
• Lumens (w/80° filter): 2,698
• Lumens (w/65° lens): 2,928
• Lumens (w/45° lens): 2,691
• Lumens (w/25° lens): 2,849
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Color Temperature Presets: Yes/No
• Dim Modes: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL
• Dimensions: 26.38" x 9.06" x 11.50"
• Weight: 17.20 lb (7.80 kg)
• Exterior Color: Black

CONNECTIONS
• Power Connection: Bare-wired
• Power Input: Hard-wired
• Data Connectors: 5-pin XLR, Phoenix connector
• Cable Length (power): 15 ft (4.5 m)

CONTROL
• Control Protocol: DMX, W-DMX, RDM
• DMX Channels: 4, 5, 8, 11, 13, 14, 16 or HSV
• Modes/Personalities: 8 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 62 W, 0.541 A @ 120 V, 60 Hz
• Power and Current: 64 W, 0.308 A @ 208 V, 60 Hz
• Power and Current: 64 W, 0.278 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET,
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-10 °C to 45 °C)

WHAT'S INCLUDED
• Ovation H-55FC
• 65°, 40° and 25° Lens
• 80° Filter
• Egg Crate
• Recess and Sconce Mounting Kits

REQUIRED ACCESSORIES
• RDM2go or other RDM capable interface for fixture set-up

OPTIONAL ACCESSORIES
• W-DMX™ Transmitter
• Professional Clamps: CTC-50HC, CTC-50HCN
• 5-pin DMX Cables
• RDM2go™
