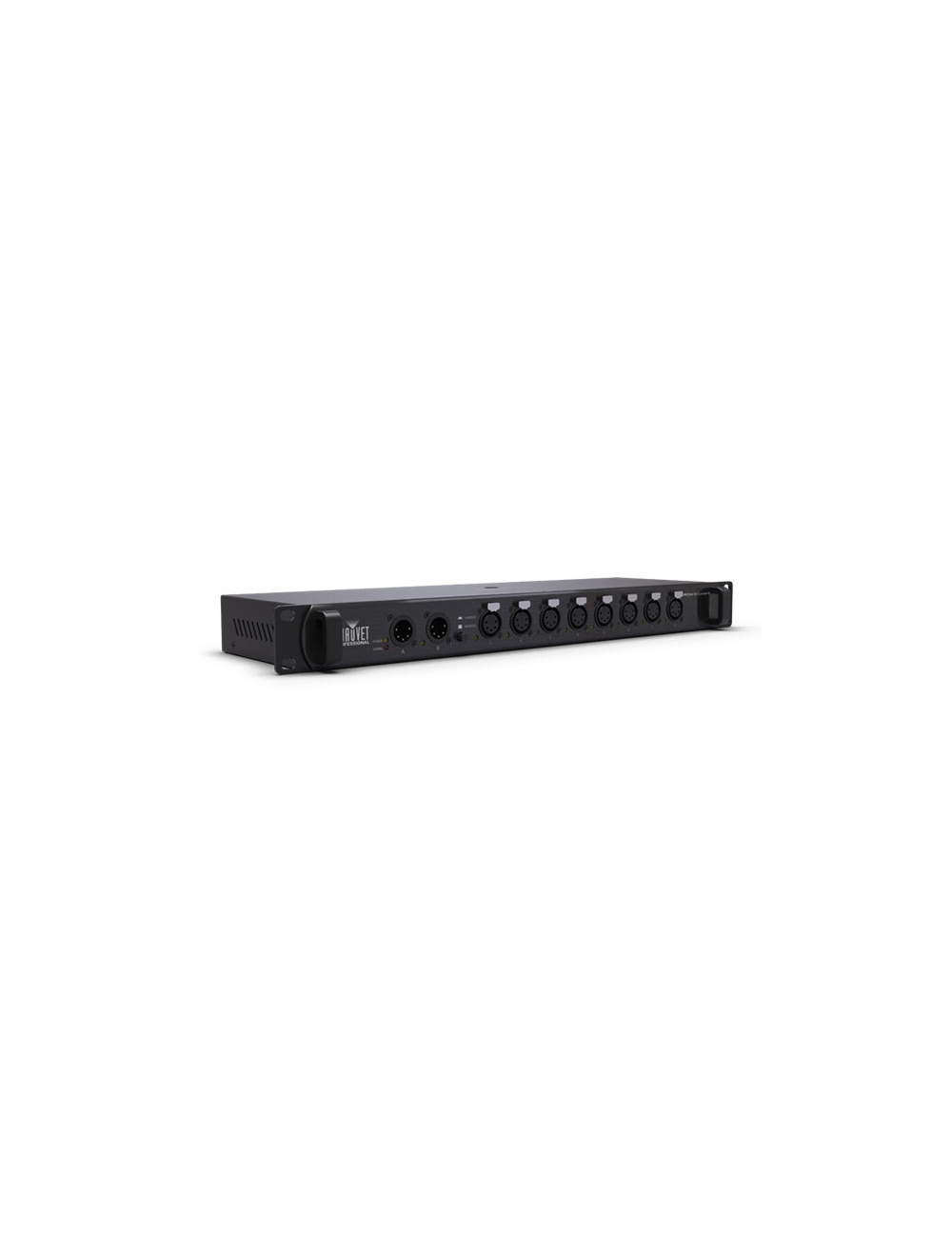

Chauvet Pro RDMXSPLITTER8 RDMX Splitter 8

AT A GLANCE
• Universal RDM E1.20 compliant 5-pin DMX opto-splitter that supports either 1x8 (single universe) or 2x4 (dual universes) modes with the press of a button; or functions as a 2x4 A/B splitter
• Includes power linking to make it easy to install next to existing fixtures, so isolating, amplifying, and splitting signal are now easier than ever
• Rugged reinforced housing supports 1U rackmount and mounting to pipe and truss without additional accessories
• Electrical isolation between inputs and outputs up to 1,000 V between ports
• PowerCON power linking supported to make it easy to split signal at a fixture, where power and data are already present

SPECIFICATIONS
OPTICAL
• Dimensions: 19 x 5.75 x 1.77 in (483 x 146 x 45 mm)
• Weight: 4.2 lb (1.9 kg)
• Exterior Color: Black
• Housing Material: Steel and aluminum
• Rackmount: 1U

CONNECTIONS
• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Device Data Inputs: 5-pin XLR (2 total)
• Device Data Outputs: 5-pin XLR (8 total)
• Cable Length (power): 5 ft (1.5 m)

CONTROL
• Control Protocol: DMX, RDM Pass-thru
• Modes: 2 (1x8, 2x4)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 15A
• Power and Current: 11 W, 0.09 A @ 120 V, 60 Hz
• Power and Current: 14 W, 0.06 A @ 208 V, 60 Hz
• Power and Current: 14 W, 0.06 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
