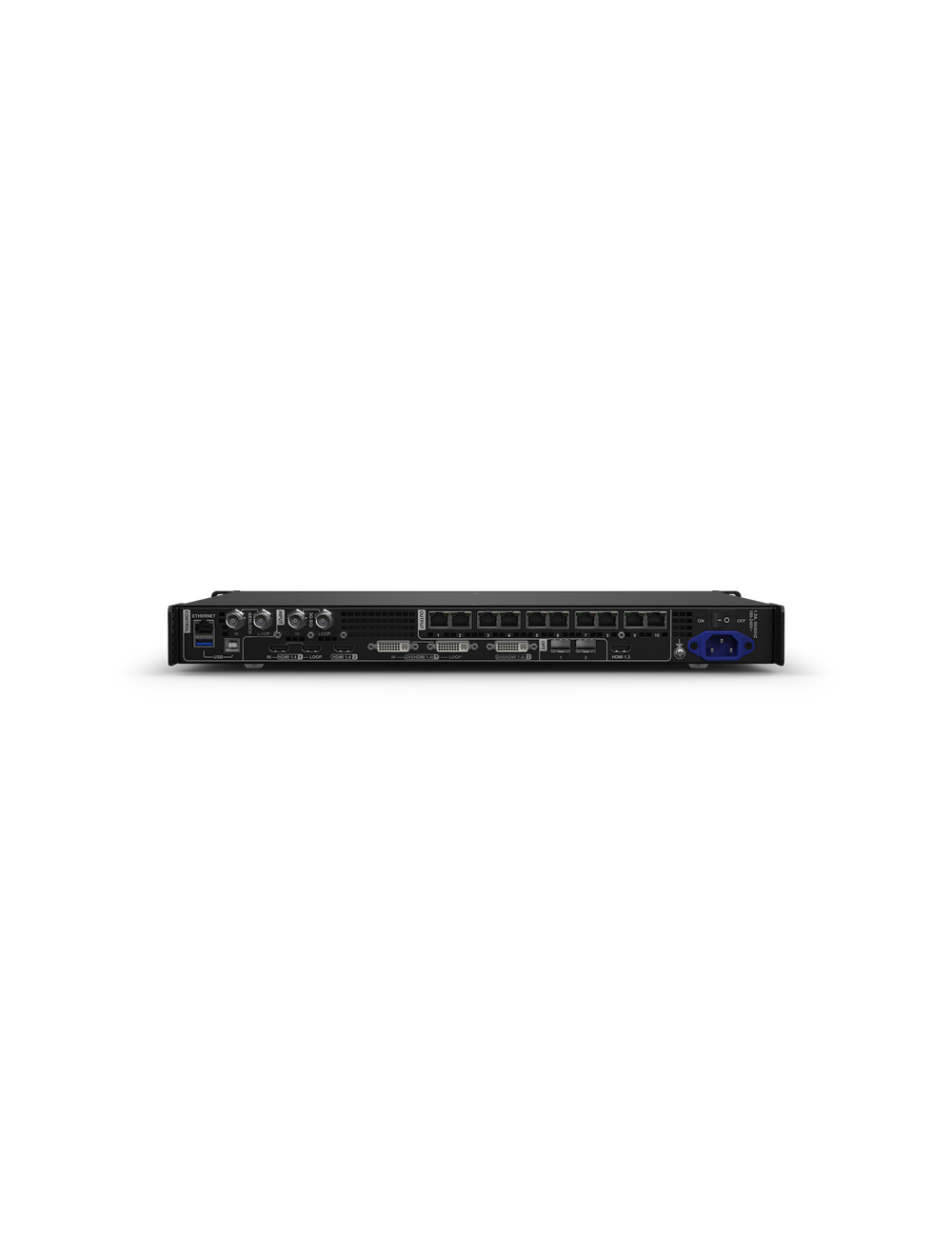

Chauvet Pro VIPDRIVE105NOVA VIP Drive 10-5 Nova
VIP Drive 10-5 Nova is a streamlined all-in-one video processor that outputs signal to any NovaStar video panel. The integrated 3-layer Scaler supports full screen, pixel to pixel, and custom scaling options. VIP Drive 10-5 NOVA can automatically scale to the wall detected and detect connected video panels and strips in the Smart-LCT mapping software without the need to manually input panel/strip resolution.
$4,509.29
FEATURES
• Video wall processor that outputs video signal to any NovaStar video panel
• Integrated 3-layer Scaler supports full screen, pixel to pixel, and custom scaling options
• Automatically scales to the wall detected
• Automatically detect connected video panels/strips in the Smart-LCT mapping software without the need to manually input panel/strip resolution
• Powerful standalone mapping configures most video walls without a computer
• Custom MAPPING function makes setting up your wall fast and easy with on-screen visual feedback
• Specialized on-screen mapping overlay makes mapping fast and easy by identifying the port and order of each video panel live, while video continue to play in the background.
• 10 Ethernet video outputs support 4K at 6.55 million LED resolution
• Works with NovaLCT and Smart-LCT software for complex configurations and panel calibration
• Works with NovaLCT and Smart-LCT software for complex configurations and panel calibration
• Fiber SFP output for all 10 ports of the processor (primary and backup)
• 1 of the fiber SFP ports may be used as a direct video input
• Mode selection in menu allows the processor to function as a regular video controller to screen, a fiber converter to input fiber and output to your screen from another video controller, or in Bypass mode for automatic fault detection and backup from another primary video controller
• Genlock input and loop supports synchronizing multiple VIP processors and with your video source (switcher) to eliminate scan lines on camera.
• Mosaic function allows you to use multiple video inputs on the screen at the same time (2x DVI or 2x HDMI)
• Video backup settings allow you to designate backup video inputs for increased stability
• HDMI Video output enables previewing video sources and monitoring screen output locally
• Image Mosaic function supports synchronizing multiple VIP Drive 10-5 Nova processors, up to 32,768 x 32,768 total resolution
• Supports output LED screen refresh rate 23.98 – 120 Hz
• Low latency, 3D features supported in the drive
•
SPECIFICATIONS
CONSTRUCTION / PHYSICAL
• Dimensions: 21.65" x 15.75" x 7.09"
• Weight: 11.68 lb
• Exterior Color: Black
• Housing Material: Aluminum alloy
• Rackmount: 1U
CONNECTIONS
• Power Connection: Edison (local) plug to IEC
• Power Input: IEC
• Cable Length (power): 5 ft (1.5 m)
• Video Input: DVI-I (2) (HDMI 1.4) Single Link (VESA/EIA/CEA-861 standard, 3840 x 1080 @ 60 Hz – 3840×2160@30hz, HDCP 1.4 compliant)
• Video Input: HDMI 1.4 (2) (VESA standard, 3840 x 1080 @60 Hz – 3840 x 2160 @30 Hz, HDCP 1.4 compliant)
• Video Input: HD-SDI (480i, 576i, 720p, 1080i/p)
• Video Input: SFP-LC Fiber optical (2) (SFP fiber module not included)
• Genlock Input: Blackburst via locking BNC
• Genlock Loop Output: Blackburst via locking BNC
• Video Output: DVI Loop
• Video Output: SDI Loop
• Video Output: HDMI 1.4 Loop
• Video Output: HDMI 1.3 (Preview)
• Video Output: SFP-LC Fiber optical (2) (SFP fiber module not included)
• Audio: Input/Output (2.5mm) TRS, Stereo
• Video Output: RJ45 Ethernet (10)
• Linking Connection: USB 2.0 (Type A to Type B)
• Software Connection: Rear USB /RJ45 Ethernet
• Backup/update Connection: Rear USB/RJ45 Ethernet
CONTROL
• Control Protocol: NovaStar
• Maximum Supported Resolution: 3840 x 2160
• Maximum Supported LEDs (Per Port @ 60Hz): 655,360
• Maximum Supported LEDs: (Total 10 Ports @ 60Hz) 6,553,600
• Remote Control: NovaLCTMars PC software via rear USB (1), RJ-45 Ethernet port
• Supports Video Standards: SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C and DVB-ASI
• Color Space Supported (DVI): RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2
• Color Space Supported (HDMI): RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2
• Color Space Supported (OPT 1): RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2
ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 150 W, 1.25 A @ 120 V, 60 Hz
• Power and Current: 150 W, 0.72 A @ 208 V, 60 Hz
• Power and Current: 150 W, 0.65 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
• CE, ROHS
• IP Rating: IP20, dry location
REQUIRED ACCESSORIES
• Required Software: NovaLCT Software (PC), or SmartLCT Software (PC/MAC)
• Compatible Mounting Options: 1U Rackmount
• Video wall processor that outputs video signal to any NovaStar video panel
• Integrated 3-layer Scaler supports full screen, pixel to pixel, and custom scaling options
• Automatically scales to the wall detected
• Automatically detect connected video panels/strips in the Smart-LCT mapping software without the need to manually input panel/strip resolution
• Powerful standalone mapping configures most video walls without a computer
• Custom MAPPING function makes setting up your wall fast and easy with on-screen visual feedback
• Specialized on-screen mapping overlay makes mapping fast and easy by identifying the port and order of each video panel live, while video continue to play in the background.
• 10 Ethernet video outputs support 4K at 6.55 million LED resolution
• Works with NovaLCT and Smart-LCT software for complex configurations and panel calibration
• Works with NovaLCT and Smart-LCT software for complex configurations and panel calibration
• Fiber SFP output for all 10 ports of the processor (primary and backup)
• 1 of the fiber SFP ports may be used as a direct video input
• Mode selection in menu allows the processor to function as a regular video controller to screen, a fiber converter to input fiber and output to your screen from another video controller, or in Bypass mode for automatic fault detection and backup from another primary video controller
• Genlock input and loop supports synchronizing multiple VIP processors and with your video source (switcher) to eliminate scan lines on camera.
• Mosaic function allows you to use multiple video inputs on the screen at the same time (2x DVI or 2x HDMI)
• Video backup settings allow you to designate backup video inputs for increased stability
• HDMI Video output enables previewing video sources and monitoring screen output locally
• Image Mosaic function supports synchronizing multiple VIP Drive 10-5 Nova processors, up to 32,768 x 32,768 total resolution
• Supports output LED screen refresh rate 23.98 – 120 Hz
• Low latency, 3D features supported in the drive
•
SPECIFICATIONS
CONSTRUCTION / PHYSICAL
• Dimensions: 21.65" x 15.75" x 7.09"
• Weight: 11.68 lb
• Exterior Color: Black
• Housing Material: Aluminum alloy
• Rackmount: 1U
CONNECTIONS
• Power Connection: Edison (local) plug to IEC
• Power Input: IEC
• Cable Length (power): 5 ft (1.5 m)
• Video Input: DVI-I (2) (HDMI 1.4) Single Link (VESA/EIA/CEA-861 standard, 3840 x 1080 @ 60 Hz – 3840×2160@30hz, HDCP 1.4 compliant)
• Video Input: HDMI 1.4 (2) (VESA standard, 3840 x 1080 @60 Hz – 3840 x 2160 @30 Hz, HDCP 1.4 compliant)
• Video Input: HD-SDI (480i, 576i, 720p, 1080i/p)
• Video Input: SFP-LC Fiber optical (2) (SFP fiber module not included)
• Genlock Input: Blackburst via locking BNC
• Genlock Loop Output: Blackburst via locking BNC
• Video Output: DVI Loop
• Video Output: SDI Loop
• Video Output: HDMI 1.4 Loop
• Video Output: HDMI 1.3 (Preview)
• Video Output: SFP-LC Fiber optical (2) (SFP fiber module not included)
• Audio: Input/Output (2.5mm) TRS, Stereo
• Video Output: RJ45 Ethernet (10)
• Linking Connection: USB 2.0 (Type A to Type B)
• Software Connection: Rear USB /RJ45 Ethernet
• Backup/update Connection: Rear USB/RJ45 Ethernet
CONTROL
• Control Protocol: NovaStar
• Maximum Supported Resolution: 3840 x 2160
• Maximum Supported LEDs (Per Port @ 60Hz): 655,360
• Maximum Supported LEDs: (Total 10 Ports @ 60Hz) 6,553,600
• Remote Control: NovaLCTMars PC software via rear USB (1), RJ-45 Ethernet port
• Supports Video Standards: SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C and DVB-ASI
• Color Space Supported (DVI): RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2
• Color Space Supported (HDMI): RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2
• Color Space Supported (OPT 1): RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2
ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 150 W, 1.25 A @ 120 V, 60 Hz
• Power and Current: 150 W, 0.72 A @ 208 V, 60 Hz
• Power and Current: 150 W, 0.65 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
• CE, ROHS
• IP Rating: IP20, dry location
REQUIRED ACCESSORIES
• Required Software: NovaLCT Software (PC), or SmartLCT Software (PC/MAC)
• Compatible Mounting Options: 1U Rackmount
| Part Number | VIPDRIVE105NOVA |
|---|---|
| Manufacturer | Chauvet |
| Dimensions | 21.65" x 15.75" x 7.09" |
| UPC Code | 781462222260 |
| Lead Time | Ships in 2-3 Business Days |
| Certifications |  |
