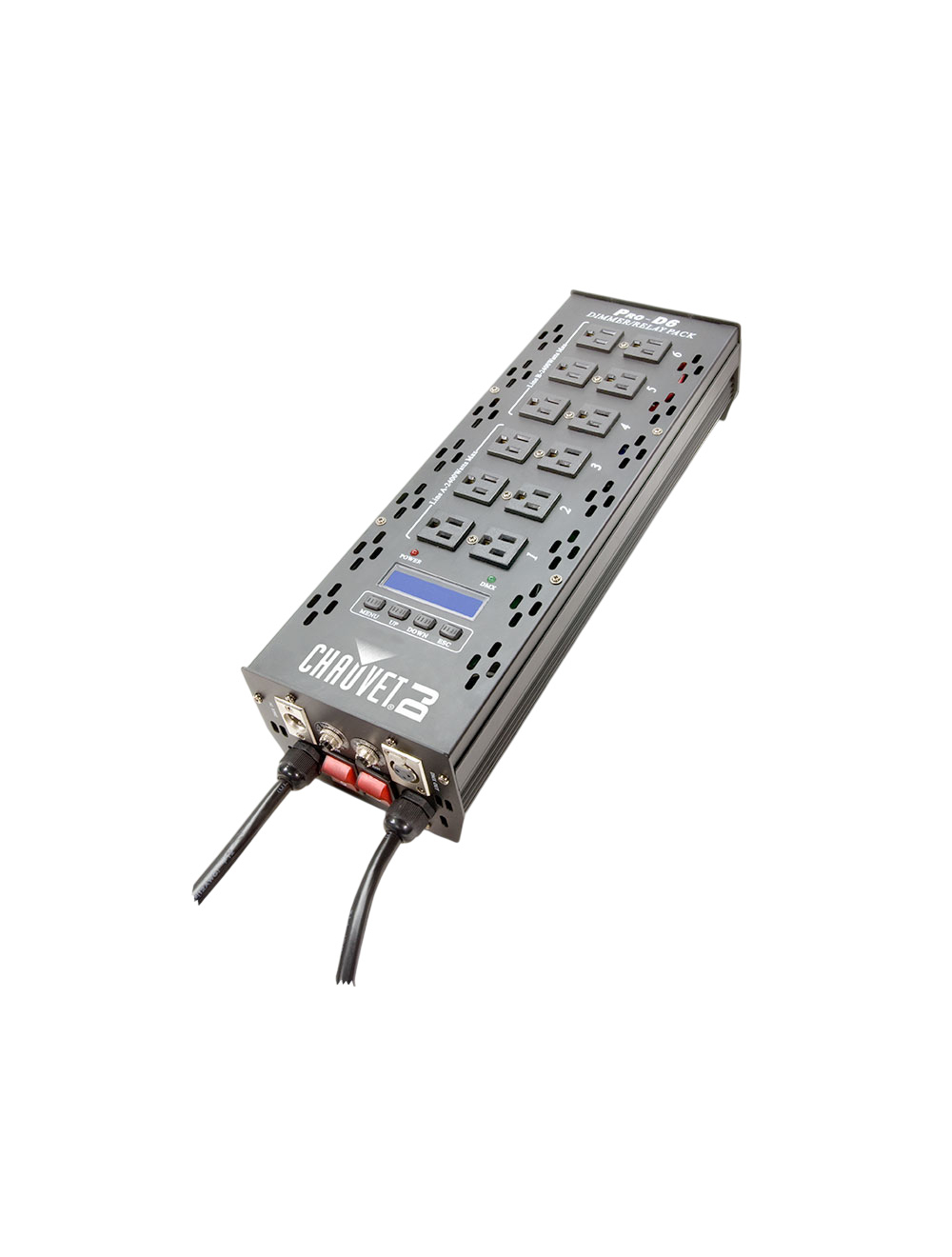

Chauvet PROD6 Pro-D6 100-240 Volt 6-channel DMX-512 Dimmer

Highlights
• 6-channel DMX dimmer/relay pack
• Increase control by setting each channel to any DMX address
• Increase flexibility by setting each channel as either a dimmer or relay
• Features a variable electronic dimmer (0 to 100%)
• Optional square, switch or linear dimming curves for each channel
• Dual 20 A power lines (requires 2 separate circuits on the same phase)
• Increase options with an individual switch, circuit breaker and plug per line
• Accommodates different input voltages simultaneously
• Includes 2 Edison plugs per channel

Specifications
• DMX Channels: 6
• DMX Connectors: 3-pin
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Weight: 25.18 lb (11.42 kg)
• Size: 24.02" x 10.24" x 12.99"
• Approvals: CE
• Output: 10 A (per channel), 20 A (per power line), 40 A (max)
• Breaker Size: 20 A 250 V

WHAT'S INCLUDED
• 6-channel DMX dimmer/relay pack
• Set each channel to any DMX address
• Features a variable electronic dimmer (0 to 100%)
• Includes 2 Edison plugs per channel
