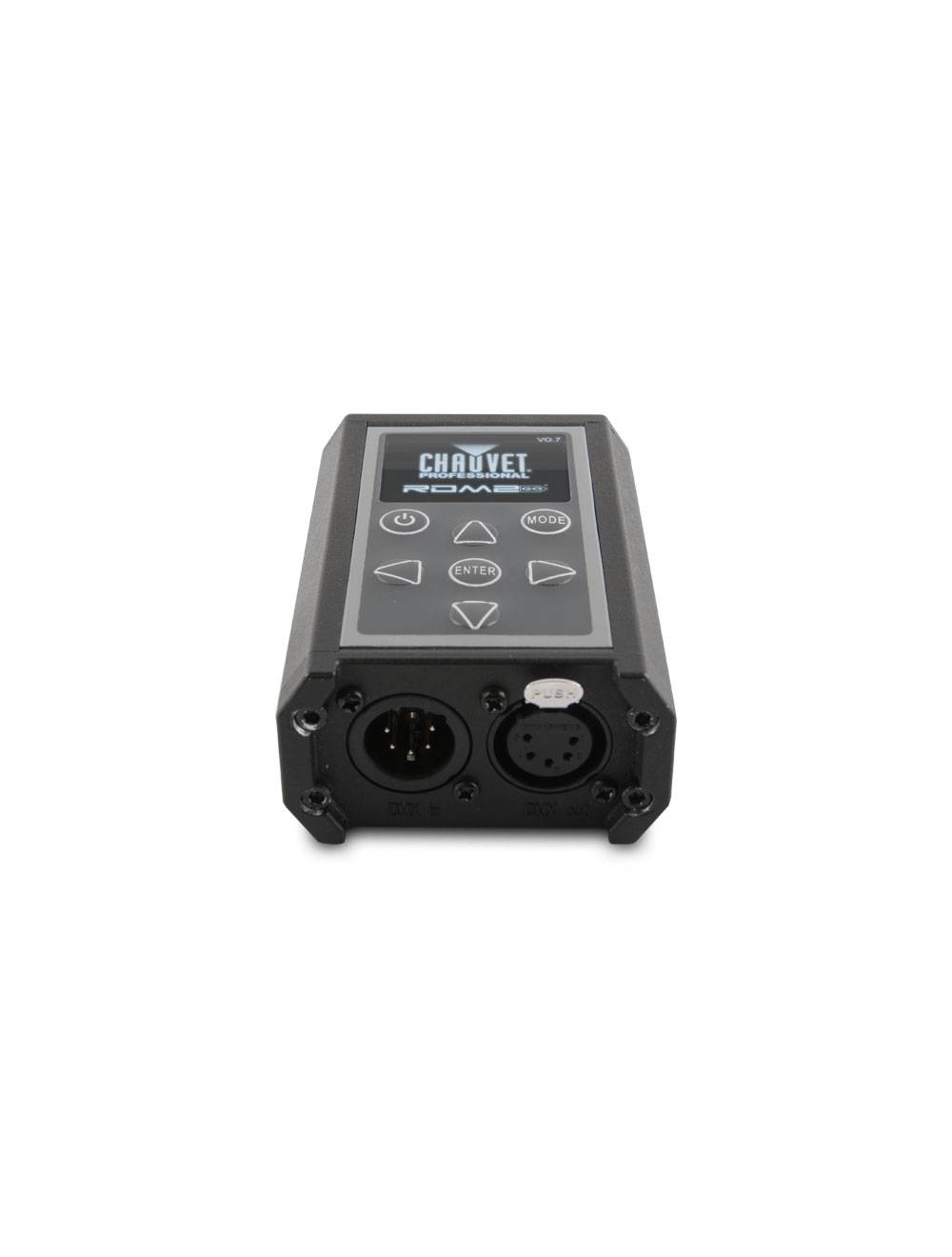

Chauvet RDM2GO 120 Watt 100-230 Volt Fixtures and Systems with DMX

AT A GLANCE
• Handheld tool for managing fixtures and systems with DMX, RDM, and Ilumicode based control
• Easily address, locate and monitor RDM capable fixtures
• Check DMX addressing, cabling, and store/playback basic snapshots
• Address and set personalities of Ilumicode based architectural fixtures
• Comes with connector adaptors, USB charging cord and belt clip pouch

SPECIFICATIONS

DYNAMIC EFFECTS
• Standalone Color Mixing: Yes
• Color Temperature Presets (Ilumicode): Yes
• Dim Modes (Ilumicode): 5
• Customizable Programs: Yes
• Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL
• Dimensions: 13.98" x 11.81" x 8.66"
• Weight: 14.55 lb (6.60 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast

CONNECTIONS
• Power Input: Micro USB-B Male
• Data Connectors: 5-pin XLR
• Cable Length (power): 3 ft (0.91 m)

CONTROL
• Protocol(s): DMX, RDM, Ilumicode
• DMX Channels: 1, 2, 3, 4, 5, 6 or 7
• Modes/Personalities (Ilumicode): 13 personalities (ARC 1, ARC 1+D, ARC2, ARC2+D, ARC3, ARC3+D, ARC FULL, REMOTE, SOLID, SPECIAL1, SPECIAL2, VW, VW+D)

ELECTRICAL
• Power and Current: 18 W, 0.15 A @ 120 V, 60 Hz
• Power and Current: 18 W, 0.09 A @ 208 V, 60 Hz
• Power and Current: 18 W, 0.08 A @ 230 V, 50 Hz

BATTERY
• Battery type: Lithium Ion
• Rechargeable: Yes
• Battery Life: 8 hours
• Battery Power: 3.7 V, 1,200 mAh

CERTIFICATIONS / QUALIFICATIONS
• CE
• IP Rating: IP20, dry location

WHAT'S INCLUDED
• RDM2go
• Carry Pouch
• 2 pc, 3- to 5-pin converters
• 5-pin male to bare wire adaptor
• USB-A Male to Micro USB-B Male (3 ft)

REQUIRED ACCESSORIES
• DMX Cables

OPTIONAL ACCESSORIES
• DMX Cables
