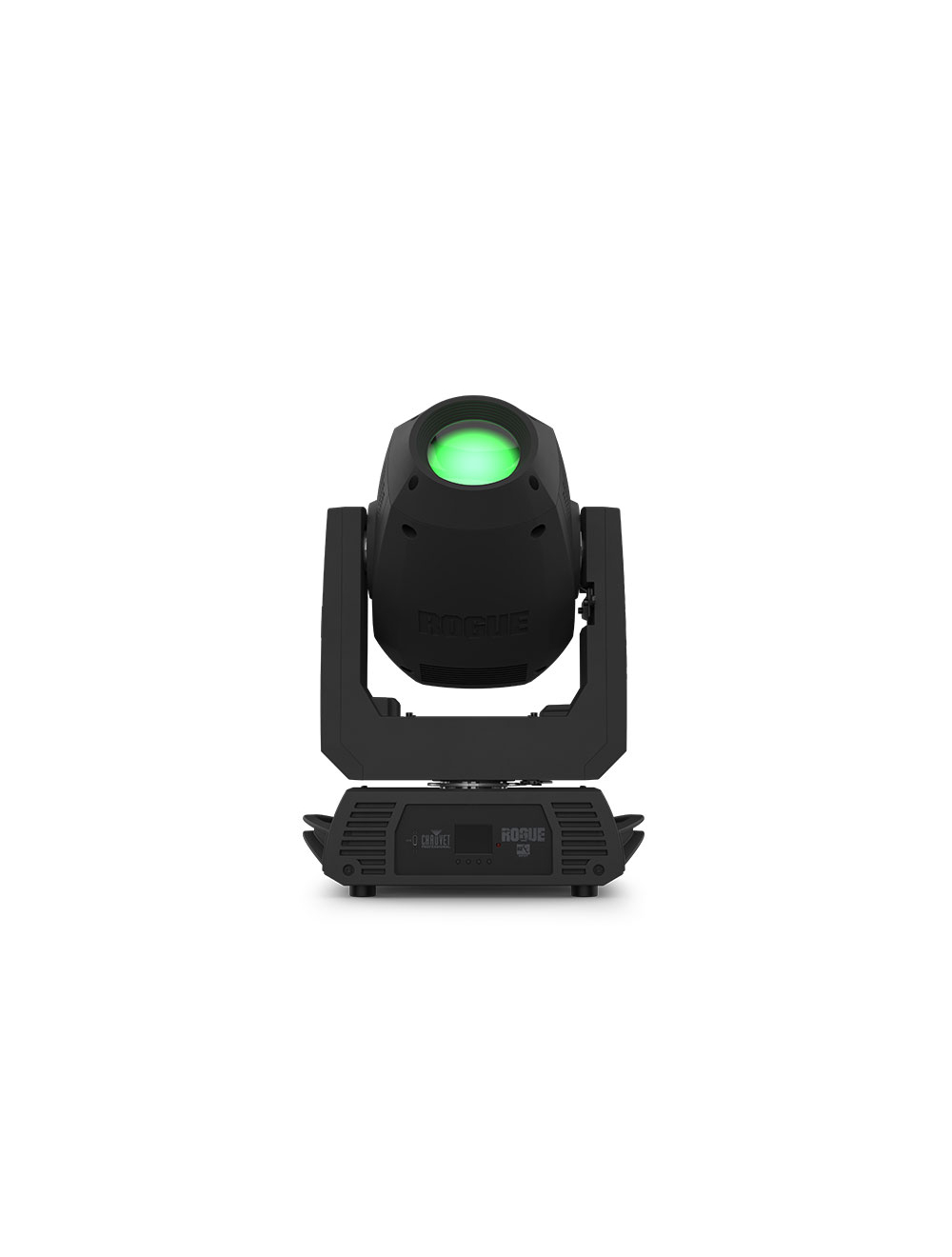

Chauvet Pro ROGUER2ESPOT Rogue R2E Spot 1 LEDs 350 Watt 100-240 Volt Fully Featured Compact with Selectable LED

AT A GLANCE
• A fully featured compact and light weight moving yoke spot fixture with an Intense 350 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, and two color wheels.
• 16-bit dimming of master dimmer for smooth control of fades
• Perfect gobo morphing between gobo wheels
• Two color wheels with 8 colors, split color ability, and continuous variable speed scrolling
• Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel.
• Iris, 3-facet prism, and frost for beam control
• True 1 compatible power input/output connections for power linking.
• 3- and 5-pin DMX input/output connections
• RDM enabled for remote addressing and trouble shooting.
• Selectable LED maximum output to match legacy Rogue R2X Spots
• Selectable PWM settings to maintain flicker-free operation on camera.
• Simple and complex DMX channel profiles for programming versatility

SPECIFICATIONS
OPTICAL
• Light Source: 1 LEDs (CW) 350 W, (5 A), 7057 K, 50,000 hours life expectancy
• Color Temperature (at full): 7057 K
• Front lens diameter: 90mm
• CRI: 70.4
• Beam Angle: 15.9°
• Field Angle: 18.1°
• Cutoff Angle: 20.3°
• Lumens – Source: 24,500
• Lumens – Output: 16,345
• Illuminance (total): 11,345 lux @ 5 m
• Selectable LED Power output: 50-100
• Selectable PWM: 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt.
• Colors (1): 8 + white, split colors, continuous scroll at variable speeds
• Colors (2): 8 + white, split colors, continuous scroll at variable speeds
• Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds.
• Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating) size: 20 mm (outside), 16 mm (image), 1.5 mm (max. thickness)
• Framing Shutters: No
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 3 Facets, motorized, rotating
• Strobe Rate: 0 to 22 Hz
• Standalone Color Mixing: No
• Color Temperature Presets: No
• Move-in-Black: Yes

CONSTRUCTION / PHYSICAL
• Dimensions (single unit): 23.82" x 12.80" x 16.93"
• Weight (single unit): 37.26 lb (16.90 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

CONNECTIONS
• Power Connection: Edison (local) plug to Seetronic PowerKon
• Power Input: Seetronic PowerKon
• Power Output: Seetronic PowerKon
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL
• Control Protocol: DMX, RDM
• DMX Channels: 19 or 22
• Modes/Personalities: 2 personalities (19, 22)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2; 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
• Power and Current: 481 W, 4.05 A @ 120 V, 60 Hz
• Power and Current: 472 W, 2.32 A @ 208 V, 60 Hz
• Power and Current: 469 W, 2.13 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, FCC, UKCA
• IP Rating: IP20, dry location

WHAT'S INCLUDED
• Rogue R2E Spot
• Neutrik powerCON power cord
• 2 140D Omega brackets with mounting hardware

OPTIONAL ACCESSORIES
• Clamps
• Neutrik powerCON cables
• DMX Cables
• Flight Cases
• Flight Cases CP rack
