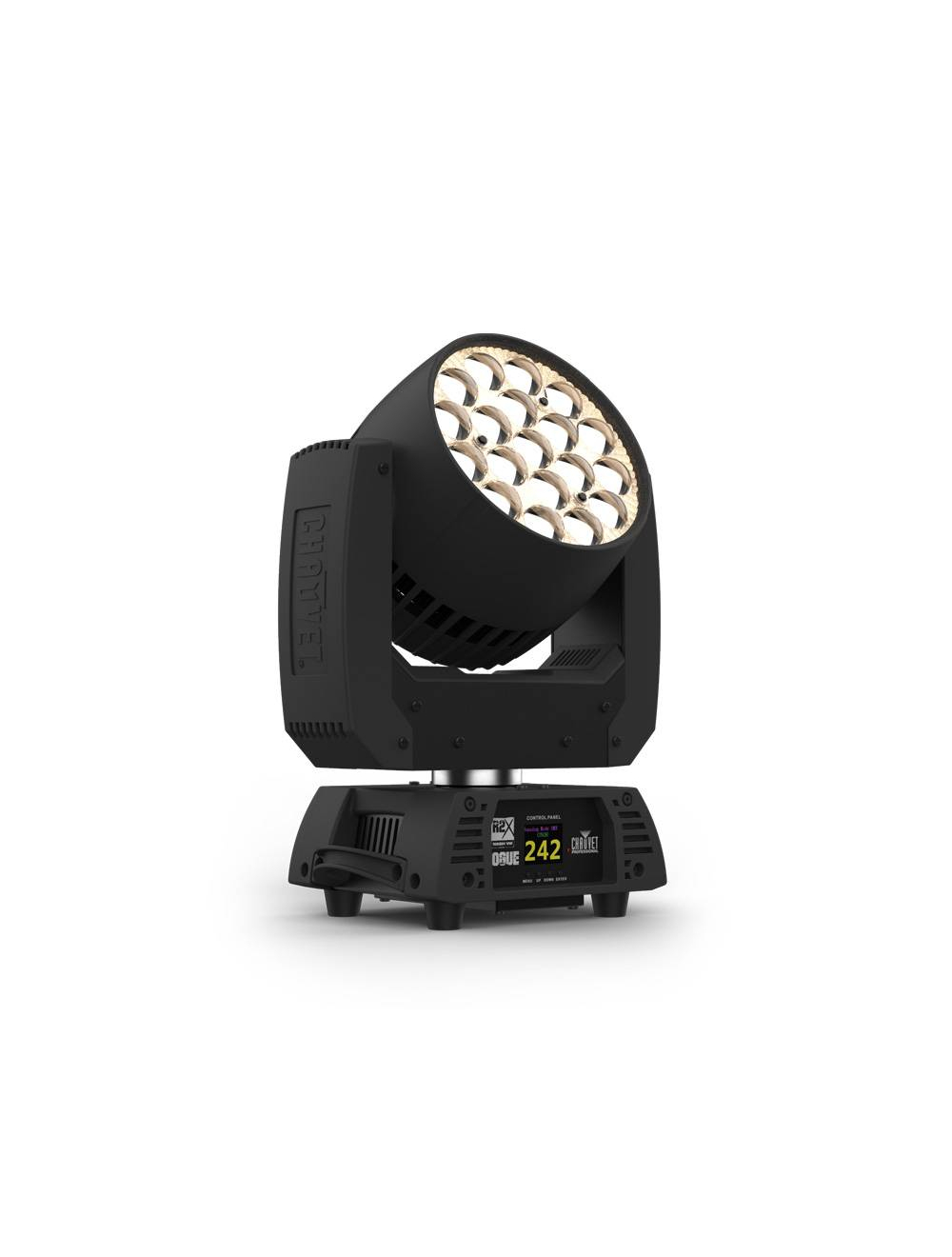

Chauvet Pro ROGUER2XWASHVW Rogue R2X Wash Variable White 19 LEDs 475 Watt 100-240 Volt Fully Featured Variable White LED

AT A GLANCE
• Fully featured variable white LED yoke wash fixture with LED zone control and zoom
• 16-bit dimming of master dimmer as well as individual colors for smooth control of fades 19 variable white LEDs, 25 W each
• 3- and 5-pin DMX input/output connections
• 5 zones of LED control for pixel mapping control
• Unique lens design for excellent blending
• Fast, smooth pan and tilt movement
• Built in color temp presets from 2800 K to 6000 K
• RDM enabled for remote addressing and trouble shooting
• 6 distinct dimming modes for advanced control
• Omega mounting bracket, fits all Rogue and Maverick fixtures
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility

SPECIFICATIONS

OPTICAL
• Light Source: 19 LEDs (CW and WW) 25 W, (1.5 A), 50,000 hours life expectancy
• Color Temperature (range): 2600 to 6075 K
• Beam Angle: 8° to 34.4°
• Field Angle: 11.3° to 50.4°
• Cutoff Angle: 17.1° to 63°
• Zoom Range: 8.2° to 63°
• Lumens – Source: 10,700 lm
• Lumens – Output: 10,918 lm
• Illuminance (11.3°): 14,499 lux @ 5 m
• Illuminance (50.4°): 1,266 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS
• Pan and Tilt: 540°/230°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Temperature Mixing: Yes
• Color Temperature Presets: Yes
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No

CONSTRUCTION / PHYSICAL
• Dimensions: 18.90" x 10.83" x 14.96"
• Weight: 27.34 lb (12.40 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

CONNECTIONS
• Power Connection: Edison (Local) plug to Neutrik® powerCON®
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL
• Control Protocol: DMX, RDM
• DMX Channels: 15, 18, 23, 34 or 36
• Modes/Personalities: 7 personalities (15CH, 18CH, 23CH, 23CH MS, 34CH, 36CH or 36CH MS)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
• Power and Current: 336 W, 2.825 A @ 120 V, 60 Hz
• Power and Current: 335 W, 1.620 A @ 208 V, 60 Hz
• Power and Current: 339 W, 1.467 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, FCC, UKCA
• IP Rating: IP20, dry location

WHAT'S INCLUDED
• Rogue R2X Wash VW
• Neutrik® powerCON® power cord
• Omega bracket with mounting hardware

OPTIONAL ACCESSORIES
• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-08
• Neutrik® powerCON® cables
• DMX Cables
• Flight Case: CP6CASER2W
• UPLOAD 08 software uploader
