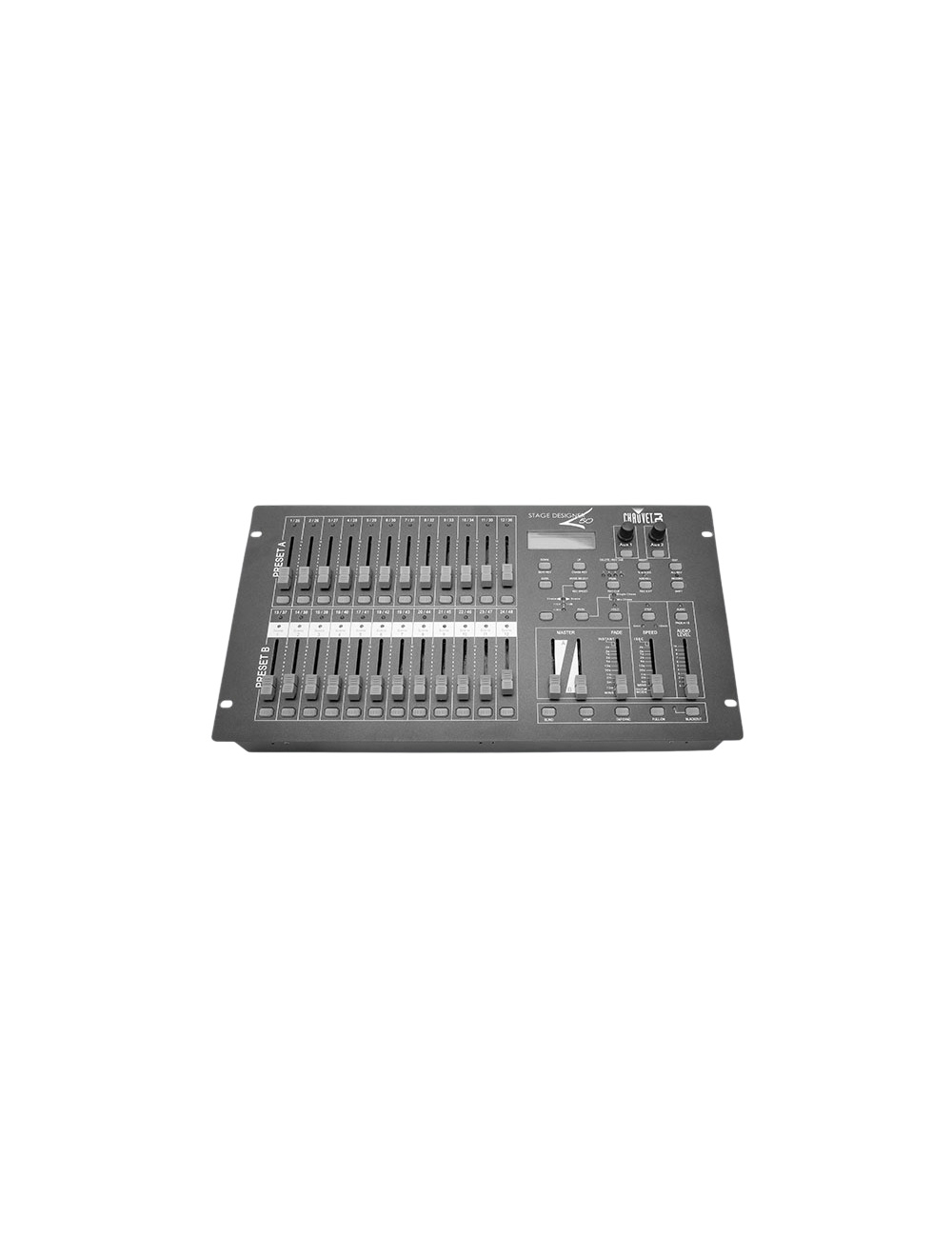

Chauvet STAGEDESIGNER50 Stage Designer 50 100-240 Volt Theater-Style DMX Controller

The Stage Designer 50 takes the size of a 24-channel dimming console and the functionality of a 48-channel console and combines the two into one powerful dimming unit. The Stage Designer 50 has up to 8 pages with 12 scenes each and 96,000 programmable steps.

$319.99

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

STAGEDESIGNER50

Details

Highlights
• Theater-style, DMX controller designed to control LED Par fixtures as well as relay and dimmer packs
• Saves desk space by squeezing 48 channels into a 24-channel console
• Achieve smooth transitioning between live stage looks with built-in, two-scene cross faders
• Increase programming and playback versatility with two programmable auxiliaries
• Simplify programming by using DMX channel patching to reassign channels
• Increase flexibility with built-in MIDI support for remote dimming and scene triggering
• Coordinate your light shows to music using the direct audio input connector or built-in microphone
• Ability to stack scenes for simultaneous or sequential playback

Specifications
• DMX Channels: 48
• DMX Connectors: 3- and 5-pin XLR
• Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
• Weight: 24.71 lb (11.21 kg)
• Size: 20.87" x 12.99" x 11.81"
• Approvals: CE
• Rackmount: 6U

WHAT'S INCLUDED
• Power cord
• User manual
• Warranty card
• External power supply

Specifications

More Information
Part Number	STAGEDESIGNER50
Manufacturer	Chauvet DJ
Dimensions	20.87" x 12.99" x 11.81"
Certifications
Specification Sheet	Product Data Sheet
Maximum Operating Temperature	104°F
Minimum Operating Temperature	-4°F
Input Voltage	100V-240V
Lead Time	In Stock - Quick Ship
UPC Code	781462202637
