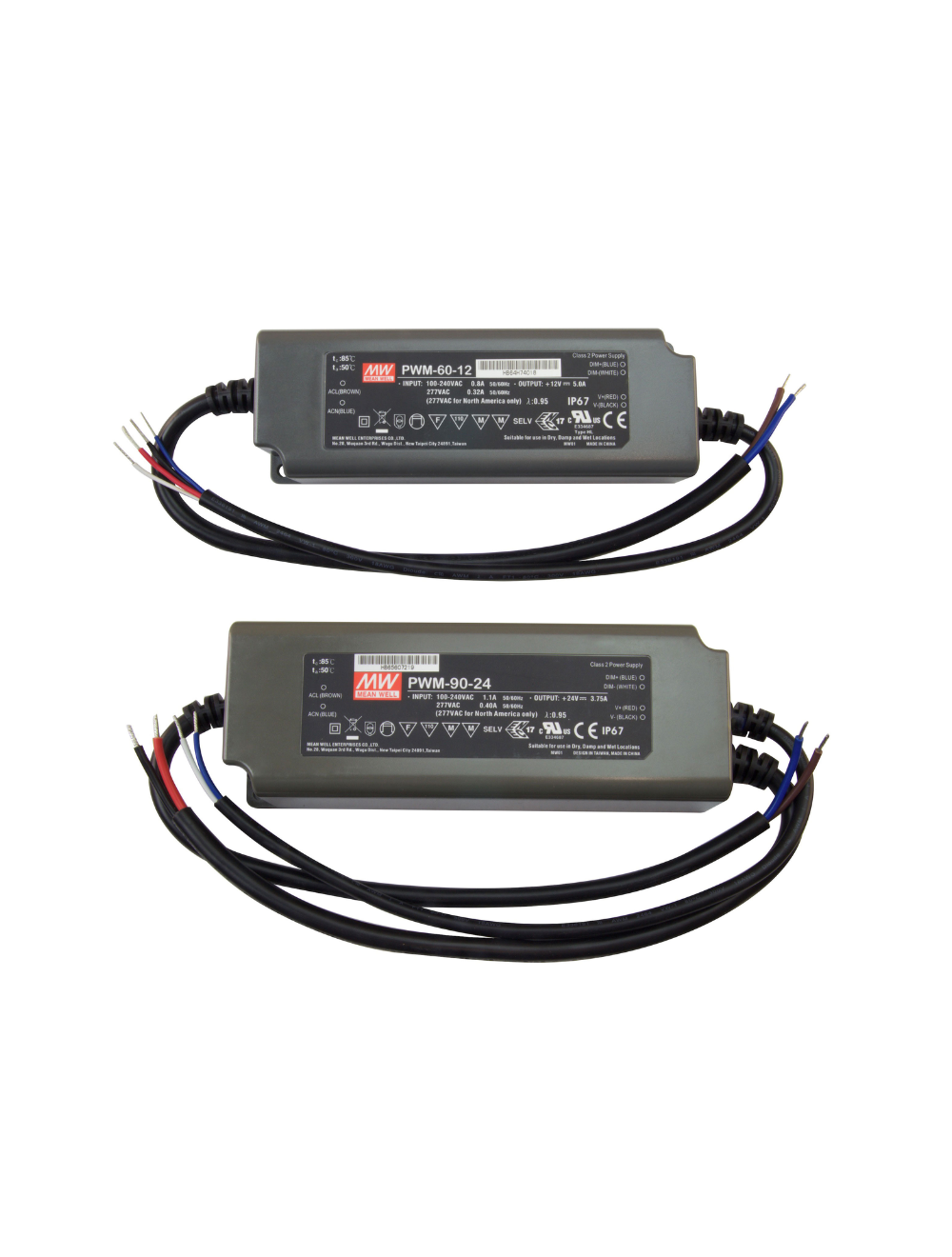

DiodeLED DI-DM-MW Commercial Grade 0-10V Dimmable Drivers, Output Voltage and Wattage Selectable, Driver Option

Features and Benefits

• Dry- Or Wet-locations
• 120~277VAC Input
• Flicker-free dimming range of 100-10%
• Short circuit, over current, over voltage, over temperature protections
• Plastic housing with Class II design, fault ground protection
• Class 2 power unit
• Fanless design, cooling by free air convection
• No load power consumption <0.15W
• UL Recognized Component (driver only)
• UL Listed (LO-PRO® Junction Box & Driver Combo)
• 5-year warranty

Description

Commercial-Grade 0-10V Dimmable LED Drivers are essential components commercial building applications and retrofits of low voltage LED fixtures in 0-10V control systems. This low-voltage LED power supply is ideal for commercial applications designed with 0-10V systems, are rated for wet and dry locations, and offer a smooth, continuous dimming. These drivers are engineered to work with 0-10V dimming controls for superior dimming performance.

COMPATIBILITY: See the Installation Guide for a complete list of compatible dimmers

12VDC and 24VDC Commercial Grade 0-10V Dimmable LED Drivers are essential components for retrofitting fluorescent tubes to low voltage LED fixtures in 0-10V control systems. These drivers are ideal for commercial applications designed with 0-10V systems, are rated for wet and dry locations, and offer a smooth, continuous dimming range from 100-10% brightness. These drivers are engineered to work with 0-10V dimming controls for superior dimming performance. These drivers are IP67 rated (driver only) and are suitable for install in dry, damp, or wet locations.

Product Codes

DI-DM-MW12V40W-0-10V
DI-DM-MW12V40W-0-10V-LPS
DI-DM-MW12V40W-0-10V-LPS3R
DI-DM-MW12V60W-0-10V
DI-DM-MW12V60W-0-10V-LPS
DI-DM-MW12V60W-0-10V-LPS3R
DI-DM-MW24V60W-0-10V
DI-DM-MW24V60W-0-10V-LPS
DI-DM-MW24V60W-0-10V-LPS3R
DI-DM-MW24V90W-0-10V
DI-DM-MW24V90W-0-10V-LPL
DI-DM-MW24V90W-0-10V-LPS3R

Specifications

More Information
Part Number	DI-DM-MW
Manufacturer	Diode LED
Watts	40 Watts, 60 Watts, 90 Watts
Input Voltage	120V, 277V
Output Voltage	12V, 24V
Minimum Operating Temperature	40°F
Maximum Operating Temperature	185°F
Dimmable	Yes
Dimensions	5.9 x 2.1 x 1.4 in. \| 11.25 x 3.75 x 1.90 in.
Certifications	, , ,
Warranty	5 Year
Lead Time	Ships in 2-3 Business Days
UPC Code	848333011603
