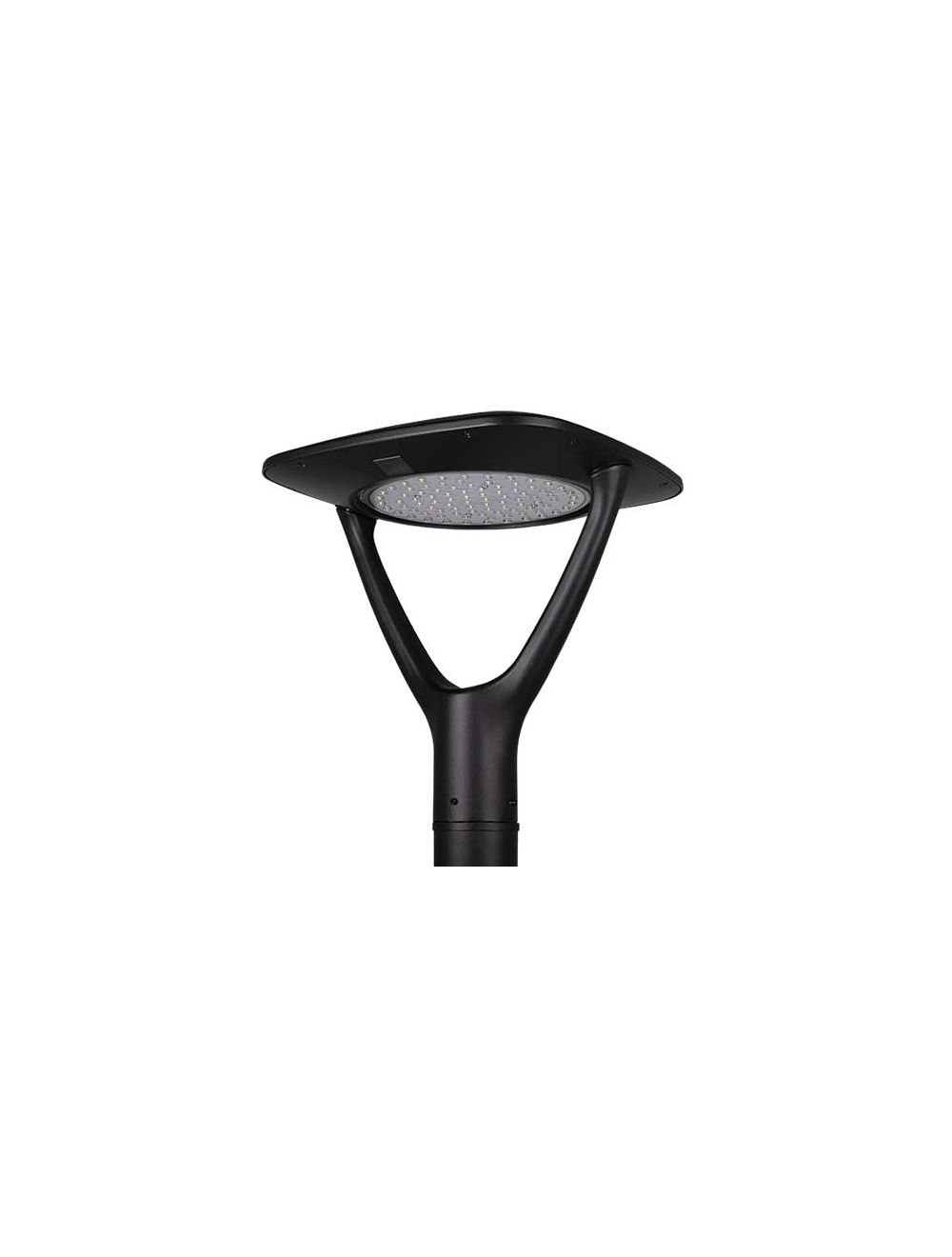

DuraGuard AFS32Q DuraLED Sculptor II Dual Arm Open Square Post Top Black Finish
The DuraGuard AFS31Q & AFS32Q Sculptor II Architectural Open Square Post Tops combine sleek design with powerful, energy-efficient illumination, replacing HID systems up to 400W for bright, uniform lighting in parking areas, walkways, and streets.
* Accessories such as Custom Finishes, Photocells, Emergency Battery Backup and Surge Protection are available upon request. Please inquire for more information. Fees Apply. *
Specifications and Features:
Housing: Die Cast and Sand Cast Aluminum Housing, Integral Heat Sinking. Photocell Adaptable.
Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750 IP66 Sealed LED Compartment.
Finish: Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens: Clear UV-Stabilized Polycarbonate Vandal-Resistant Array Lens with Integral Optics or SoftLED LumaLens Opal UV-Stabilized Polycarbonate Vandal-Resistant Lens. Gasketed to Seal LED Array.
Mounting: Accommodates "P3" 27⁄8′′ O.D. x 3′′ Tenons
Wattage:
37w Array: 37w, System: 41w; (70-150w HID Equivalent)
65w Array: 65.3w, System: 72w; (150-250w HID Equivalent)
100w Array: 100w, System: 111w; (150-250w HID Equivalent)
140w Array: 139.9w, System: 156w; (250-400w HID Equivalent)
Driver: Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
| Part Number | AFS32Q |
|---|---|
| Manufacturer | DuraGuard |
| Watts | 37 Watts, 65 Watts, 100 Watts, 140 Watts |
| Lumens | Variable, See Spec Sheet |
| Color Temperature | 3000 Kelvin, 4000 Kelvin, 5000 Kelvin |
| Beam Angle | Variable |
| Dimmable | No |
| Input Voltage | 120V-277V, 347-480V |
| Rated Life | 139,000 hours+ |
| Minimum Operating Temperature | -40 ° F |
| Maximum Operating Temperature | 122 ° F |
| Dimensions | 18" L x 18" W x 18.75" H |
| Warranty | 5 Year |
| Certifications |  |
| Lead Time | Build Item 7-10 Days |
