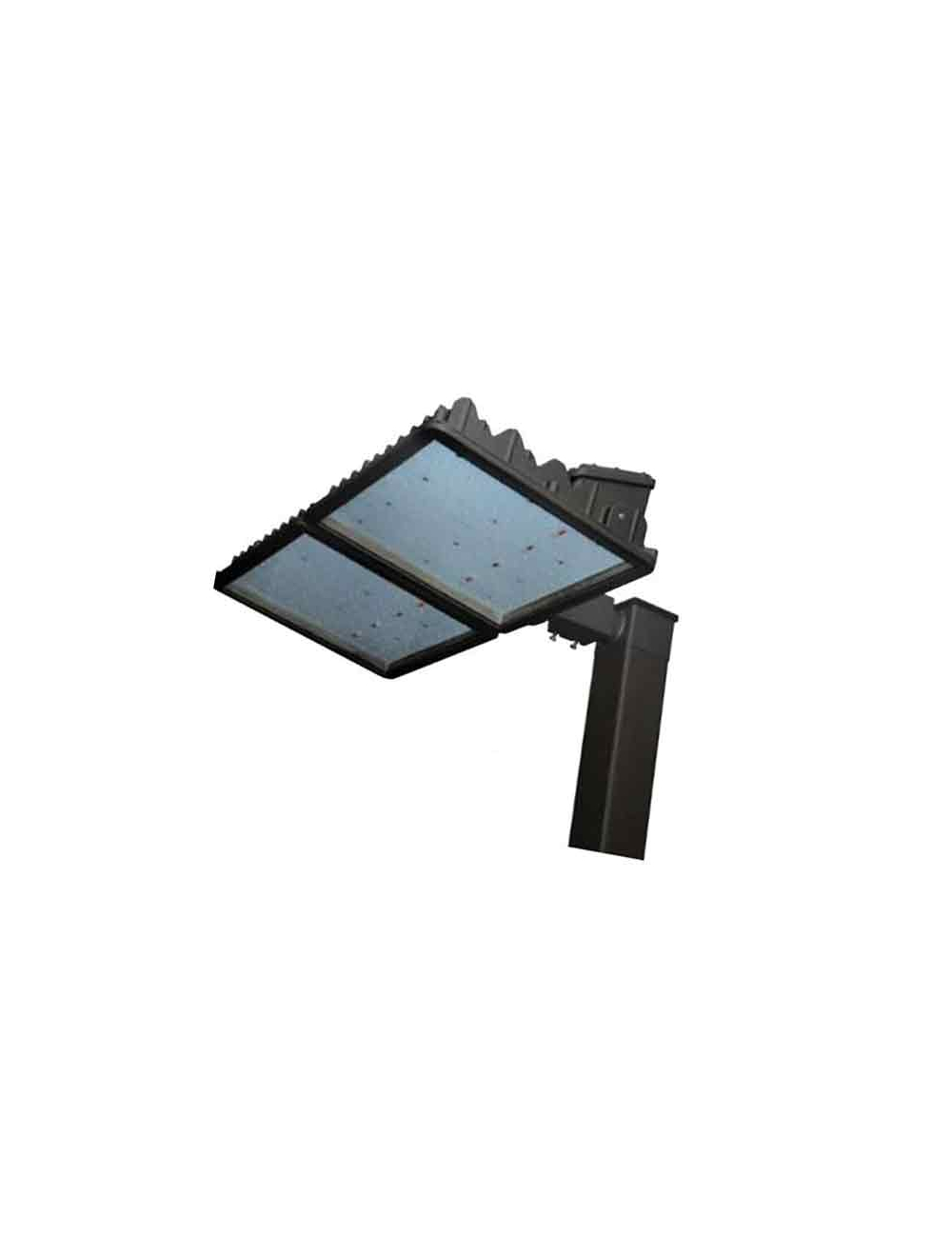

DuraGuard AL55Q Series DuraLED MegaAL LED Area/Flood Light Bronze Finish
The DuraGuard AL55Q MegaAL luminaire is available with a wide choice of optical distributions designed to replace HID lighting systems of 1000w to 1500w MH or HPS.
* Accessories such as Custom Finishes, Photocells, Emergency Battery Backup and Surge Protection are available upon request. Please inquire for more information. Fees Apply. *
Housing: Heavy-duty Die Cast Aluminum Housing & Front Frame, Integral Heat Sinking, Driver Compartment. Photocell Adaptable.
Listing & Ratings: ETL: Listed for Wet Locations, ANSI/UL 1598, 8750 IP66 Sealed LED Compartment.
Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens: Tempered Clear Flat Glass Lens.
Mounting Options: Mount with Adjustable Slipfitter. (Factory Installed)
DuraLED LED: Aluminum Boards
Wattage:
348w Array: 348w, System: 385.7w; (1000-1500w HID Equivalent)
524w Array: 524w, System: 568w; (1000-1500w HID Equivalent)
Driver: Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
| Part Number | AL35Q |
|---|---|
| Manufacturer | DuraGuard |
| Lumens | Variable, See Spec Sheet |
| Color Temperature | 4000 Kelvin, 5000 Kelvin |
| Beam Angle | Variable |
| Dimmable | No |
| Input Voltage | 120V-277V, 347-480V |
| Rated Life | 200,000 hours + |
| Minimum Operating Temperature | -40°F |
| Maximum Operating Temperature | 122°F |
| Dimensions | 33" x 16.5" x 3" |
| Warranty | 5 Year |
| Certifications |     |
| Lead Time | Build Item 7-10 Days |
