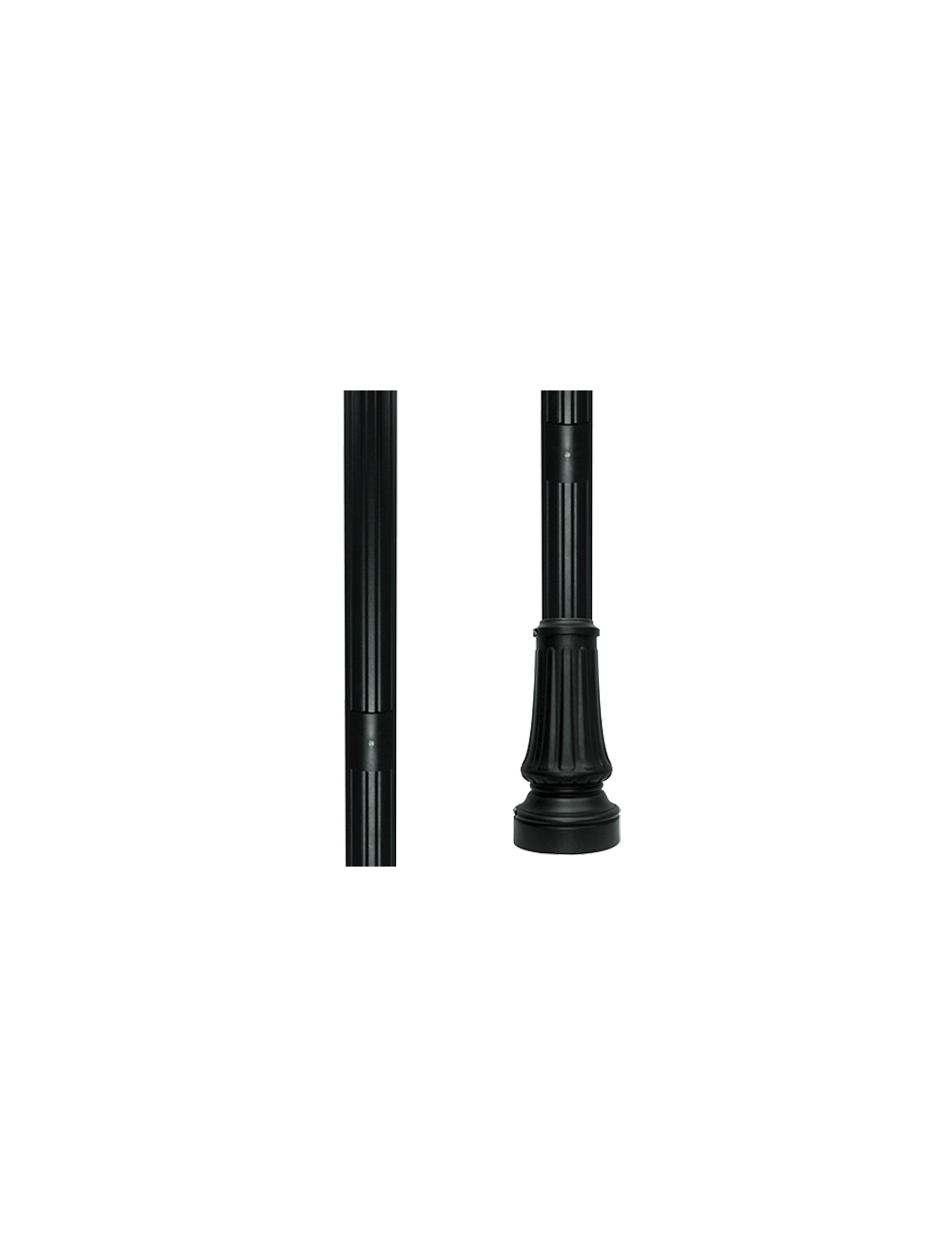

Duraguard Round or Fluted Aluminum Pole PARS 16' Anchor Base

The DuraGuard Fluted and Smooth Round Aluminum poles are built from extruded fluted or smooth aluminum tubing and are offered as direct burial or with a high-strength die cast aluminum base and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Mounting heights to 10-16 feet for PARF fluted and 10-20 feet for PARS smooth can be used based on selected luminaire application.

The DuraGuard Fluted and Smooth Round Aluminum poles are built from extruded fluted or smooth aluminum tubing and are offered as direct burial or with a high-strength die cast aluminum base and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, parks and pedestrian pathways and gathering spaces. Mounting heights to 10-16 feet for PARF fluted and 10-20 feet for PARS smooth can be used based on selected luminaire application.

Specifications and Features:

Pole Specifications: The Pole Shaft is of Uniform Wall Thickness and is One-Piece Extruded 6063 Aluminum Alloy With T6 Temper, Available in 4˝ Diameter. Anchor Base is Die Cast From 356 Alloy Aluminum and is Heat Treated to a T6 Temper After Welding. Wall Thickness: 5mm (.196˝).

Finish: Textured Architectural Black Powdercoat Finish, Baked to Ensure Maximum Paint Adhesion, Hardness and Durability.

Anchor Bolts: Anchor Bolts are Included, Sized Based on Pole Data Charts for the Selected Pole Size.

Hand Hole: Die Cast Aluminum Reinforced Hand Hole and Cover with Ground Screw.

Base Cover: Poles are Provided with a Two-Piece Formed Aluminum Base Cover that is Easily Assembled and Fitted Over Pole Base.

Pole Length: Poles are Available in Standard Lengths as Shown in the Order Matrix. Poles can be Custom Cut to Order. Consult Factory.

Mounting Options: Available Side Drilled for 1 side, 2@180 Degrees, 3@90 Degrees or 4@90 Degrees, Includes UV-Stabilized Polycarbonate Top Cover (4" Only). Poles May Also Be Ordered With 2⅜˝ OD or 2⅞˝ OD Tenons for Use With Post Top Decorative Luminaires, Flood/ Area Slip Fitter Fixtures, or Any of a Wide Variety of Pole Top Mounting Accessories. Stainless Steel Hardware.
