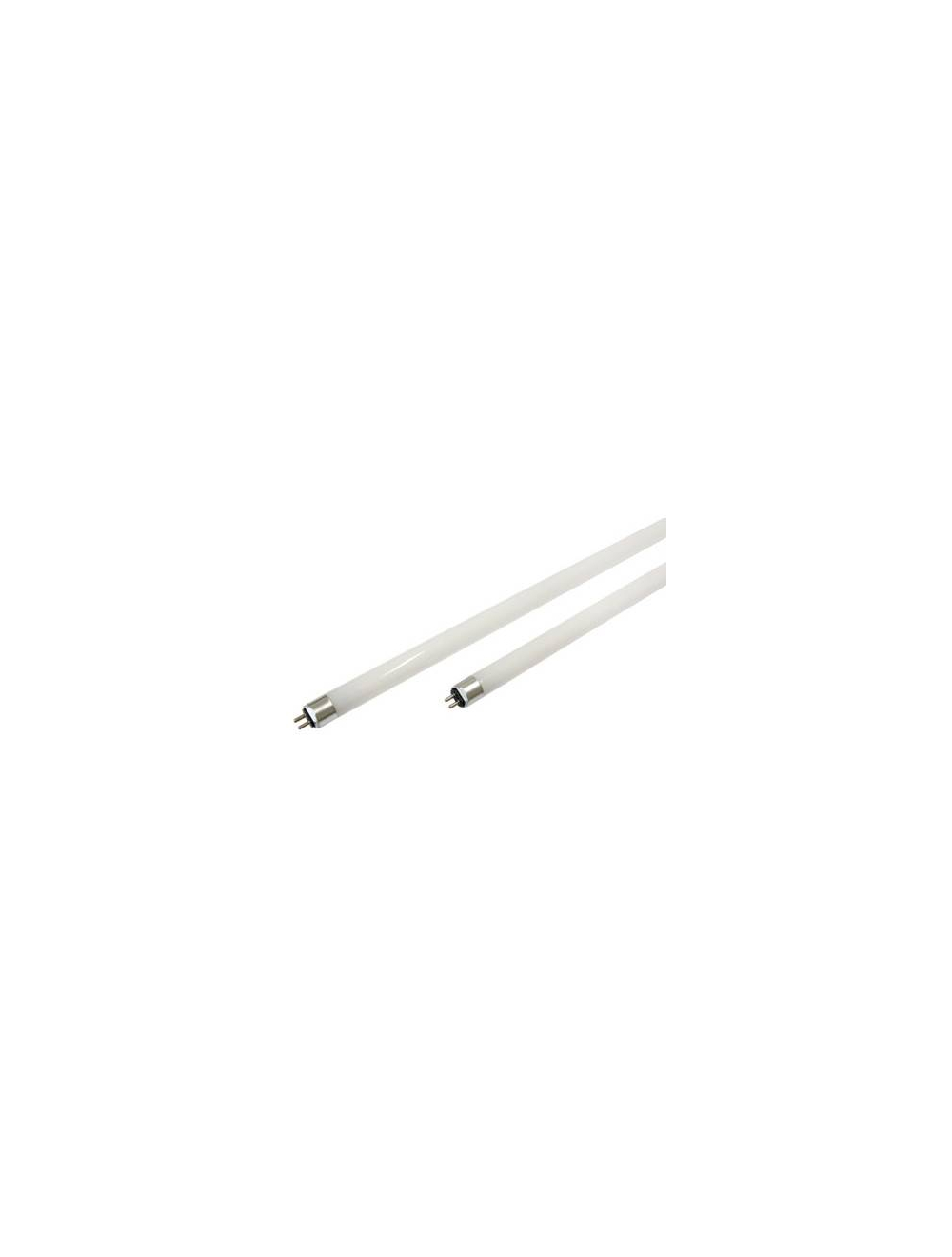

Eiko 09556 LED12.5WT5HE/46/835-G7DR GLASS DIRECT FIT T5 4FT 12.5W-1700LM 3500K 80CRI

DESCRIPTION
LED T5 Direct Fit Replacement Lamps directly replace fluorescent T5 lamps at a fraction of the energy cost.

Review all installation instructions and confirm use of a compatible ballast before installing EiKO Direct Fit Linear Lamps.

$13.01

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

LED12.5WT5HE/46/835-G7DR

Eiko 09556 LED12.5WT5HE/46/835-G7DR GLASS DIRECT FIT T5 4FT 12.5W-1700LM 3500K 80CRI is available to buy in increments of 25

Details

FEATURES
• Directly replaces T5 fluorescent lamps
• No socket changes; for use with non-shunted socketed fixtures
• Operates on most popular electronic programmed start fluorescent T5 ballasts
• No rewiring or modifications of any kind required • Frosted glass lens reduces visual glare
• R9>20
• Compatible with select electronic ballasts
• Does not operate on fluorescent battery backup
• Does not operate on magnetic ballasts
• Does not operate on T8 or T12 ballasts
• Does not operate on dimming ballasts
• Use of an incompatible ballast, poor socket connection or other improper installation can result in reduced lamp lifetime, arcing or localized overheating

WARRANTY
• 5 year limited warranty; see eiko.com for warranty details

APPLICATIONS
• Highbays
• Troffers
• Industrial Strips
• Cove Lighting
• Warehouses
• Stairwells
• Cold Storage

Specifications

More Information
Part Number	LED12.5WT5HE/46/835-G7DR
Manufacturer	Eiko
Watts	12 Watts
Color Temperature	3500 Kelvin
CRI	80
Lumens	1700
Lumens Per Watt	136
Beam Angle	Not Specified
Rated Life	50,000 hours +
Input Voltage	120V-277V
Dimmable	No
Minimum Operating Temperature	-20° C (-4° F)
Maximum Operating Temperature	45° C (113° F)
Dimensions	45.8" x 0.63"
Lead Time	In Stock - Quick Ship
Certifications	, ,
UPC Code	031293095565
Warranty	5 Year
