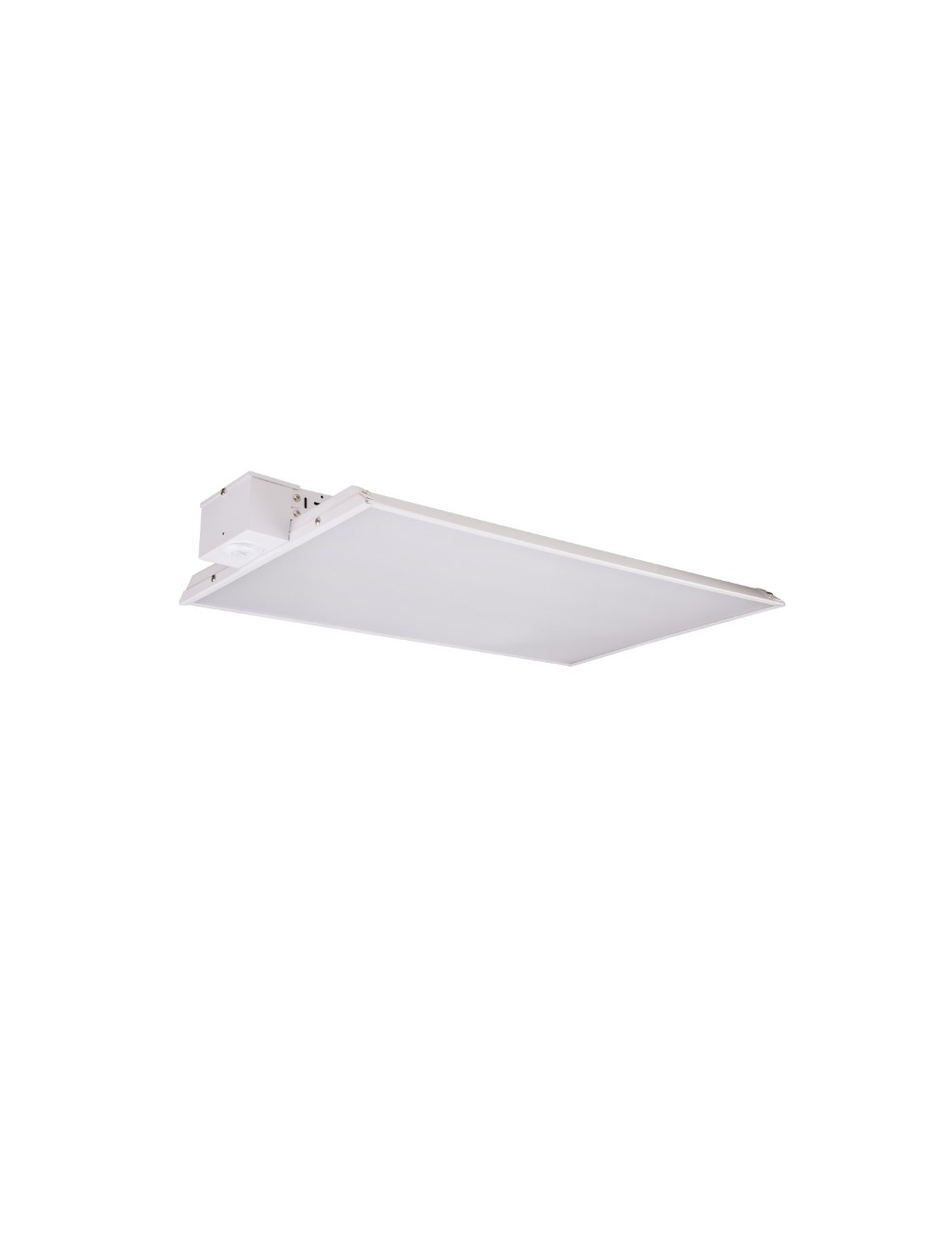

Eiko 15129 LHS1-PS160-8FCCT-HDIM 2ft Linear High Bay 160/130/110/90W 40/50K 0-10V Dimming 120-277V

The LHS1 fixture series combines traditional single lens design with contemporary power and color select technology, offering versatility for most high bay applications. With easy-to-deploy controls and convenient modification options, EiKO provides a reliable, adaptable solution that meets building codes and custom requirements for any high bay project.

$121.43

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

LHS1-PS160-8FCCT-HDIM

Details

• Power & Color Select Technology for simplified SKU management and field customization.
• PowerSET – 4 Power settings
• FieldCCeT – 2 CCT settings (4000/5000K)
• Full spectrum input voltage coverage:
• 120-347V and 277-480V options
• Wide range of lumen packages (7,500 – 66,000 lumens) provide solutions for mounting heights up to 60’.
• Diffused polycarbonate lens for reduced glare (beam angle 950)
• Heavy gauge steel housing and impact resistant lens for robust and reliable installation.

Specifications

More Information
Part Number	LHS1-PS160-8FCCT-HDIM
Manufacturer	Eiko
Watts	90 Watts, 110 Watts, 130 Watts, 160 Watts
Lumens	24000/19500/16500/13500
CRI	80+
Color Temperature	4000 Kelvin, 5000 Kelvin
Rated Life	50,000 hours +
IP_Rating	IP20
Input Voltage	120-340V
Dimmable	No
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	50°C
Dimensions	24" x 15"
Certifications	, ,
Warranty	5 Year
UPC Code	031293151292
Lead Time	Ships in 2-3 Business Days
