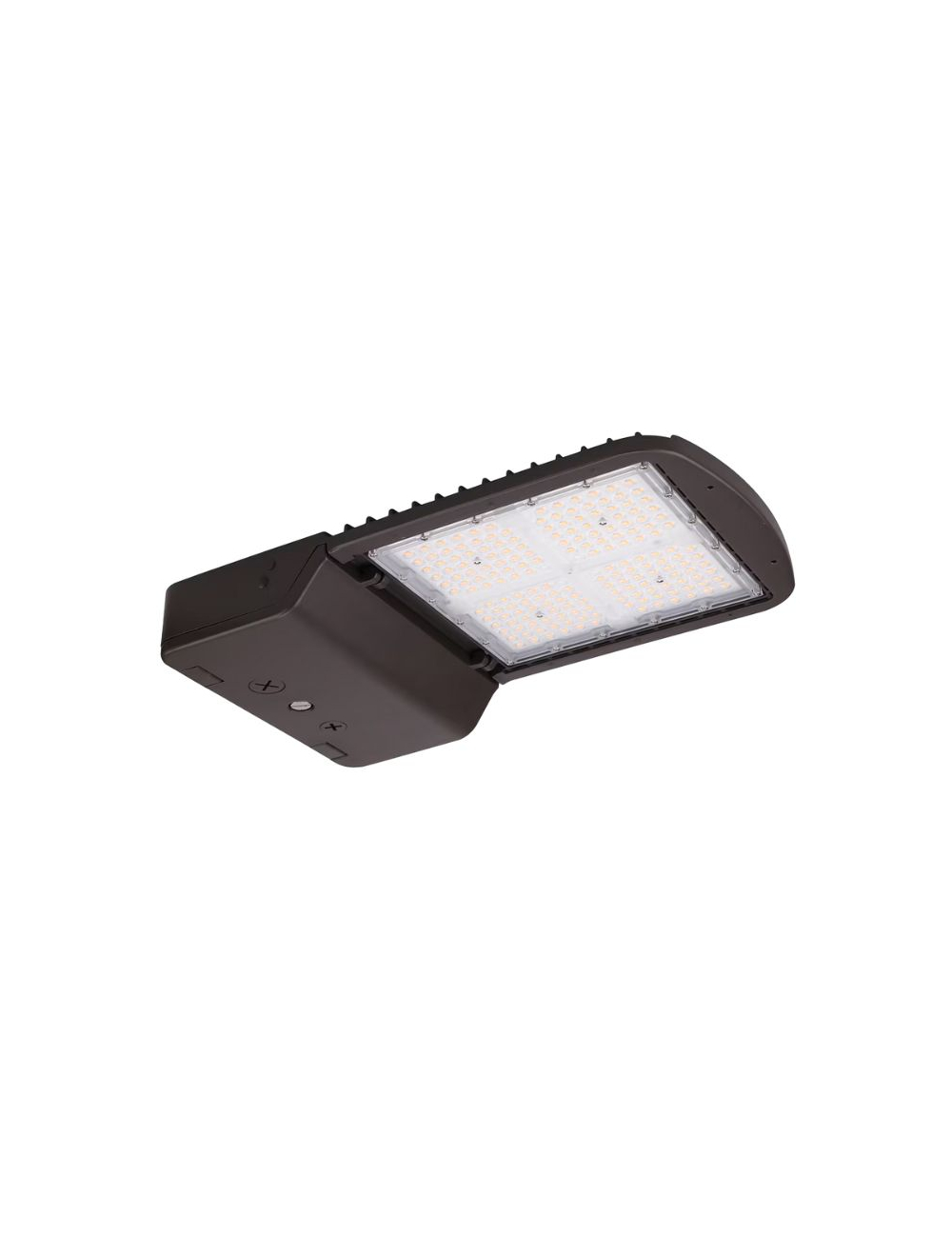

Eiko AAL1-150-50T3-U LED Area Light 150 Watt 5000K Type 3 Lens 120-277 Volt Dimmable Bronze Finish 13585

HIGHLIGHTS
• Architectural thin profile used for area light applications
• Controls Ready makes adding controls quick and easy. Includes screw-in receptacle for Standalone sensors or Networked Lighting Controls
• NEMA 7-pin photocell receptacle available by factory modification
• T2, T3, T4, T5 lens optics available
• Multiple mounting options available for versatile use (mounts sold separately)
• Hinged toolless access junction box makes installation and maintenance easier
• Includes pre-installed 3.3ft (1m) power cord
• One: 1/2" side knockout
• PowerSet feature allows for multiple lumen stops out of the box
• FieldCCeT features provide multiple color temperature settings in one fixture

CERTIFICATIONS
• UL listed for US & Canada
• RoHS Compliant
• FCC Compliant
• ICES-005 Compliant
• IP65 Rated
• IK08
• 3G Rated per ANSI C136.31
• DesignLights Consortium Premium Qualified - meets the requirements for the highest DLC qualification for efficacy and lumen maintenance

PERFORMANCE
• High Efficacy, up to 140 lm/W
• Available in fixed wattage models: 150, 200, 240, 300W and PowerSet models: power-selectable 100/80/60W, 150/130/100W, 300/240/200W, 450/400/350W
• Available in single CCT models: 3000, 4000, 5000K or FieldCCeT models: field-selectable 30/40/5000K
• CRI: >80
• Distribution Types: T2, T3, T4, T5
• Estimated L70: 100,000 Hours

ELECTRICAL
• Input voltage: 120-277V or 277-480V
• 0-10V dimming, dim-to-off
• 12VDC Aux, 100mA max
• Surge Protection: 10kV included, 20kV (optional)
• Power factor: >0.9
• THD: <20%

THERMAL
• -40°F to 122°F (-40°C to 50°C) ambient operating temperature
• Ambient operating temperature with sensor (see selected sensor datasheet)

CONSTRUCTION
• Bronze powder-coated die-cast aluminum housing
• Impact and UV-resistant polycarbonate lens

WARRANTY
• 5-Year limited warranty available online. Please contact your EiKO sales representative for additional details.

APPLICATIONS
• Parking Areas
• Automotive Dealerships
• Roadways
• Campuses
• Streetscapes
• Airports
• Area security lighting
• Building facades
• Signs
• Entryways

KEY FEATURES

CONTROLS READY
Easily add controls anytime without the need for additional wiring

NEMA PHOTOCELL OPTIONAL
Factory-installed NEMA 7-pin photocell receptacle paired with 3-pin photocell (on/off ) or 5-pin photocell (dimming) allows for enhanced security and additional energy savings.

TOOLLESS JUNCTION BOX
Hinged toolless junction box makes installation and maintenance easier

LENS SWAP COMBINED W/ ENVIRONMENTAL PROTECTION
T2, T3, T4, T5 (T2 & T4 available via factory mod). IP65, 3G, IK08 rated, powder-coated die-cast bronze aluminum housing; impact and UV resistant polycarbonate lens
