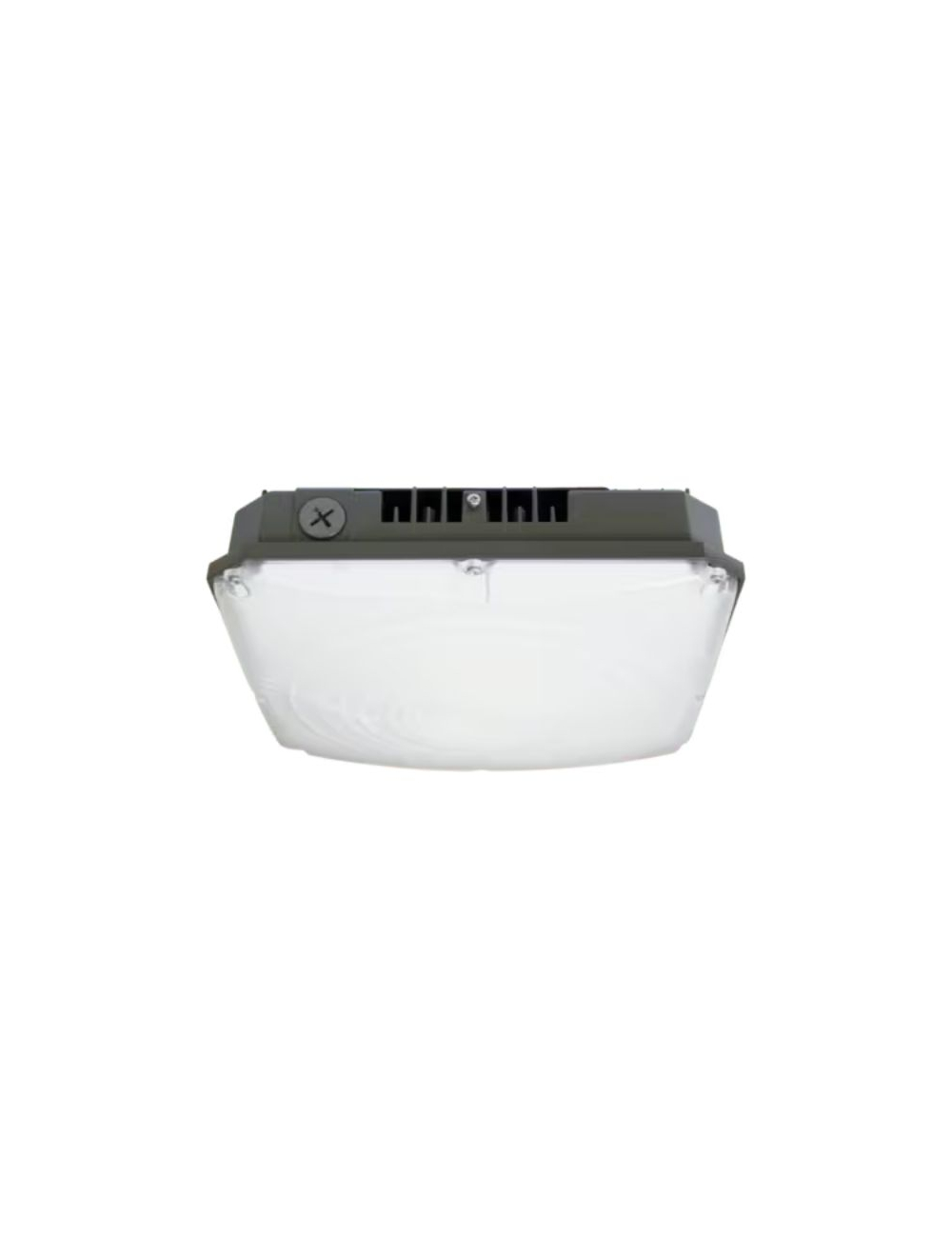

Eiko CF4-704-1 Canopy Fixture 70 Watt 4000K 120-277 Volt Dimmable 313547

The CF4-Series Dimmable LED Canopy Fixture is the ultra-thin, energy-efficient solution for illuminating commercial and industrial environments. Designed with a dropped diffuser lens, the fixture provides maximum lateral light distribution while minimizing glare. As a DLC-listed parking garage luminaire, it is perfect for use in parking structures, storage areas, shopping area walkways, and entryways.

$95.86

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

CF4-704-1

Details

HIGHLIGHTS
• Up to 131 lumen/W
• <80 CRI
• Aluminum housing with polycarbonate lens
• Designed to work in -40°F / -40°C weather
• IP65
• Wet Location rated
• Projected lifetime L70 of >50,000 hours
• Used in parking lots, corporate parks, and retail settings
• Backed by a worry-free 5-year warranty

PRODUCT FEATURES

CONSTRUCTION
• 3/4" NPT
• Die-cast aluminum
• Polycarbonate lens
• Dark grey housing color

INSTALLATION
• Surface Mount Pendant Mount

ELECTRICAL
• "-1" models designed to operate between 120-277V
• "-2" models designed to operate between 277-480V
• Power factor >0.9

LISTINGS & RATINGS
• cULus
• Wet Location
• IP65
• Listed for use in-40°C to 40°C / -40°F to 104°F

RATED LIFE & WARRANTY
• LED system: >50,000 hours at L70
• 5-year warranty (visit premiseled.com/warranty/)

Specifications

More Information
Part Number	CF4-704-1
Manufacturer	Eiko
Watts	70 Watts
Lumens	8,451
Lumens Per Watt	129
CRI	80
Color Temperature	4000 Kelvin
Input Voltage	120V-277V
Rated Life	50,000 hours +
Minimum Operating Temperature	-40℉
Maximum Operating Temperature	104℉
Dimensions	10.75" x 10.75" x 3.38"
Certifications	, ,
Warranty	5 Year
Lead Time	In Stock - Quick Ship
