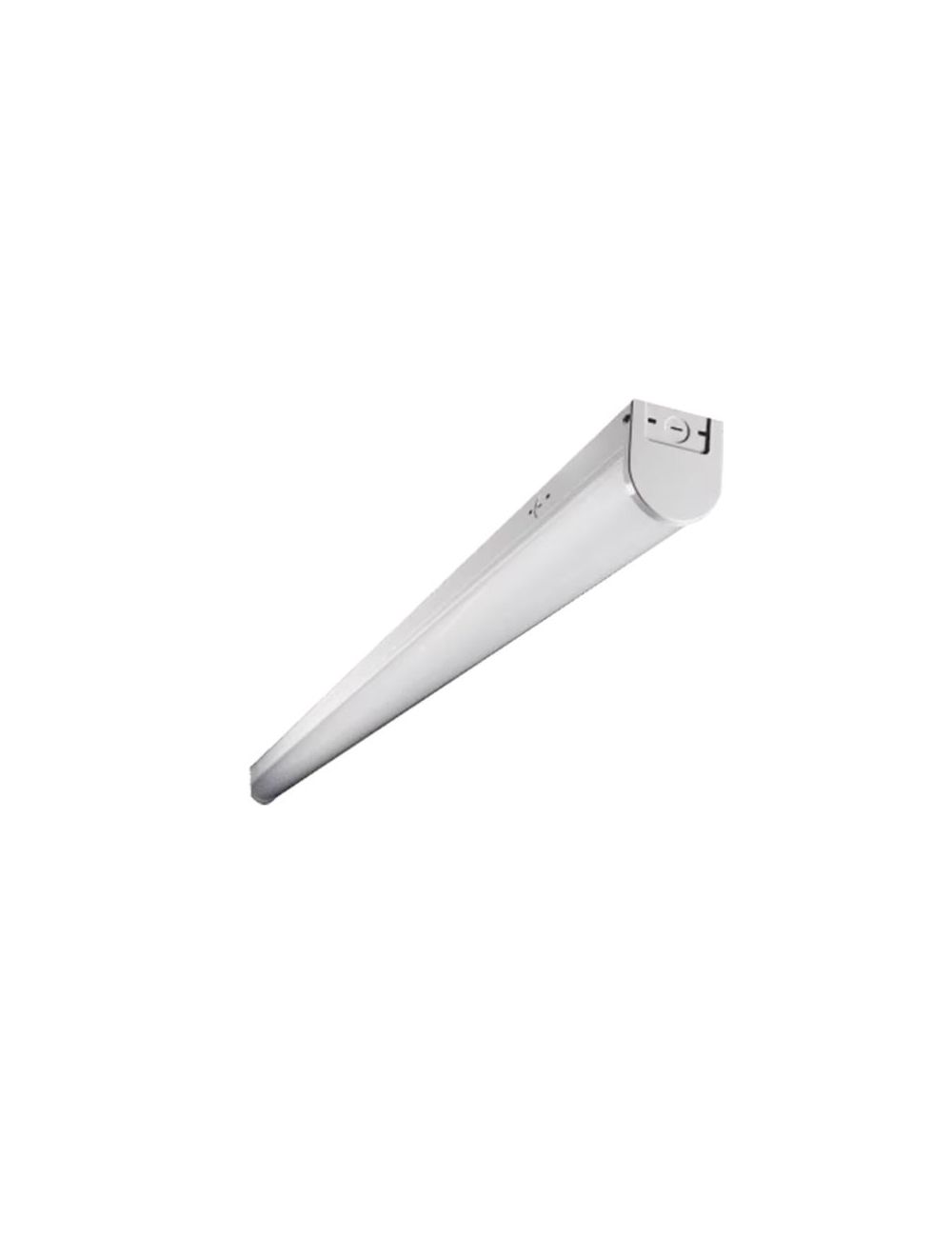

Eiko CS3-8645-3 Commercial Strip 8' 64 Watt 5000K 100-347 Volt Dimmable 313699

The CS3-Series LED Commercial Strip fixture is designed with a polycarbonate diffuser that provides impact resistance and even, low-glare light. Combine this with powerful, high-output LED chips, and these fixtures meet today’s stringent efficacy standards and bring your projects maximum energy savings.

$99.24

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

CS3-8645-3

Details

HIGHLIGHTS
• Up to 138 lm/W
• 80+ CRI
• High-strength design resists bowing when hung
• Polycarbonate diffuser provides impact resistance while minimizing glare and visual fatigue
• 0-10V dimming
• Ready for ceiling/wall flush mounting or suspension via v-hook (included) and chain/cable (not included)
• Available in 100-347VAC
• Designed to work in -40°C/-40°F environments
• Backed by a worry-free 5-year warranty
• Fixture-mounted PIR or microwave motion sensors are available for increased energy savings. Leviton PIR motion sensors are also available

PRODUCT FEATURES

CONSTRUCTION
• Powder-coated white iron housing
• Polycarbonate frosted lens
• Multiple knockouts make installation flexible and easy

INSTALLATION
• Surface mount, Chain mount

ELECTRICAL
• LED drivers have up to 2kV inherent surge protection
• 0-10V dimming, dim-to-off (0.1%)

LISTINGS & RATINGS
• DLC Standard or Premium
• cETLus
• Damp Location
• IP20
• Listed for use in: -30°C to 50°C (-22°F to 122°F)

RATED LIFE & WARRANTY
• LED system: >50,000 hours at L70
• 5-year warranty (visit premiseled.com/warranty/)

Specifications

More Information
Part Number	CS3-8645-3
Manufacturer	Eiko
Watts	64 Watts
Lumens	8,394
CRI	80
Color Temperature	5000 Kelvin
Input Voltage	100V-347V
Rated Life	50,000 hours +
IP_Rating	IP20
Minimum Operating Temperature	-22℉
Maximum Operating Temperature	122℉
Dimensions	96" x 3.25" x 3.81"
Length	96
Width	3
Height	4
Warranty	5 Year
Certifications	, ,
Lead Time	In Stock - Quick Ship
