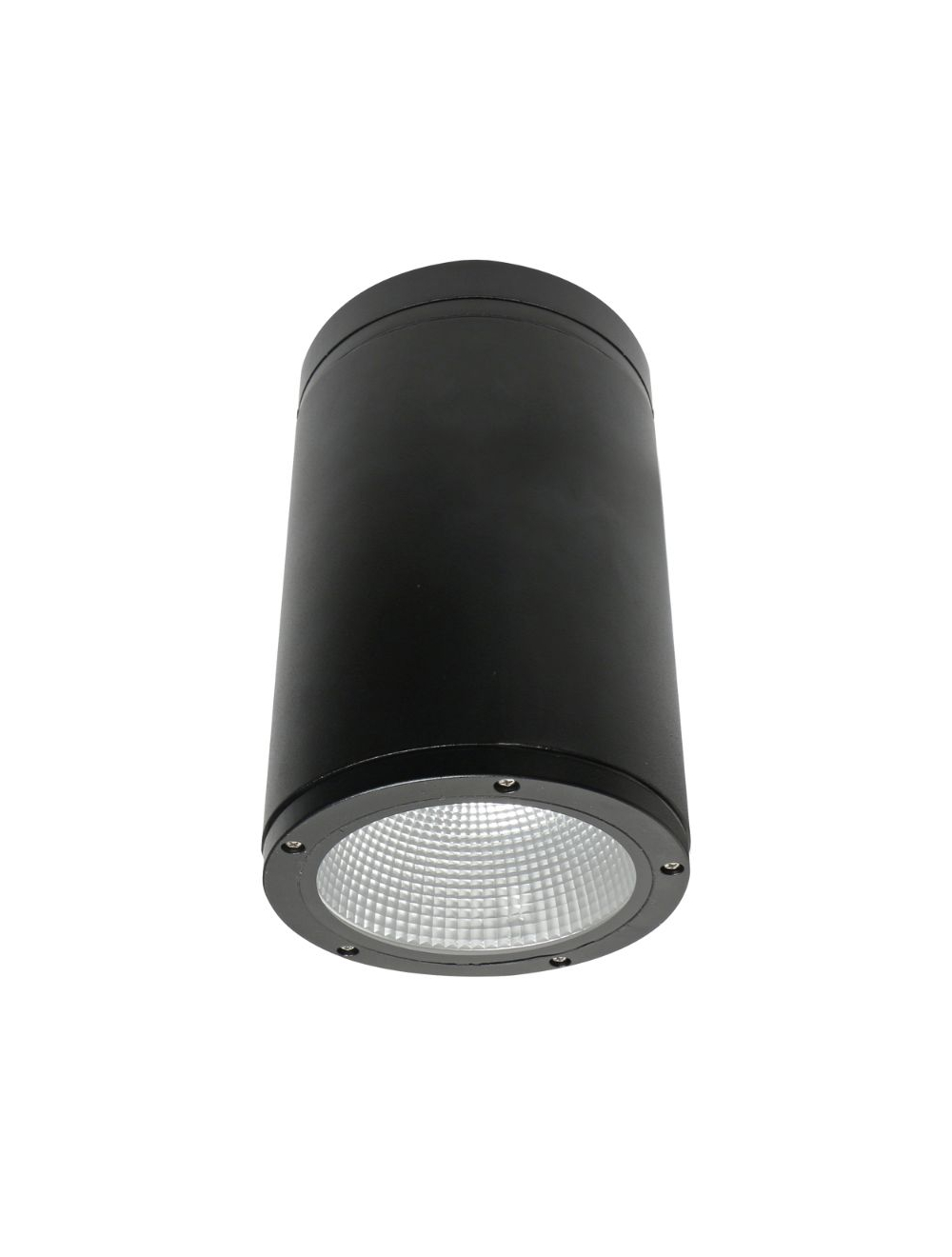

Eiko CSMWP61-270-30W-830-U-DIM-BZ Cylinder Surface Mount Westport 6" 30 Watt 3000K 120-277 Volt Bronze Finish 11420

The EIKO Westport Cylinder Wall Sconce and Surface Mount series offer versatile and efficient lighting solutions for both wet and dry locations. With a switchable array design, these fixtures allow for flexible lighting configurations, directing light either upwards, downwards, or both.

$70.97

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

CSMWP61-270-30W-830-U-DIM-BZ

Details

FEATURES
• Provides comfortable diffused light
• Switchable array to conveniently funnel light up, down, or both up and down simultaneously (CWSP models only)
• Integrated photocell ON/OFF switch to easily disable photo control based on installation needs (CWSP & CWSW 6" models only)

CERTIFICATIONS
• Wall Sconce: UL Listed for wet locations
• Surface mount: UL Listed for dry locations

PERFORMANCE
• Rated lifetime L70 > 50,000 hours
• 30/40/5000K CCT
• CRI: >80; >90
• Up to 90 LPW
• Beam angles, 50°/ 80° depending on size

ELECTRICAL
• Input voltage: 120-277VAC 50/60Hz
• Power Factor: >0.9
• THD: <20%
• 2kV surge protection

THERMAL
• -22°F to 122°F (-30°C to 50°C)

CONSTRUCTION
• Aluminum construction
• Black or bronze finish

WARRANTY
• 5-Year limited warranty available online. Contact your EiKO sales rep for additional details.

APPLICATIONS
• Residential
• Hospitality
• Multi Family
• Retail

Specifications

More Information
Part Number	CSMWP61-270-30W-830-U-DIM-BZ
Manufacturer	Eiko
Watts	30 Watts
Input Voltage	120V-277V
Minimum Operating Temperature	-22℉
Maximum Operating Temperature	122℉
Dimensions	9.4" x 6"
Color Temperature	3000 Kelvin
Dimmable	Yes
CRI	80
Width	6
Height	9
Lumens	2700
Lead Time	In Stock - Quick Ship
Warranty	5 Year
Rated Life	50,000 hours +
UPC Code	031293114204
Certifications	,
