FEATURES
• Self-diagnostic circuitry performs annual/monthly testing automatically, reducing maintenance costs
• Auto-adjusting Class 2 25-50VDC output accommodates a wide range of forward voltage LED designs
• Constant power design provides constant light output for 90 minutes
• UL Listed for field installation
• Two different form factors allow for greater flexibility when adding to fixtures
LISTINGS
• UL Listed for dry/damp locations
• Meets CEC Title 20 (California Energy Commission) efficiency standards
PERFORMANCE
• 90 minutes of emergency operating power at the rated wattage
• Operates an LED array load at 8W, 15W, 20W, or 30W with constant power at a rated output voltage of 25-50V
ELECTRICAL SPECIFICATIONS
• Input voltage: 120-277V 50/60Hz; 100-347V
• Input power: 7W (max)
• Output voltage: 25-50VDC
• Power Factor: >0.85
• Operating Temp: 0° - 50° C
• Emergency operation: ≥90 mins
• Recharge: 24 hrs
THERMAL
• 32°F to 122°F (0°C to 50°C) operating temperature
CONSTRUCTION
• Long-life, maintenance-free, high-temperature, recyclable lithium battery
WARRANTY
• 5 year limited warranty; see eiko.com for warranty details
APPLICATIONS
• Emergency power

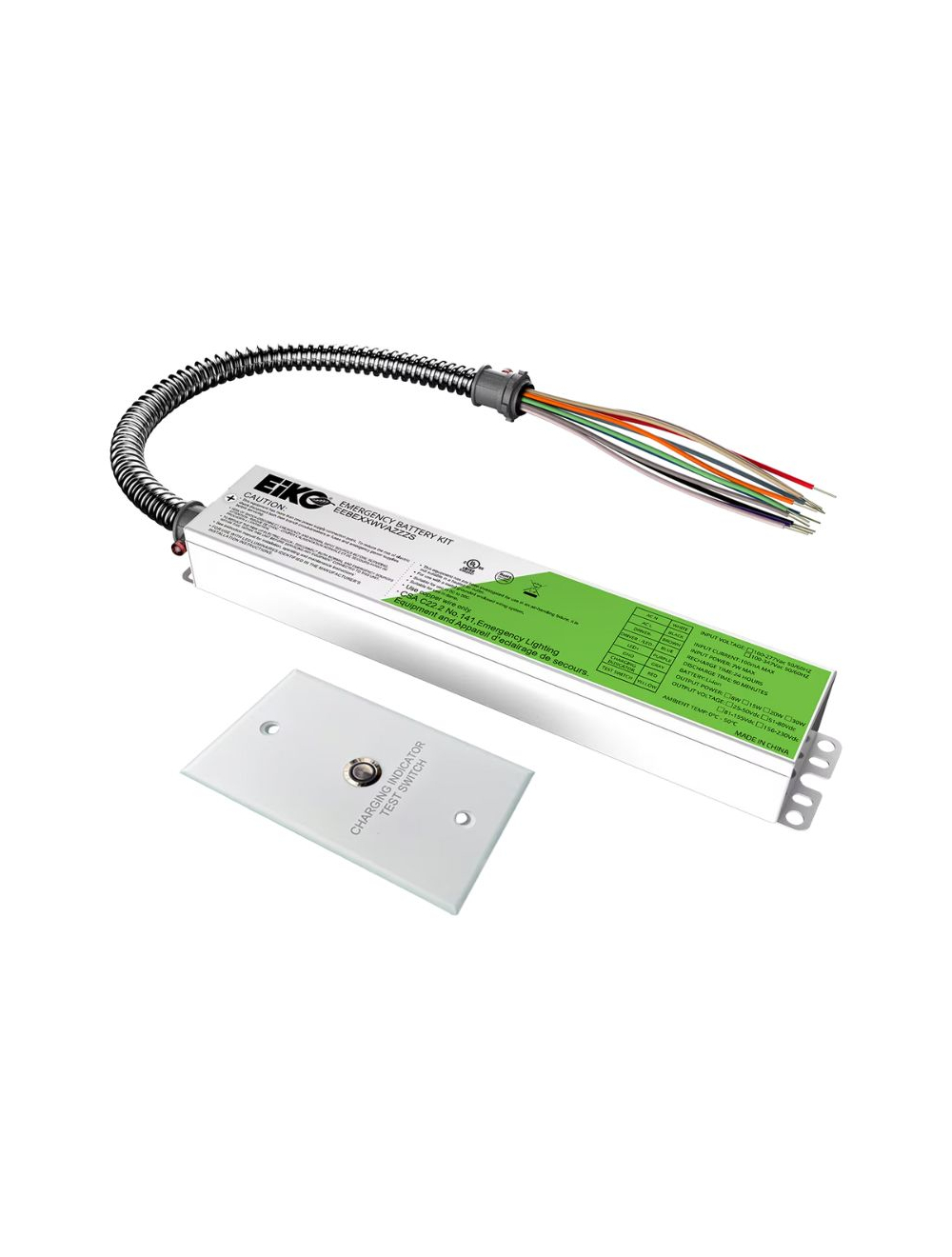

| Part Number | EEBE30WUA050S |
|---|---|
| Manufacturer | Eiko |
| Watts | 30 Watts |
| Input Voltage | 120V-277V |
| Dimensions | 12.32" x 2.32" x 1.54" |
| Warranty | 5 Year |
| Certifications | ![]() ![]() |
| Minimum Operating Temperature | 32℉ |
| Maximum Operating Temperature | 122℉ |
| UPC Code | 031293109200 |
| Lead Time | In Stock - Quick Ship |
