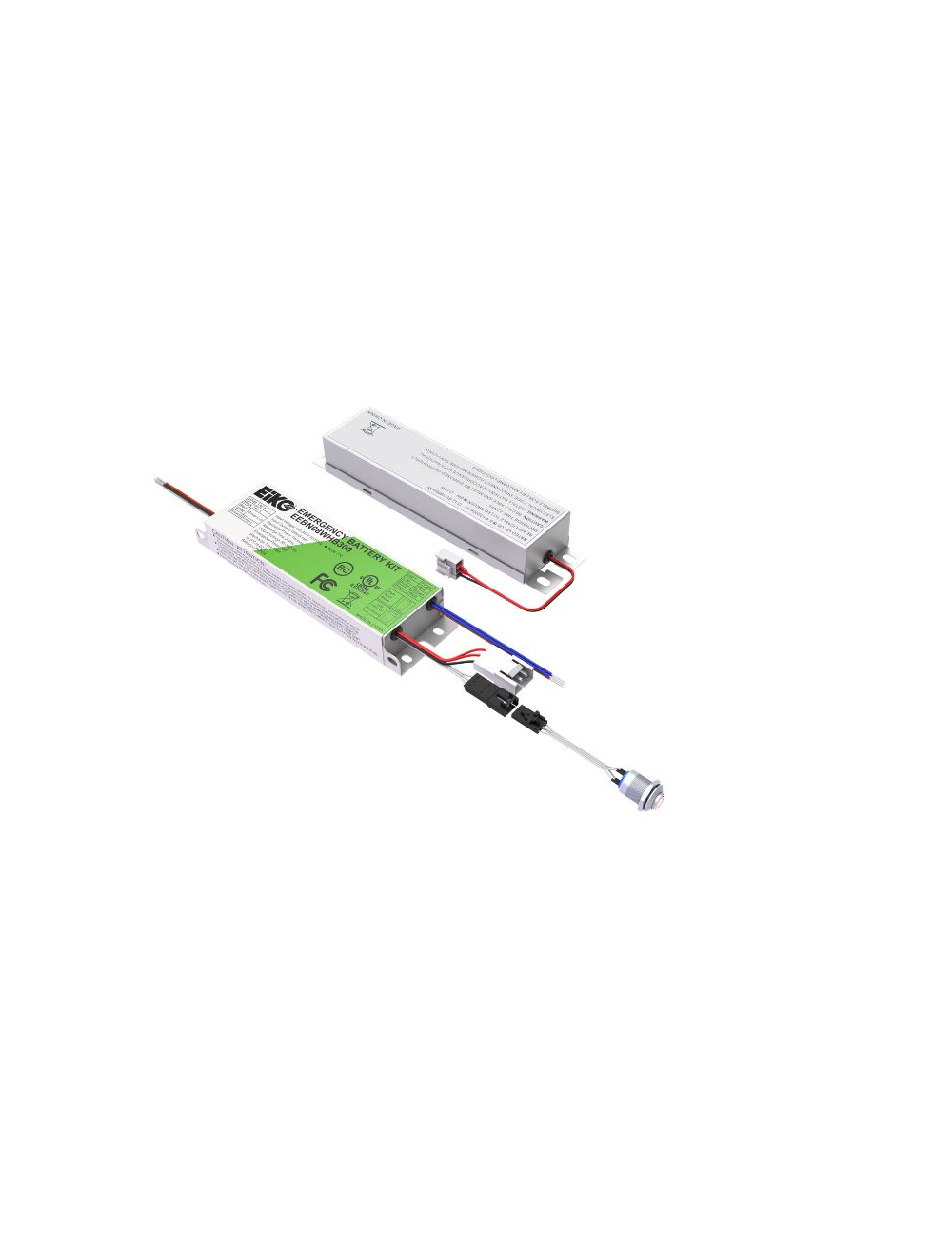

Eiko EEBN08WHB300 EiKO Emergency Battery Kit Internal 8W 120-347VAC 50-300VDC 14654

HIGHLIGHTS
 • Provides power for emergency lighting needs
 • Specifically designed for applications that require a high temp battery kit that will
      perform up to 140°F/60°C
 • To be used in enclosed and gasketed fixtures (no external option available)
 • Constant power design provides constant light output for 90 minutes with no fluctuation
      in light output
 • Self-diagnostic testing: 30 seconds monthly, 90 minutes annually
 • Includes IP65 rated illuminated test button
 • Compatible with many IP65 EiKO fixtures (See below for compatibility and refer to
      individual fixture Spec Sheets)

CERTIFICATIONS
 • UL 924 Listed for U.S. & Canada
 • CSA C22.2 NO.141 field or factory installation
 • Meets CEC Title 20 efficiency standards
 • RoHS Compliant
 • FCC Compliant
 • Damp location

ELECTRICAL
 • Input voltage: 120-347VAC 50/60Hz
 • Surge protection: 3kV
 • Input power: 7W Max
 • Output voltage: 50-300VDC
 • Emergency operation duration: ≥90 minutes
 • Recharge time: 24 hours

THERMAL
 • 32°F to 140°F (0°C to 60°C) operating temperature

CONSTRUCTION
 • White powder coated steel housing
 • IP65 rated illuminated test button

COMPATIBILITY
 • Compatible with PG1 and TWP1 (refer to fixture spec sheet for individual
      product compatibility)

WARRANTY
 • 5 Year limited warranty available online. Contact your EiKO sales rep for additional details.

 APPLICATIONS
 • Warehouses
 • Manufacturing Plants
 • Distribution Centers
 • Grocery Stores
 • Gymnasiums
 • Indoor Recreational Facilities
 • Cold Storage
 • Big Box Retail
 • Service Repair Centers
 • Office

KEY FEATURES

IP65 RATED TEST BUTTON
The IP65 illuminated test button on the battery is designed for field testing and to notify ifthe battery has failed testing.

DESIGNED TO BE USED AS AN INTERNAL BATTERY BACKUP KIT
When there is an interruption in electricity, a battery backup provides light for safety and security. Self-diagnostic testing: 30 seconds monthly, 90 minutes annually.  Test button will illuminate when battery backup is no longer fuctioning correctly.

GREAT FOR HIGH TEMP APPLICATIONS FEATURING LONG LIFE BATTERY
Rated for use in applications up to 140°F/60°C (great for use with IP65 rated fixtures). Uses LiFePO4 battery ensuring long life performance.
