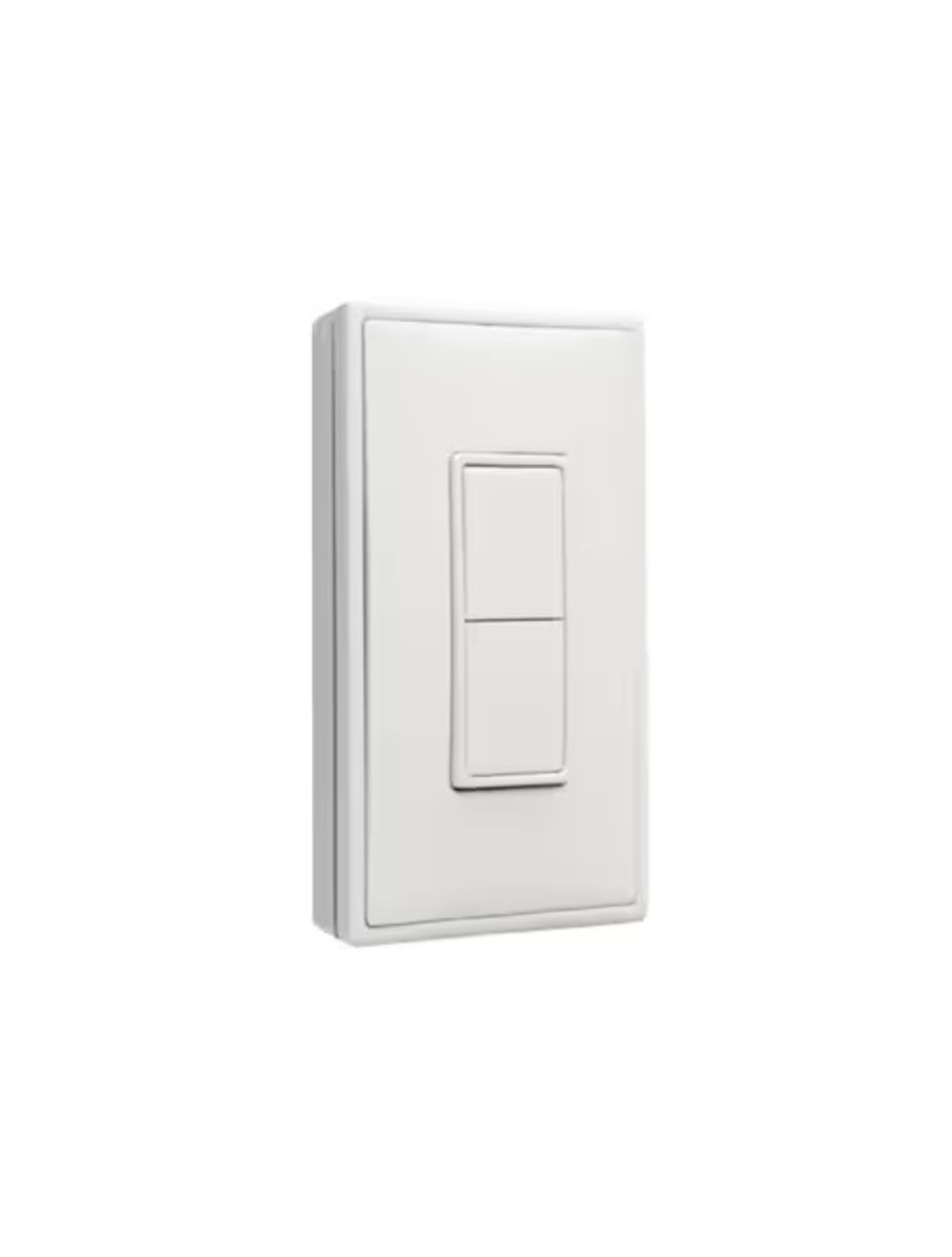

Eiko ESRPB-W-EO BLE Easyfit Wireless Self-Powered Kinetic Single Rocker Pad with Wall Plate White Finish 12654

HIGHLIGHTS
• Wireless Controller for Network Lighting Controls (NLC) using SIG Qualified Bluetooth mesh
• Designed for easy surface or flush mount installation or as a wireless remote
• The free iOS App powered by Silvair is used for onsite commissioning, which includes setting up areas/grouping/zoning, creating profiles, and personal control
• The Web App powered by Silviar is used for optional offsite pre-planning, which includes setting up areas/grouping/zoning (pre-commissioning not required) and creating profiles (includes setting high and low end trim, occupancy or vacancy, daylight harvesting, and time delay)
• No hubs, gateway, or routers are required to make a complete mesh network. The unit can pair with the Silvair iOS App to allow initial setup and subsequent adjustments
• Easily incorporate additional BLE devices like wall/wireless controllers, sensors, fixture controllers, range extenders, and timekeepers
• Over-the-air Firmware upgrade available via iOS App
• A device that is part of EiKO’s NLC System

CERTIFICATIONS
• FCC Compliant

PERFORMANCE
• Communication Range: up to 32.8ft*
• Manual on/off (wireless)
• Continuous Dimming (wireless)
• Scene setting recall

ELECTRICAL
• Self-powered

THERMAL
•  -13°F to 149°F (-25°C to 65°C) operating temperature

CONSTRUCTION
• Surface or Flush Mounted installation
• White plastic housing

WARRANTY
•  5-Year limited warranty available online. Contact your EiKO sales rep for additional details.

APPLICATIONS
• Office space
• Classrooms
• Conference rooms
• Storage spaces
• Break rooms
• Restrooms

*Communication range highly depends on the integrated fixtures, the surrounding environment, and conditions.
It is recommended to conduct testing in each unique application for range accuracy.
For a longer communication range, a Range Extender is recommended (per zone).
