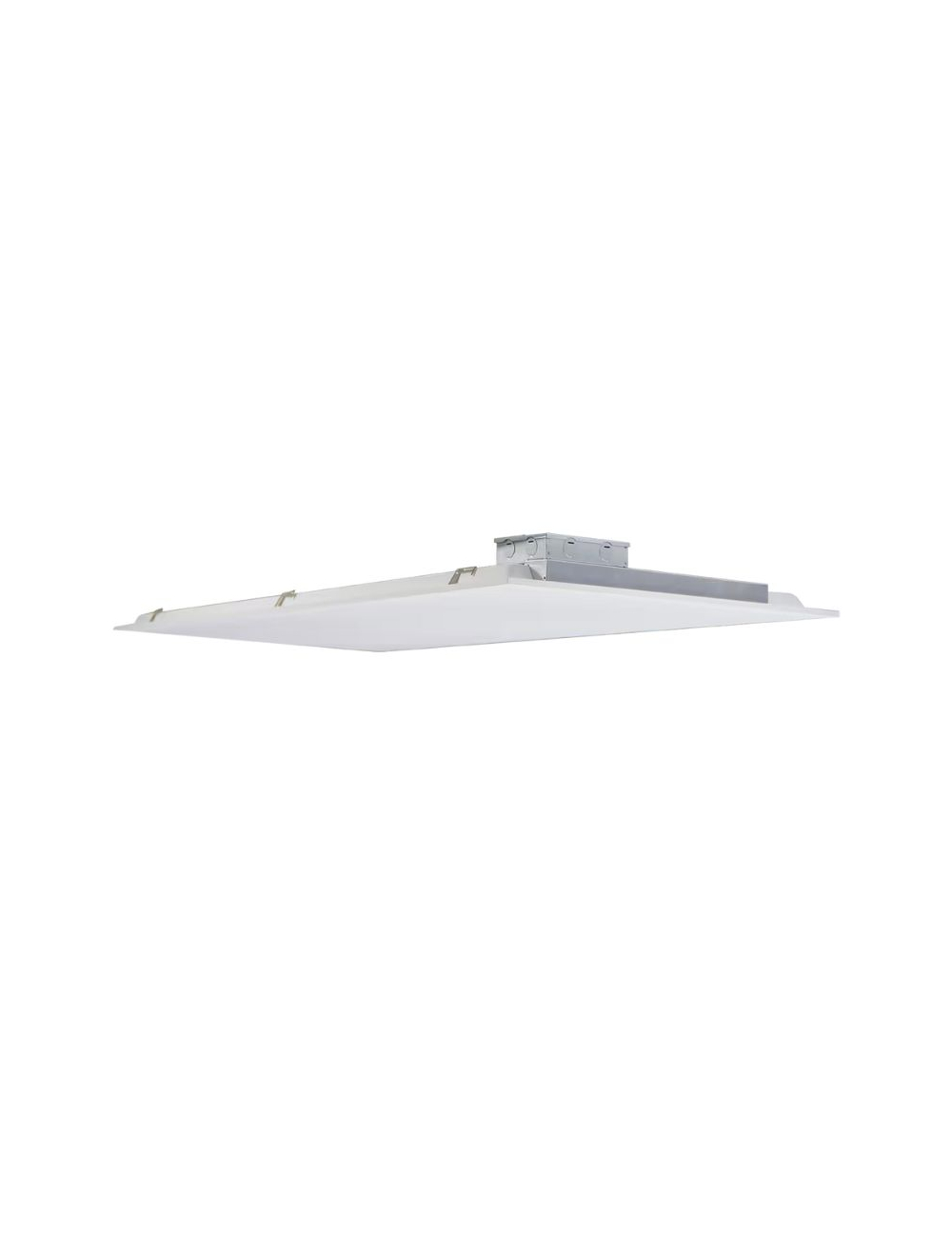

Eiko FPH2-2440S35-3 2x4 Flat Panel Hybrid 100-347 Volt 40 Watt 3500K Dimmable 800414
The FPH2-Series Hybrid LED Flat Panel ceiling light is a high-performance LED panel that uses a unique backlit design to provide a longer-lasting lighting solution that replaces traditional fluorescent lighting or low-end edge-lits found in offices, hospitals, schools, and more.
HIGHLIGHTS
• DLC Standard/Premium listed
• Up to 136 lm/W
• 80+ CRI
• High-strength design resists bowing when hung
• 0-10V Dimming
• Back-lit design never yellows
• Large 5.9" x 4" junction box makes daisy-chaining connections quick and easy
• Flicker-free
• Low profile: will fit into any plenum space and directly into existing suspended T-bar ceilings
• Backed by a worry-free 5-year warranty
APPLICATIONS
Designed for commercial or industrial offices, studios, schools, hospitals, and retail applications
PRODUCT FEATURES
CONSTRUCTION
• 6063 Aluminum
• Large 5.9" x 4" junction box
• Acrylic (PMMA) diffuser
• White post-painted frame
INSTALLATION
• Suspended t-bar ceilings
• Optional: aircraft cable, recessed, suspension, surface mount (optional accessories)
ELECTRICAL
• "-1" models designed to operate between 100-277V
• "-3" models designed to operate between 100-347V
• LED drivers in all models have 2kV inherent surge protection
• Power Factor >0.9
• THD <20%
• 0-10V dimming, dim to 10%
LISTINGS & RATINGS
• cETLus
• DLC Standard / Premium
• Damp location
• IC rated
• Listed for use in: -20°C to 45°C / -4°F to 113°F
RATED LIFE & WARRANTY
• LED system: >60,000 hours at L70
• 5-year warranty (visit premiseled.com/warranty/)
| Part Number | FPH2-2440S35-3 |
|---|---|
| Manufacturer | Eiko |
| Watts | 40 Watts |
| Lumens | 4120 |
| CRI | 80 |
| Color Temperature | 3500 Kelvin |
| Input Voltage | 100V-347V |
| Minimum Operating Temperature | -4℉ |
| Maximum Operating Temperature | 113℉ |
| Rated Life | 60,000 hours + |
| IP_Rating | IP20 |
| Dimensions | 47.75" x 23.75" x 2.81" |
| Length | 48 |
| Width | 24 |
| Height | 3 |
| Certifications |  |
| Warranty | 5 Year |
| Lead Time | In Stock - Quick Ship |
