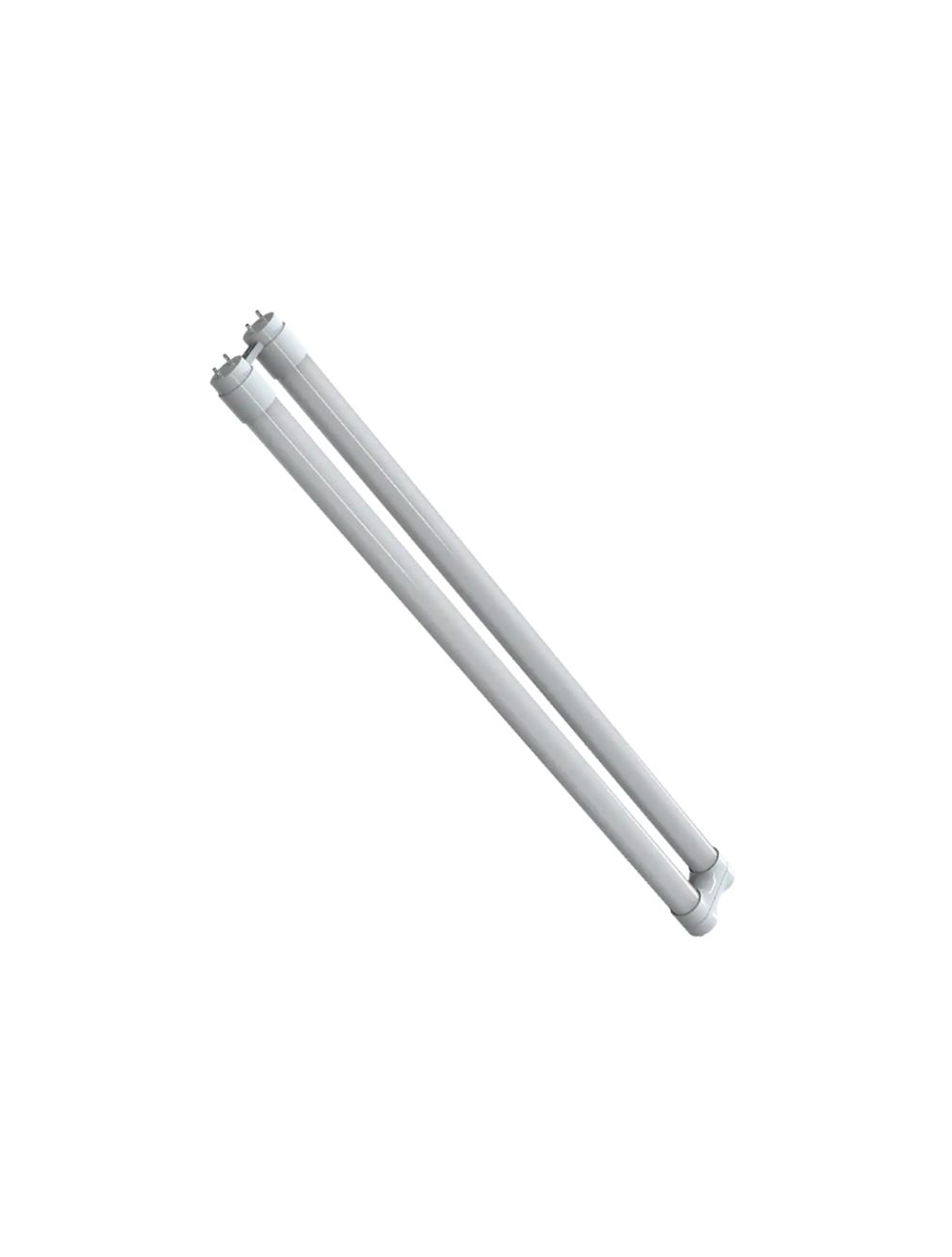

Eiko L11.5WT8/U1/AG/840 11.5W 1800LM T8 Ubend 1 5/8 Inch Type A Glass 80CRI 4000K G13 12691

HIGHLIGHTS
• LED T8 Type A plug and play replacement lamps directly replace T8 fluorescent lamps without having to change a ballast
• Functions on most electronic T8 ballast (instant & programmed) and battery backup
• Instantaneous full light output upon power-up
• Wide illumination angle provides up to 330° of light distribution
• Glass material for better light transmission (glass models)
• Plastic (polycarbonate) material for durability and reduced breakage (plastic models)
• Frosted lens reduces visual glare
• Plastic models meet the requirements for NSF; aiding as a component to a NSF lighting system

CERTIFICATIONS
• UL Certified for US & Canada
• FCC Compliant
• RoHS Compliant
• ICES-005 Compliant
• Damp Location
• DesignLights Consortium® Qualified - meets DLC requirements for efficacy and lumen maintenance

PERFORMANCE
• High efficacy, up to 194 lm/W
• Available in single CCT models: 3500, 4000 or 5000K
• CRI: >82
• Up to 330° illumination angle. with a beam angle of 210° for glass and 160° for plastic
• Rated Life L70: >50,000 hours

ELECTRICAL
• Input voltage: Ballast dependent
• Power Factor: >0.9
• THD: <20%

THERMAL
• -4°F to 113°F (-20°C to 45°C) operating temperature
• Not recommended for air-tight fixtures

CONSTRUCTION
• Available in 2', 3', and 4' lengths
• U-bend models available in 1 5/8" and 6" leg spacing
• Frosted glass lens provides optimal heat dissipation (glass models)
• Polycarbonte lens for durability (plastic models)
• G13 base

COMPATABILITY
• For a list of compatible ballasts please visit eiko.com.

WARRANTY
• 5-Year limited warranty available online. Contact your EiKO sales rep for additional details.

APPLICATIONS
• Office
• Hospital
• Classroom
• Hotel
• Retail
• Warehouse
• Stairwell
• Hallway
• Production
• Gym
• Campus

KEY FEATURES

LAMP-FOR-LAMP REPLACEMENT
Hassle-free install with a lamp-for-lamp replacement

SHATTER RESISTANT & NSF
Polycarbonate lamps meet the requirements for NSF; aiding as a component to a NSF lighting system and reduces breakage

WIDE RANGE OF COMPATIBILTY
Compatible with a wide range of ballasts (instant-start, programmed start, programmed dimmable, and emergency)

WIDER BEAM, MORE LIGHT
Wide illumination angle provides 330° of light distribution
