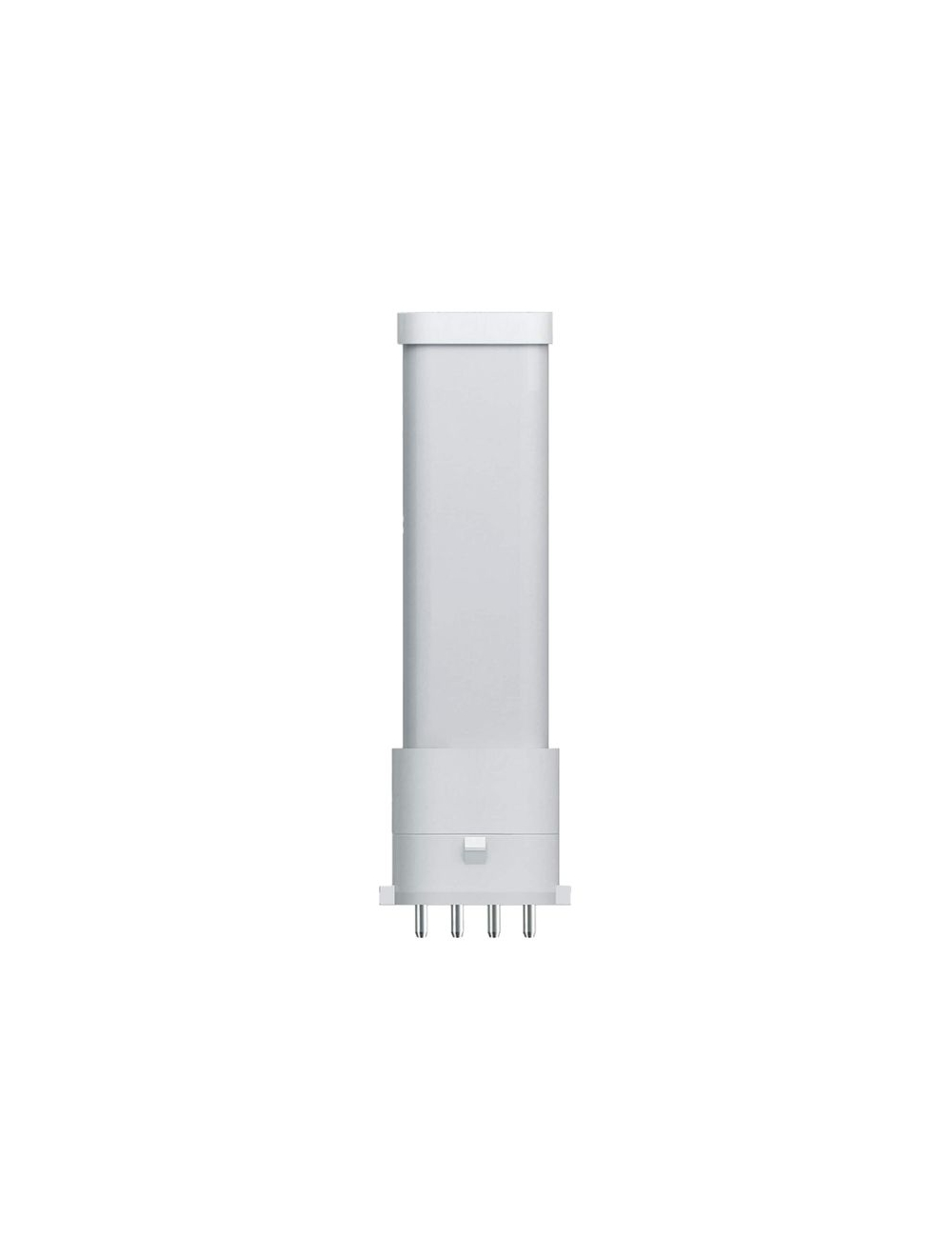

Eiko L5.5WPLS/B LED PLS Lamp 5.5 Watt 2CCT Selectable 120-277 Volt 2GX7 Base Horizontal
The EiKO Type B LED PL Lamp is a high-efficiency, long-lasting LED replacement for fluorescent PL lamps.
HIGHLIGHTS
• LED PL Type B 2G7 & 2GX7 (4-pin) lamps easily replaces existing 2G7 & 2GX7 (4-pin)
• 7W, 9W, and 11W CFL lamps by bypassing the existing fluorescent ballast and wiring directly to line voltage
• LED PL Type B G24d (2-pin) lamps easily replace existing G24d & GX24d (2-pin), G24q &
• GX24q (4-pin) 26W and 42W CFL lamps by bypassing the existing fluorescent ballast and wiring directly to line voltage
• Rotatable base (on select models) provides precision aiming
• Internal LED driver means no need to replace a ballast, resulting in long-term
• maintenance savings
• Instantaneous full light output upon power-up
• Polycarbonate lens reduces the risk of injury or breakage
• FieldCCeT models include multiple CCTs all in one lamp
CERTIFICATIONS
• UL Certified for US & Canada
• RoHS Compliant
• FCC Compliant
• ICES-005 Compliant
• Damp Location Rated
PERFORMANCE
• High efficacy: up to 129 lm/W
• Available in fixed wattage models: 3.5W, 5.5W, 15W, 15.5W, 16.5W, 17W
• Available in single CCT models: 2700K, 3000K, 3500K, 4000K or 5000K CCT
• Available in FieldCCeT models: 27/30/35/4000K (PLS) or 30/35/40/5000K (PLT)
• CRI >80
• Estimated Lifetime: L70> 50,000 hours
ELECTRICAL
• Input voltage: Type B - 120-277VAC
• Power Factor: >0.9
• THD: <20%
• Not suitable for use with dimmers
THERMAL
• -4°F to 113°F (-20°C to 45°C) ambient operating temperature*
CONSTRUCTION
• Aluminum heatsink
• Polybutylene Terephthalate base
• Shatter-resistant lamp housing
WARRANTY
• 5-Year limited warranty available online. Contact your EiKO sales rep for additional details.
*Not recommended for air-tight fixtures
KEY FEATURES
NO BALLAST REQUIRED
Eliminate the ballast with a simple installation, bypassing the existing fluorescent ballast and wiring directly to line voltage.
FEWER SKUS TO MANAGE
One lamp can work on multiple sockets, allowing you to reduce your inventory while providing more flexibility to your customers (see Socket Compatibility section).
ROTATABLE BASE
Horizontal installation models feature a rotatable base of up to 150° to provide precision aiming.
PRODUCT OPTIONS
• L5.5WPLS/B/827/U/2GX7/H — Order Code: 12896
• L5.5WPLS/B/840/U/2GX7/H — Order Code: 12868
| Part Number | L5.5WPLS/B |
|---|---|
| Manufacturer | Eiko |
| Watts | 6 Watts |
| Lumens | 570 |
| Lumens Per Watt | 104 |
| CRI | 80 |
| Color Temperature | 2700 Kelvin, 4000 Kelvin |
| Beam Angle | 120° |
| Input Voltage | 120V-277V |
| Rated Life | 50,000 hours + |
| Dimmable | No |
| Minimum Operating Temperature | -13℉ |
| Maximum Operating Temperature | 113℉ |
| Dimensions | 1.17" x 6.51" |
| Width | 1 |
| Height | 7 |
| Warranty | 5 Year |
| Certifications |    |
| UPC Code | 031293128966 |
| Lead Time | In Stock - Quick Ship |
