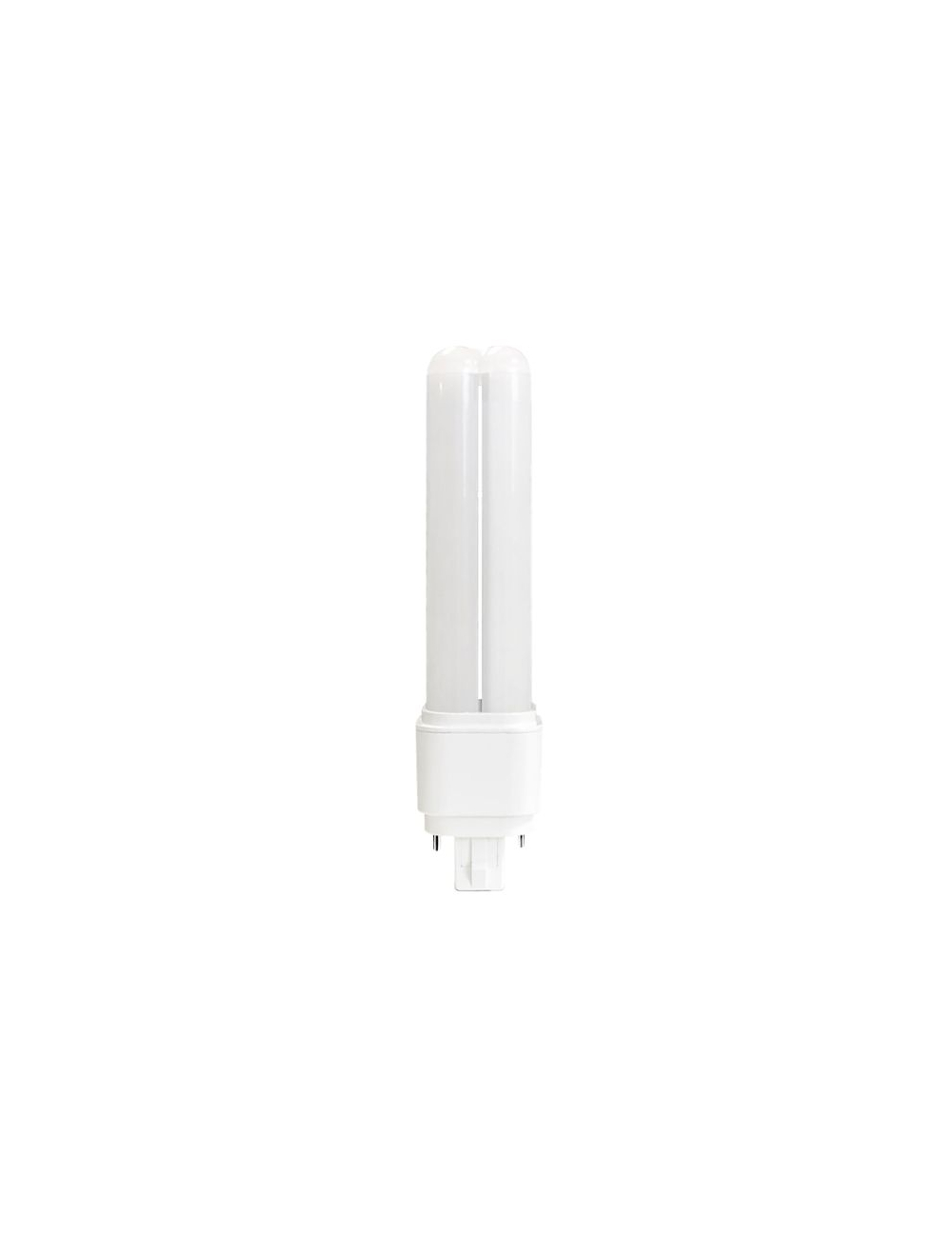

Eiko L7WPLC/AB/840/U/G24D/O PLC Lamp 7 Watt 4000K 120-277 Volt Type A/B Dual Mode Plastic Omni G24d Base 12869

HIGHLIGHTS
• LED PL Type A+B dual mode lamps work on magnetic ballasts or direct line voltage, as well as 2 or 4-pin bases
• Works with the existing ballast (Type A) or bypasses the ballast and wires directly to line voltage (Type B)
• LED PL G24d (2-pin) replaces traditional G24d & GX24d (2-pin) 13W, 18W, and 26W CFL lamps (Type A+B installation)
• LED PL G23 & GX23 (2-pin) replaces traditional G23 & GX23 (2-pin) 7W, 9W, and 13W CFL lamps (Type A+B installation)
• LED PL G24d (2-pin) replaces traditional G24q (4-pin) & GX24q (4-pin) 13W, 18W, and 26W CFL lamps (Type B Installation only)
• Rotatable base (select models) provides precision aiming (horizontal installation)
• Instantaneous full light output upon power-up
• Polycarbonate lens reduces the risk of injury or breakage

CERTIFICATIONS
• UL Certified for US & Canada
• RoHS Compliant
• FCC Compliant
• ICES-005 Compliant
• Damp Location Rated

PERFORMANCE
• High efficacy: up to 139 lm/W
• Available in fixed wattage models: 3.5W, 5W, 5.5W, 6W, 7W, 8.3W, 8.5W, 9W, 9.5W
• Available in 2700K, 3000K, 3500K, or 4000K CCT or FieldCCeT models: field-selectable CCT 27/30/35/4000K
• CRI >80
• Estimated Lifetime: L70> 50,000 hours

ELECTRICAL
• Input voltage: Type A - Voltage dependent on ballast; Type B - 120-277VAC
• Power Factor: >0.9
• THD: <20%
• Not suitable for use with dimmers

THERMAL
• -4°F to 113°F (-20°C to 45°C) operating temperature*

CONSTRUCTION
• Aluminum heatsink
• Polybutylene Terephthalate base
• Shatter-resistant lamp housing

BALLAST COMPATIBILITY
• For a list of compatible ballasts, please download the guide here

WARRANTY
• 5-Year limited warranty available online. Contact your EiKO sales rep for additional details.
*Not recommended for air-tight fixtures

KEY FEATURES
TYPE A+B FLEXIBILITY
Type A+B lamps provide a greater flexibility in installation methods: use an existing ballast or wire directly to line voltage.

EASY PLUG AND PLAY
For Type A installation, it provides a quick and easy installation.

NO BALLAST REQUIRED
For Type B installation: Eliminate the ballast with a simple installation, bypassing the existing fluorescent ballast and wiring directly to line voltage while utilizing the existing socket.

FEWER SKUS TO MANAGE
One lamp can work on multiple sockets, allowing you to reduce your inventory while providing more flexibility to your customers (see Socket Compatibility section).

THREE COLOR TEMPERATURES IN ONE
FieldCCeT models (one SKU providing 3000K, 3500K, 4000K CCT) allow you to reduce your inventory while providing more flexibility to your customers (available on 8.5W G24d base models).

ROTATABLE BASE
Horizontal installation models feature a rotatable base of up to 270°, providing precision aiming.
