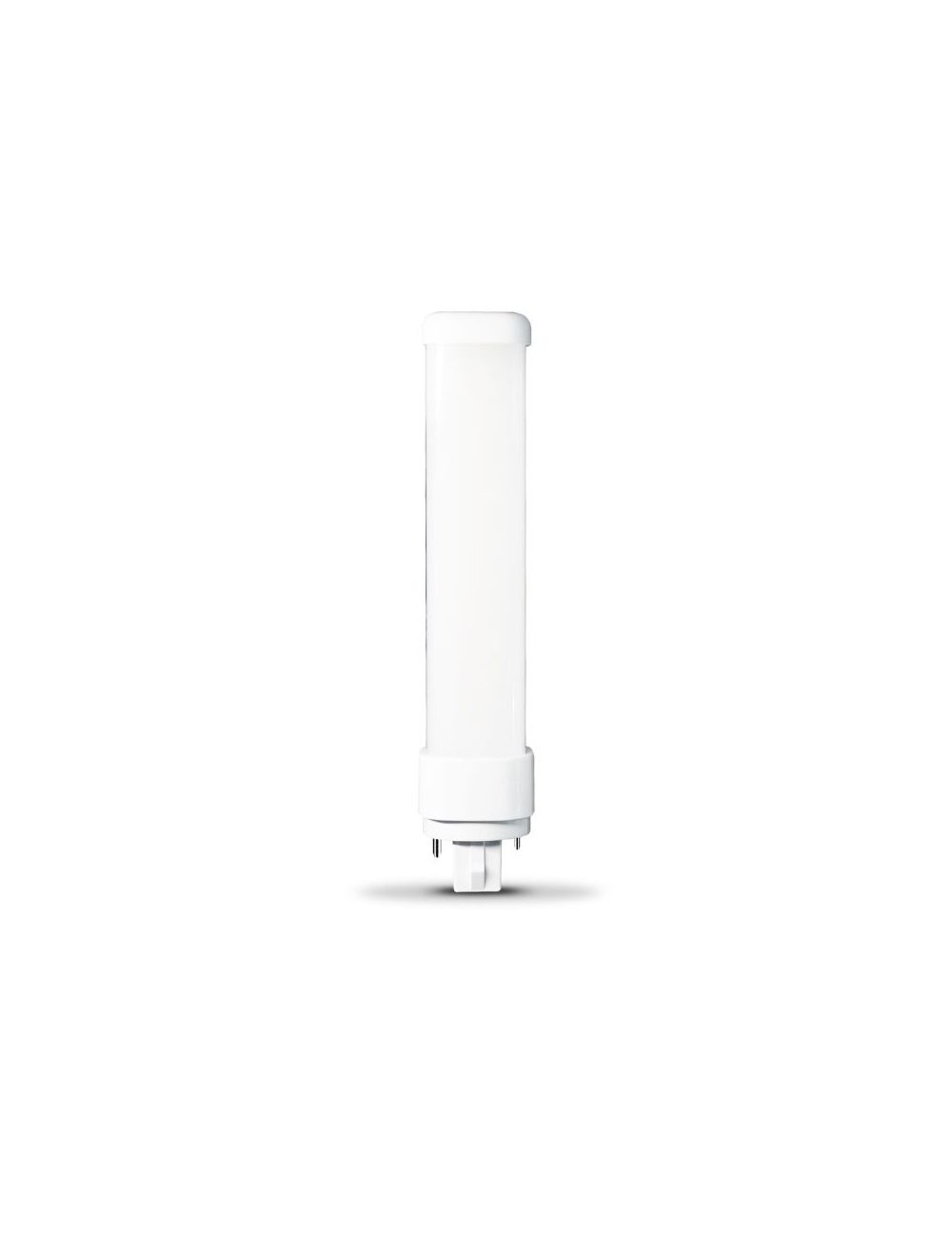

Eiko L9.5WPLC/A/835/UD/G24Q/HR PLC Lamp 9.5 Watt 3500K Type A Plastic Dimmable Horizontal Rotation 270 Degree G24q Base 12874
EiKO LED PL Type A G24q (4-pin) lamps provide a simple plug-and-play replacement for traditional 13W–42W CFL lamps without changing the ballast.
HIGHLIGHTS
• LED PL Type A G24q (4-pin) plug-and-play replacement lamps directly replace traditional G24q & GX24q (4-pin) 13W, 18W, 26W, and 42W CFL lamps without requiring a ballast change.
• Rotatable base provides precision aiming (horizontal installation)
• Instantaneous full light output upon power-up
• Omni-directional lamps provide 360° of light distribution
• Polycarbonate lens reduces the risk of injury or breakage
CERTIFICATIONS
• UL Certified for US & Canada
• RoHS Compliant
• FCC Compliant
• ICES-005 Compliant
• Damp Location Rated
• DesignLights Consortium® Qualified - meets DLC requirements for efficacy and lumen maintenance (select 9.5W, 14.5, 17W models only)
PERFORMANCE
• High efficacy: up to 134 lm/W
• Available in fixed wattage models: 6W, 7W, 9.5W, 14.5W or 17W
• Available in single CCT models: 2700K, 3000K, 3500K, or 4000K CCT or FieldCCeT models: field-selectable CCT 30/35/4000K
• CRI >80
• Estimated Lifetime: L70 > 50,000 hours
ELECTRICAL
• Input voltage: Type A - Voltage dependent on ballast
• Power Factor: >0.9
• THD: <20%
THERMAL
• -4°F to 113°F (-20°C to 45°C) operating temperature*
CONSTRUCTION
• Aluminum heatsink
• Polybutylene Terephthalate base
• Shatter-resistant lamp housing
BALLAST COMPATIBILITY
• For a list of compatible ballasts, please download the guide here
WARRANTY
• 5-Year limited warranty available online. Contact your EiKO sales rep for additional details
*Not recommended for air-tight fixtures
KEY FEATURES
LAMP-FOR-LAMP REPLACEMENT
Hassle-free install with a lamp-for-lamp replacement.
FEWER SKUS TO MANAGE
One lamp can work on multiple sockets, allowing you to reduce your inventory while providing more flexibility to your customers (see Socket Compatibility section).
THREE COLOR TEMPERATURES IN ONE
FieldCCeT models (one SKU providing 3000K, 3500K, 4000K CCT) allow you to reduce your inventory while providing more flexibility to your customers (available on 9.5W G24q base models).
ROTATABLE BASE
Horizontal installation models feature a rotatable base of up to 270°, providing precision aiming.
| Part Number | L9.5WPLC/A/835/UD/G24Q/HR |
|---|---|
| Manufacturer | Eiko |
| Watts | 10 Watts |
| Lumens | 1050 |
| Lumens Per Watt | 111 |
| CRI | 80 |
| Beam Angle | 110° |
| Rated Life | 50,000 hours + |
| Dimmable | Yes |
| Base Type | G24Q 4-pin |
| Dimensions | 1.31" x 6.39" |
| Width | 1.31 |
| Height | 6.39 |
| Warranty | 5 Year |
| Certifications |  |
| UPC Code | 031293128744 |
| Lead Time | In Stock - Quick Ship |
