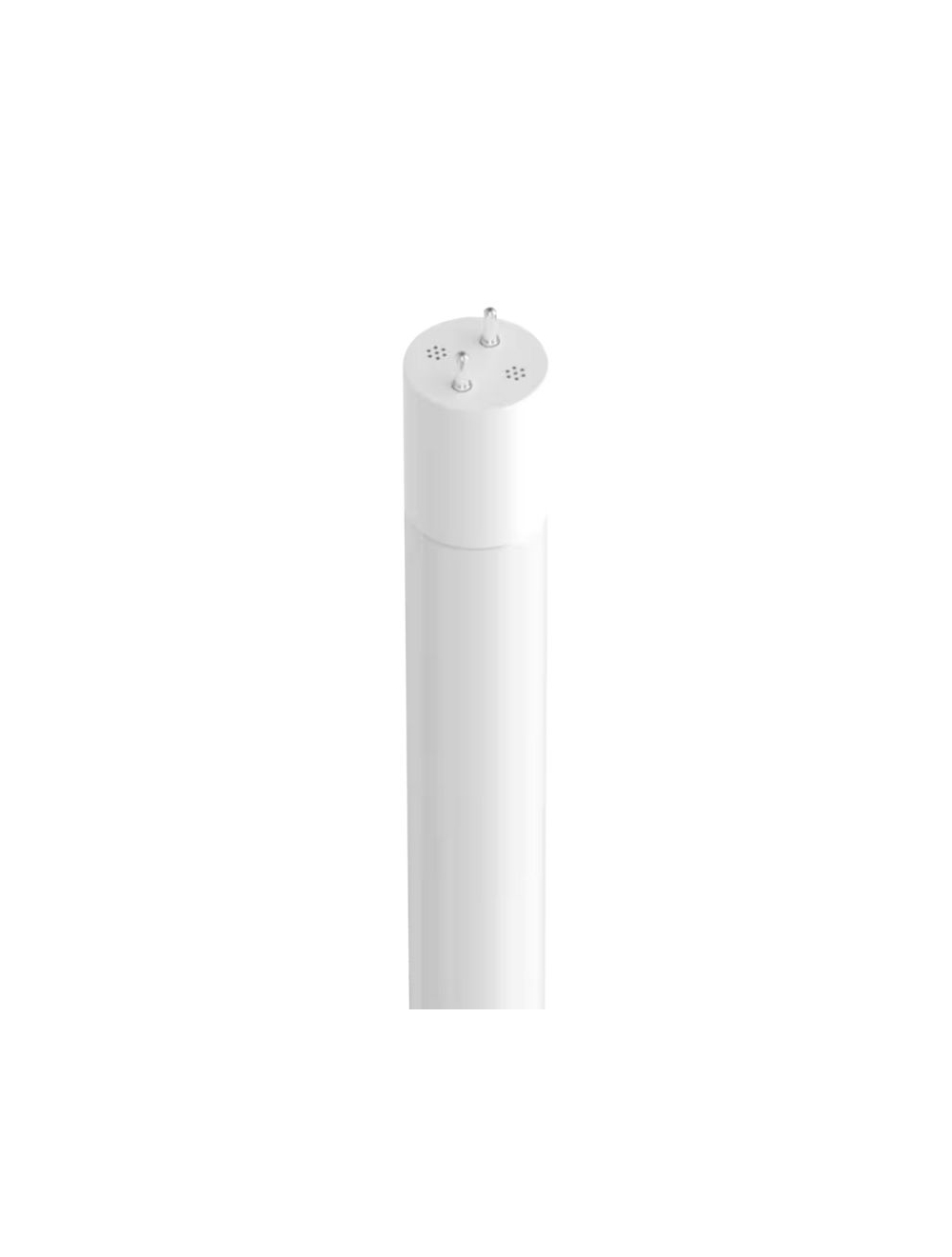

Eiko LED12WT8/36/850-DBL-G7D LED T8 Glass Tube 3' 12 Watt 5000K Double-Ended Bypass/Line Voltage 09602

Be the first to review this product

LED T8 Replacement Lamps directly replace fluorescent T8 lamps at a fraction of the energy cost.

$127.86

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

LED12WT8/36/850-DBL-G7D

Eiko LED12WT8/36/850-DBL-G7D LED T8 Glass Tube 3' 12 Watt 5000K Double-Ended Bypass/Line Voltage 09602 is available to buy in increments of 25

Details

FEATURES
• Solid state replacement for 2', 3', or 4' T8 linear fluorescent
• Use with shunted (T8) or non-shunted (T12) lamp holders
• Frosted lens for uniform diffuse appearance
• No external ballast or driver required
• Ultra-high performance LEDs deliver 121+ lpw
• Instant-On with no warm-up like fluorescents
• Integral 120~277V drivers provide easy installation
• Contains no mercury or lead; classified as non-hazardous waste
• Use with shunted (T8) or non-shunted (T12) lamp holders
• Note: Both pins on each end of the lamp must be connected to the line voltage. Non-shunted (T12) lamp holders require field-installed jumper wire tying both pins together; see wiring diagram.
• Not for use in airtight fixtures

WARRANTY
• 5 year limited warranty; see eiko.com for warranty details

APPLICATIONS
• Commercial
• Conference rooms
• Hospitality
• Education
• Healthcare
• Retail
• Residential

Specifications

More Information
Part Number	LED12WT8/36/850-DBL-G7D
Manufacturer	Eiko
Watts	12 Watts
Color Temperature	5000 Kelvin
CRI	80
Lumens	1,450
Lumens Per Watt	120
Rated Life	50,000 hours +
Input Voltage	120V-277V
Dimmable	No
Minimum Operating Temperature	-4℉
Maximum Operating Temperature	113℉
Dimensions	35.78"
Length	36
Lead Time	In Stock - Quick Ship
Certifications	, , , , ,
UPC Code	031293096029
Warranty	5 Year
