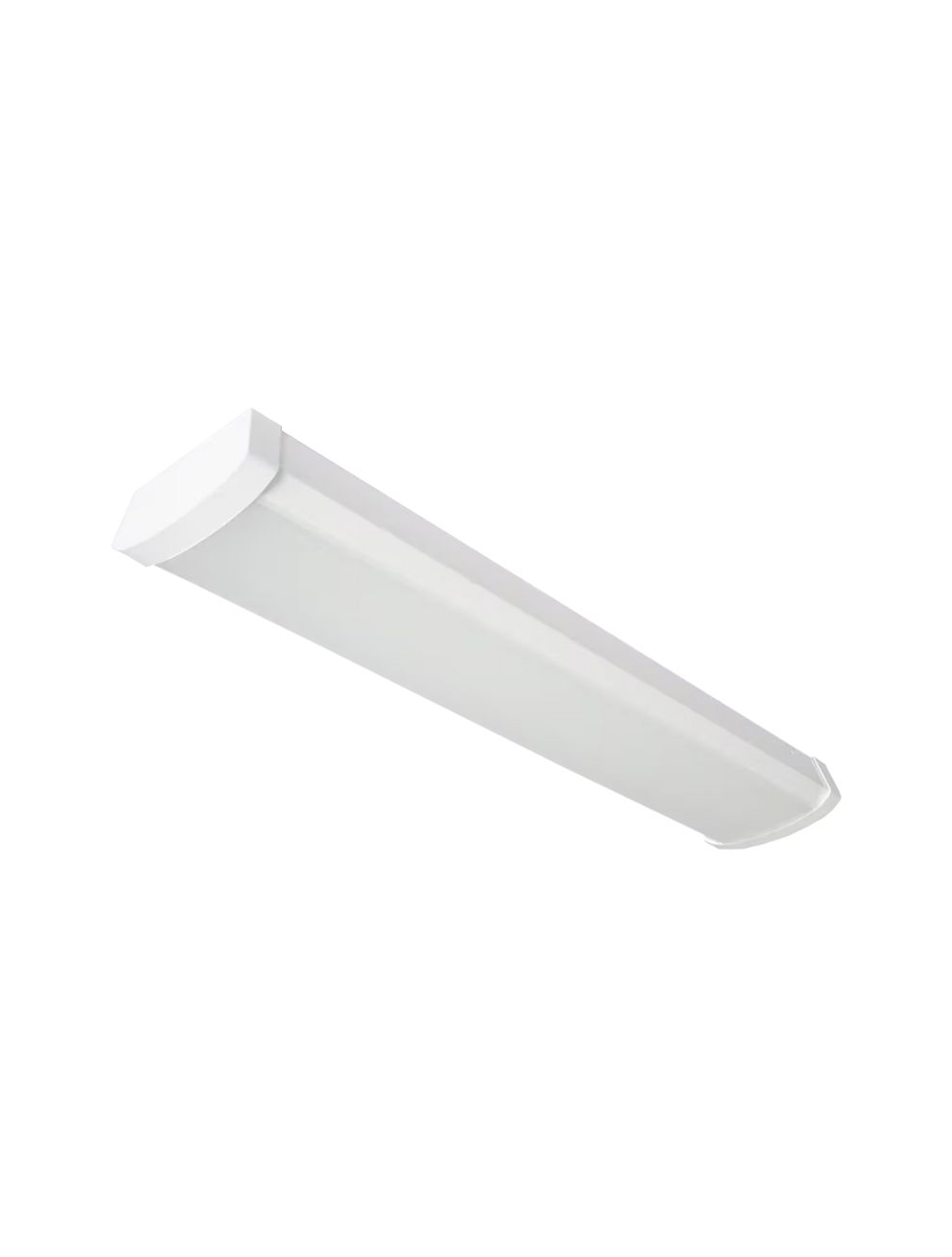

Eiko LLW2/20W/8FCCT/UD LED Linear Wrap 2' 20 Watt 3CCT Selectable 120-277 Volt Dimmable 12577

HIGHLIGHTS
• Ideal replacement for less efficient fluorescent wrap fixtures
• Perfect for lower traffic areas
• Internal back-up battery field install accessory available
• 2' and 4' versions
• PowerSet feature allows for multiple lumen stops out of the box
• FieldCCeT features provide multiple color temperature settings in one fixture

CERTIFICATIONS
• UL listed for US & Canada
• ETL Listed for US & Canada
• RoHS Compliant
• FCC Compliant
• Damp Location Rated
• DesignLights Consortium Qualified - meets DLC requirements for efficacy and lumen maintenance

PERFORMANCE
• High Efficacy, up to 115 lm/W
• Available in fixed wattage models: 20W, 32W, 40W or 48W and PowerSet models: power-selectable 24/20/16W or 48/40/32W
• Available in single CCT models: 4000K or FieldCCeT models: field-selectable CCT 35/40/5000K
• CRI: >80
• Rated lifetime L70: 50,000 hours

ELECTRICAL
• Input voltage: 120-277V, 120-347V
• 12V Output: 200mA (on available models, see page 2)
• Power Factor: >0.9
• THD: <10%

THERMAL
• -4°F to 122°F (-20°C to 50°C) ambient operating temperature

CONSTRUCTION
• Durable steel body construction with white powder coat finish
• Polycarbonate lens

WARRANTY
•  5 Year limited warranty available online. Contact your EiKO sales rep for additional details.

APPLICATIONS
• Classroom
• Meeting rooms
• Office
• Library
• Retail
• Reception/Lobby

KEY FEATURES

BACK-UP BATTERY
Internal back-up battery field install accessory available

MULTIPLE LUMEN OPTIONS
PowerSet feature allows for numerous lumen stops out of the box

MULTIPLE COLOR TEMPS
FieldCCeT features provide multiple color temperature settings in one fixture
