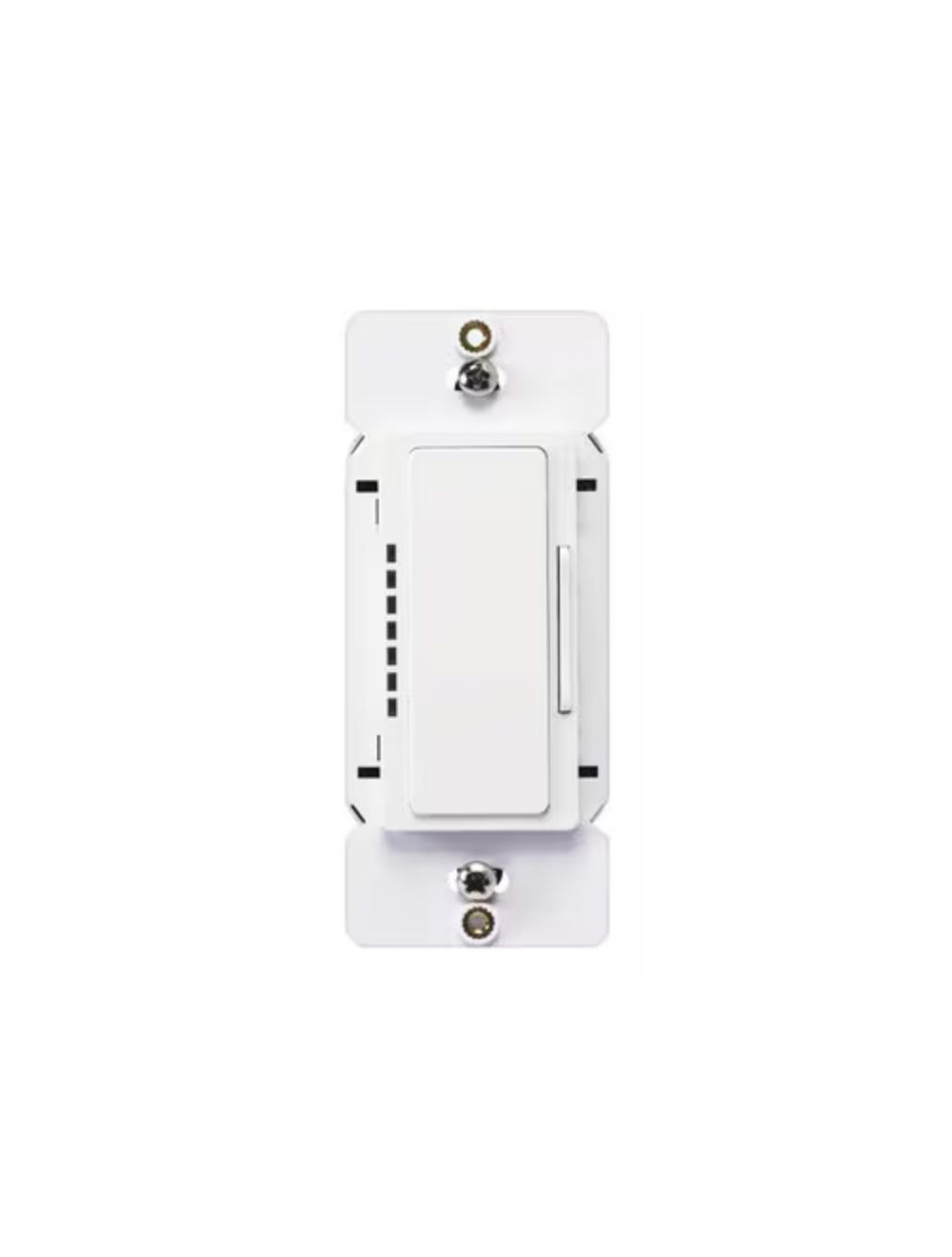

Eiko PSC-DM-WS-100-BLE-SR BLE Wall Controller Single Button 120-277 Volt White Finish 12635

The EiKO Wireless Wall Controllers are designed for easy integration into Network Lighting Control (NLC) systems. These controllers utilize SIG-qualified Bluetooth Mesh for seamless communication, eliminating the need for hubs, gateways, or routers.

$95.41

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

PSC-DM-WS-100-BLE-SR

Details

HIGHLIGHTS
• Wireless Wall Controller for Network Lighting Controls (NLC) using SIG Qualified Bluetooth mesh
• Designed for use with a single-gang electrical box
• The free iOS App powered by Silvair is used for onsite commissioning, which includes setting up areas/grouping/zoning, creating profiles, and personal control. (PSC-DM-I-WS 100-BLE-SR feature with occupancy or vacancy, ambient threshold, and time delay)
• The Web App powered by Silviar is used for optional offsite pre-planning, which includes setting up areas/grouping/zoning (pre-commissioning not required) and creating profiles (includes setting high and low end trim, occupancy or vacancy, daylight harvesting, and time delay)
• No hubs, gateway, or routers are required to make a complete mesh network. The unit can pair with the Silvair iOS App to allow initial setup and subsequent adjustments
• Easily incorporate additional BLE devices like wall/wireless controllers, sensors, fixture controllers, range extenders, and timekeepers
• Over-the-air Firmware upgrade available via iOS App
• A device that is part of EiKO's NLC System

CERTIFICATIONS
• cULus Listed for Damp Locations
• FCC Compliant
• RoHS Compliant

PERFORMANCE
• Communication Range: up to 30ft*
• Manual on/off (wireless)
• Continuous Dimming (Wireless)
• LED status indicator light

ELECTRICAL
• Input Voltage: 120-277V, 50/60Hz
• Power Consumption: 1.5W Maximum
• The Wall Controller is powered by line voltage

THERMAL
• 32°F to 131°F (0°C to 55°C) operating temperature

CONSTRUCTION
• Mounts in any standard electrical box
• White plastic housing

WARRANTY
• 5-Year limited warranty available online. Please contact your EiKO sales representative for additional details.

APPLICATIONS
• Office space
• Classrooms
• Conference rooms
• Storage spaces
• Break rooms
• Restrooms

*Communication range highly depends on the integrated fixtures, the surrounding environment, and conditions.
It is recommended to conduct testing in each unique application for range accuracy.
For a longer communication range, a Range Extender is recommended (per zone).
