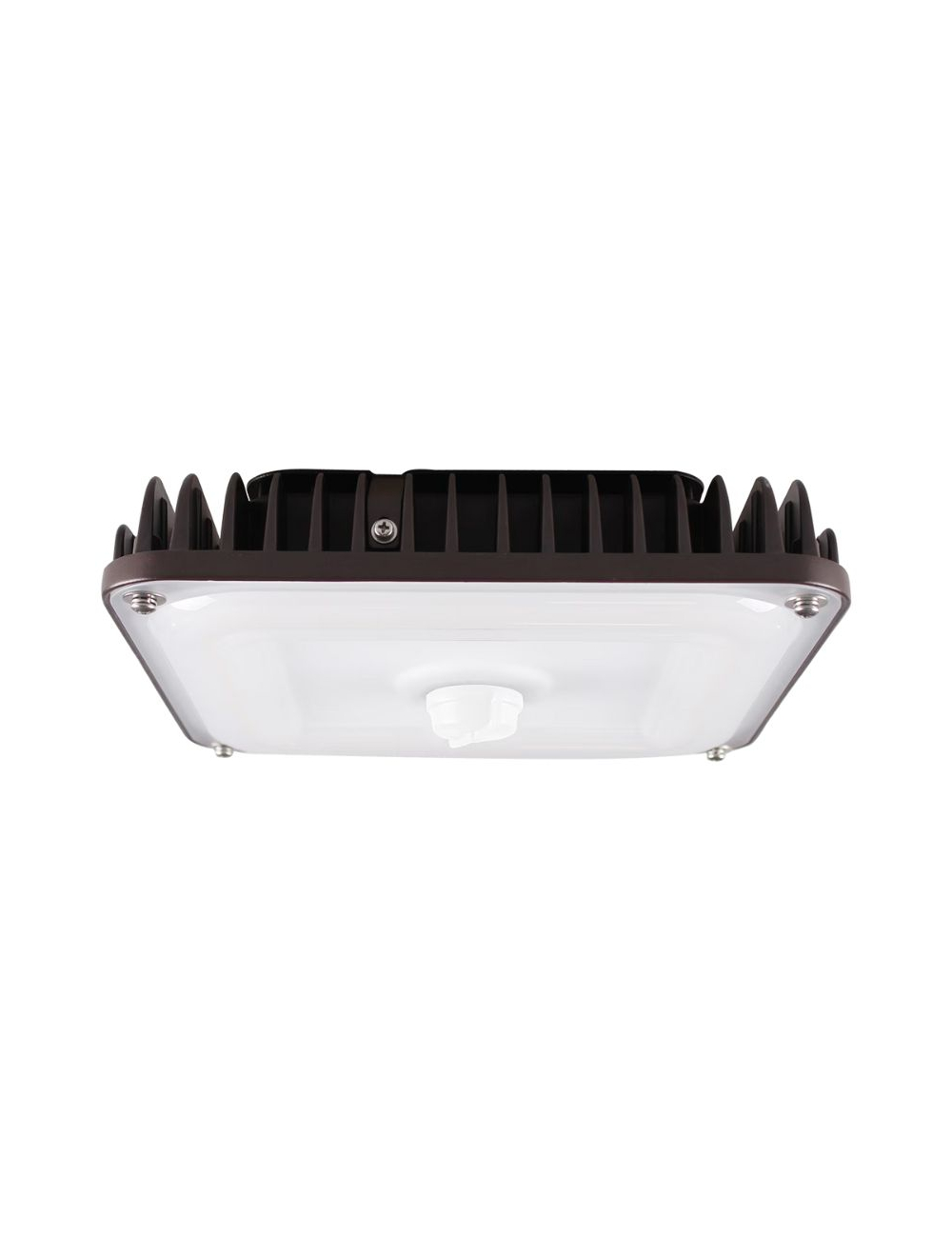

Eiko SCS/70W/840/UD Surface Canopy Square 70 Watt 4000K 120-277 Volt Dimmable Z10 11523

FEATURES
• Quick-mount design simplifies installation
• Standard Z10 receptacle simplifies adding controls
• Low-profile is ideal in applications with low mounting heights
• PowerSet feature allows for multiple "set and forget" lumen stops
• Up to 150lpw ultra-high efficiency delivers superior performance
• Optional field installed "garage" lens, optimizes the light distribution for garage applications

CERTIFICATIONS
• UL Listed for wet locations
• IP65 Rated
• IK10 Impact Rated
• DesignLights Consortium Premium Qualified- meets the requirements for the highest DLC qualification for efficacy and lumen maintenance

PERFORMANCE
• Rated lifetime:
        L80 >72,000hrs @ 50°C
        L90 >40,000hrs @ 50°C
• PowerSet: 60/40/25W; 7,400/5,200/3,350 lm
• 70W; 9,725 lm
• 4000K, 5000K CCT
• CRI: >80

ELECTRICAL
• Input voltage: 120-277V
• 0-10V dimming to <10% with dim-to-off capability
• Power Factor: >0.9
• THD: <20%

THERMAL
• -40°F to 122°F (-40°C to 50°C) operating temperature

CONSTRUCTION
• Die-cast aluminum construction
• Impact-resistant polycarbonate lens
• 1/2" NPS entry points for conduit and accessories
• 1/2" NPS pendant mount
• Quick-mount surface bracket included

WARRANTY
•  5-year limited warranty. Additional warranty options are available. Contact EiKO for details

APPLICATIONS
• Entryways
• Garages
• Plazas
• Utility Closets
• Public Restrooms
• Eaves
