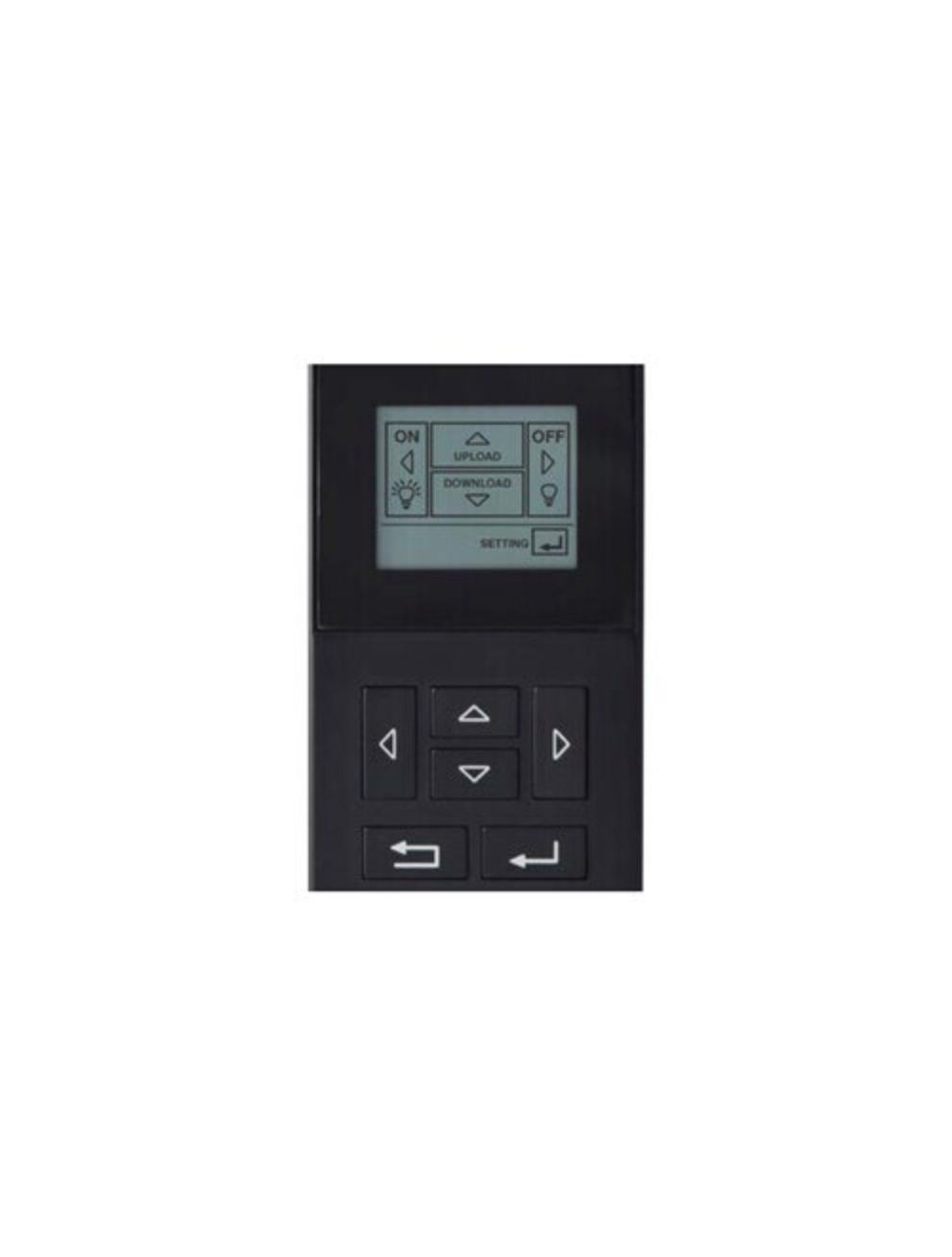

Eiko SEN-3-RC Commissioning Tool for SEN-3B-KO and SEN-3C-KO Sensors 10226

The SEN-3-RC is a universal two-way remote programming device designed to provide easy configuration of Series 3 remote programmable sensors (3B, 3C, etc) from EiKO. This handheld programmer not only allows you to configure the sensors, but also download the current settings of the installed sensor from the floor via intuitive keypad operation. The remote does away with the need for ladders, scissors lifts, bucket trucks, or any other tools.

$62.21

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

SEN-3-RC

Details

OVERVIEW
A bi-directional infrared optical communicator enables not only uploading the new setting parameters to the sensor, but also downloading the current settings and dim level output from the sensor. Up to 4 pre-configured profiles and an additional default profile can be recalled, modified, and saved for quick setting of multiple sensors with identical parameters.

In addition to sensor programming, the SEN-3-RC can also be used as a typical remote to control local lighting manually. This device not only makes ladder-free sensor and control parameters setting possible, but also provides an easy way to verify conformity with design intent.

FEATURES
• Exceptionally long range 2-way communication
• Intuitive operation makes commissioning faster
• Upload and download status acknowledgement
• Easy to duplicate one sensor setting to another
• Set continuous dimming level to deliver optimum lighting
• Capable of reading the current dim output level
• Set ambient light level for daylight harvesting
• Set high/low dim level output for bi-level control
• Pre-configured profiles enable setting multiple sensors
• Various time settings for burn-in and operation
• Rubber jacket provides superb drop protection

OPERATIONS
The SEN-3-RC Sensor Remote Programmer is powered by two AAA batteries. Intuitive keypad operation with instructions on the LCD makes sensor setting and programming an easy job. In addition, it can be used like a typical remote control to turn on and off the local lighting manually.

SETTING
The SEN-3-RC can program applicable settings of any remote programmable sensor, including control mode, ambient light level, OFF delay, Time Off delay, high/low dim level, continuous dimming, ramp-up/fade-down speed, sensitivity, burn-in time, test mode, save and recall pre-configured profiles, factory default reset, etc.

UPLOAD
The SEN-3-RC can easily upload control parameters to a single or multiple sensors through easy, intuitive keypad operation. To upload the sensor with new settings, just select the available parameters on the remote, go to the UPLOAD page, aim the remote toward the target sensor, press the "ENTER" key, and hold for uploading is completed. Once the program is completely uploaded to the sensor, the LCD will display a message, and the connected light will flash to acknowledge the upload completion.

DOWNLOAD
To download the current settings, just enter the DOWNLOAD page, aim the SEN-3-RC at the sensor, and hold to receive the data from the sensor after pressing the "ENTER" key. The LCD will display a message to acknowledge the download status. All current settings will be displayed on the LCD after the download is completed.

CONFIGURATION TABLE
The following table highlights all settings and options available for SEN-3-RC to configure. Certain settings and parameters may not be available on a specific type of sensor with a specific control mode selected. For the available settings and options of a specific sensor, please refer to the installation instructions of the sensor.

Settings	Description
CONTROL	The mode that the sensor will control the light.
AMBIENT LUX	The ambient light level at the sensor will perform the control.
OFF DELAY	The delay time the sensor will turn off or dim the light.
TIME OFF	The delay time that the sensor keeps the light at a low dim level after the OFF delay time has elapsed.
HIGH DIM	The output level is set to control the light during occupancy, or when ambient light is below the threshold for the daylight sensor.
LOW DIM	The output level is set to control the light when the space is vacant, or when ambient light is above the threshold for the daylight sensor. Low dim setting will be disabled if the sensor is operating in continuous dimming control.
RAMP UP	The speed of increasing the lighting output to HIGH DIM level.
FADE DOWN	The speed of decreasing the lighting output to the LOW DIM level or off.
VM-TB	Sets duration before Virtual Midnight. Only avail. w/ Daylight Sensor
VM-TA	Sets duration after Virtual Midnight. Only avail. w/ Daylight Sensor
SENSITIVITY	Set the sensitivity of the occupancy sensor.
ON DELAY	The delay time that the sensor to turn on the load after the occupant is detected or after the ambient light is below a set threshold for daylight sensors. Not applicable for lighting control occupancy sensors.
BURN-IN	Set the duration for the burn-in test. To conduct the burn-in test with uncertain duration, select MANUAL.
TEST (10-MIN)	The sensor will control the light according to the mode selected and parameters configured, but with shortened delay times (10 seconds) for testing and function verification. The sensor will automatically return to its normal control after 10 minutes or whenever the STOP command is given.
SAVE AS	Save the settings as a preconfigured profile for future use.
RECALL	Recall the preconfigured profile saved.
DEFAULT	Resume the factory default settings for REMOTE or SENSOR.
DEVICE INFO	Call out the information of REMOTE or SENSOR.
