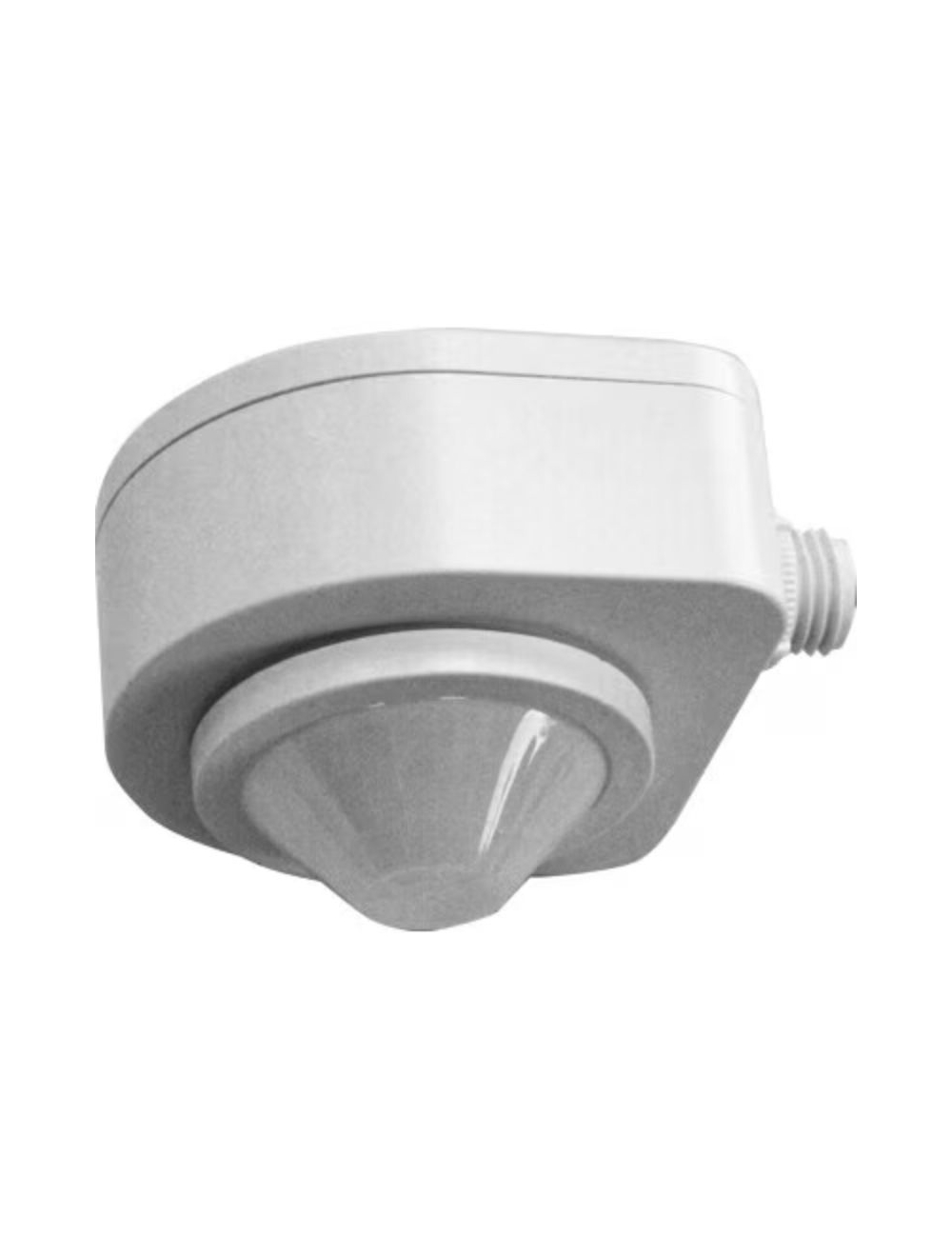

Eiko SEN-3C-KO PIR Motion Sensor 347/480 Volt IP66 1/2" Knockout 0-10V Dimming Control 10221

OVERVIEW
The SEN-3C-KO features a state-of-the-art automatic dimming control technology, which is capable of maintaining the overall ambient light level within the preset range through a smooth, flawless, continuous dimming control to the connected lighting.

The sensor will turn on the connected lighting to the high dim or continuous dimming level as programmed when it detects the presence of an occupant or vehicle, and automatically dim the light down to the low level or shut off as programmed after the area is vacated for a period of time. An exclusive two-way handheld remote programmer (SEN-3-RC) allows you to configure sensor settings or download the existing settings of the installed sensor from the floor.

The SEN-3C-KO is also available with interchangeable lenses. The sensor can be externally mounted with a lighting fixture via a 1/2" knockout hole, and operates in the coldest of environments, down to -40°F/°C.

FEATURES
• Omni-directional quad element infrared sensor
• Digital data control ambient light sensor built-in
• 2-way IR remote programmable sensor setting
• Continuous dim or multi-level high/low dim control
• Remote programmable continuous dim level setting
• Up to 30 ft of remote programmable range
• Beeping or flashing light acknowledgement
• Available with interchangeable lens options
• 5 Year Limited Warranty; see eiko.com for warranty details

APPLICATION
The SEN-3C-KO sensor can be used to provide occupancy sensing-based, multi-mode, continuous dimming control by sensing the presence and movements of the occupant and the daylight available in the space. Specific control mode and sensor settings can be configured via the SEN-3-RC remote sensor programmer (sold separately). Basic wiring diagram is included on the next page for reference. Consult with an EIKO team member if a more complex control is required.

DIMMING
The SEN-3C-KO utilizes an exclusive continuous dimming control algorithm that provides a smooth and flawless automatic dimming performance. The output of the controlled lighting will be constantly adjusted to maintain the overall ambient light level within the pre-programmed range by sensing the daylight available in the space.

CONTROL MODES
The SEN-3C-KO can be programmed by SEN-3-RC to control the lighting in one of the following modes with various conditions as set. For more details of specific control mode, please visit eiko.com or contact an EiKO team member directly.

LENS OPTIONS
The SEN-3C-KO is available with the following lens options, which provide different coverage at different mounting heights (H). When adding the lens code, the lens is then automatically shipped with the sensor.
