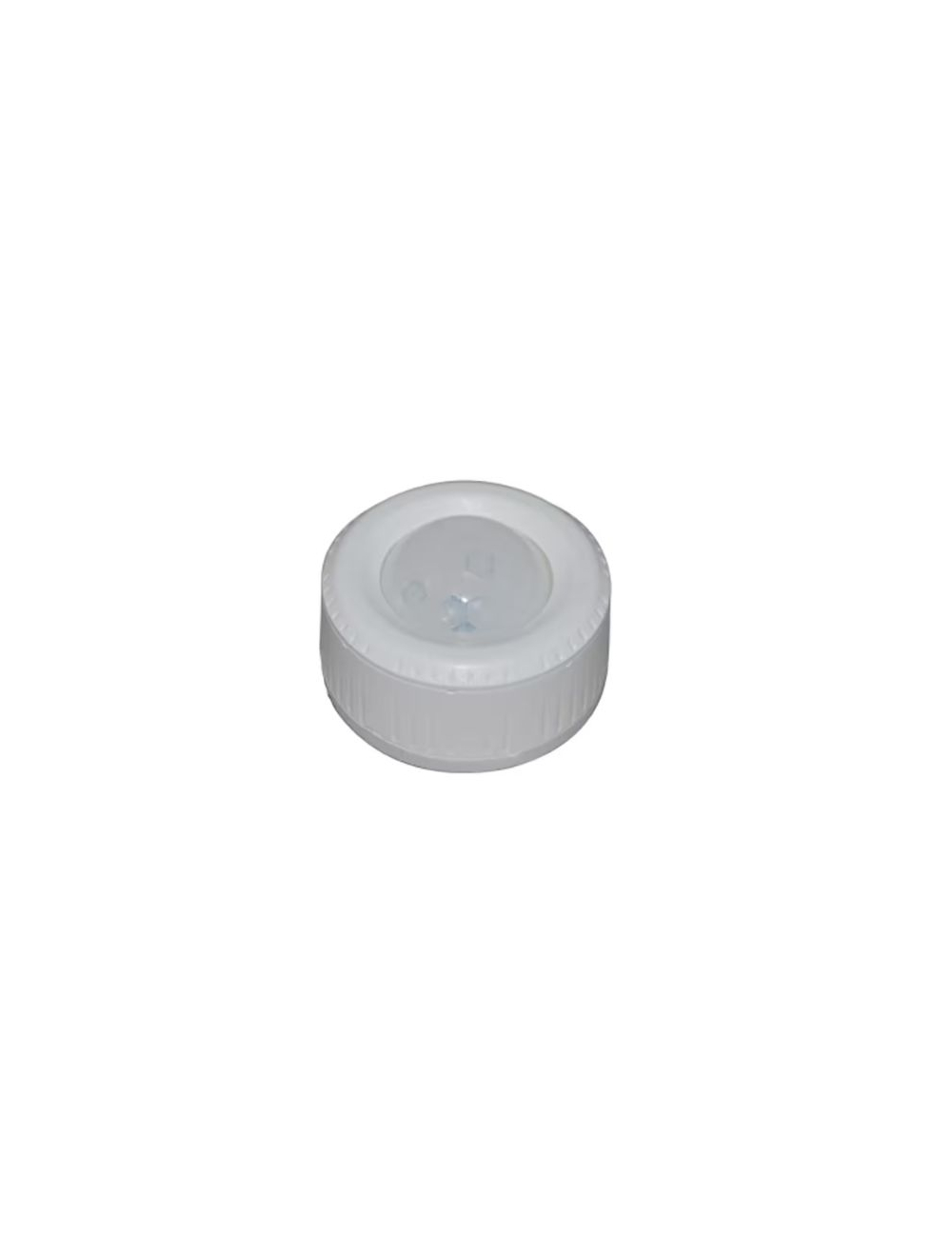

Eiko SENA-WZPA-WH BLE PIR Motion Sensor 12-24 Volt Z10 0-10V Daylight Harvesting IP65 13246

HIGHLIGHTS
• Z10 Twist Lock Wireless PIR Motion Sensor for Network Lighting Controls (NLC) using SIG Qualified Bluetooth mesh
• Designed for use with EiKO Z10 receptacles for quick and easy twist lock installation in the field
• The free iOS/Android App powered by Silvair is used for onsite commissioning which includes setting up areas/grouping/zoning, creating profiles which includes setting high and low end trim, occupancy or vacancy, daylight harvesting, ambient threshold (Photocell), time delay, as well as personal control
• The Web App powered by Silvair is used for optional offsite pre-planning which includes setting up areas/grouping/zoning (pre-commissioning not required) and creating profiles (includes setting high and low end trim, occupancy or vacancy, daylight harvesting and time delay)
• No hubs, gateway, or routers are required to make a complete mesh network. The unit can pair with the Silvair iOS/Android App to allow initial setup and subsequent adjustments
• Easily incorporate additional BLE devices like wall/wireless controllers, sensors, fixture controllers, range extenders, and timekeepers
• Over-the-air Firmware upgrade available via iOS/Android App
• A device that is part of EiKO’s NLC System

CERTIFICATIONS
• ETL Listed for US & Canada
• RoHS Compliant
• FCC Compliant
• IP65 Rated
• Wet Location Rated

PERFORMANCE
• Onboard Omnidirectional Antenna
• Operational frequency: 2.4 GHz - 2.483 GHz
• Mounting Height: 8-40ft
• Communication Range: up to 200ft*
• Continuous and Bi-Level Dimming

ELECTRICAL
• Input voltage: 12-24VDC
• Input current: 50mA
• 0-10V

THERMAL
• -4°F to 140°F (-20°C to 60°C) operating temperature

CONSTRUCTION
• High strength, UV resistant white plastic housing
• Z10 twist lock installation

WARRANTY
• 5-Year limited warranty available online. Contact your EiKO sales rep for additional details.

APPLICATIONS
• Warehouses
• Parking Garages
• Parking Lots
• Car Dealerships
• Soccer Fields
• Parking Lots
