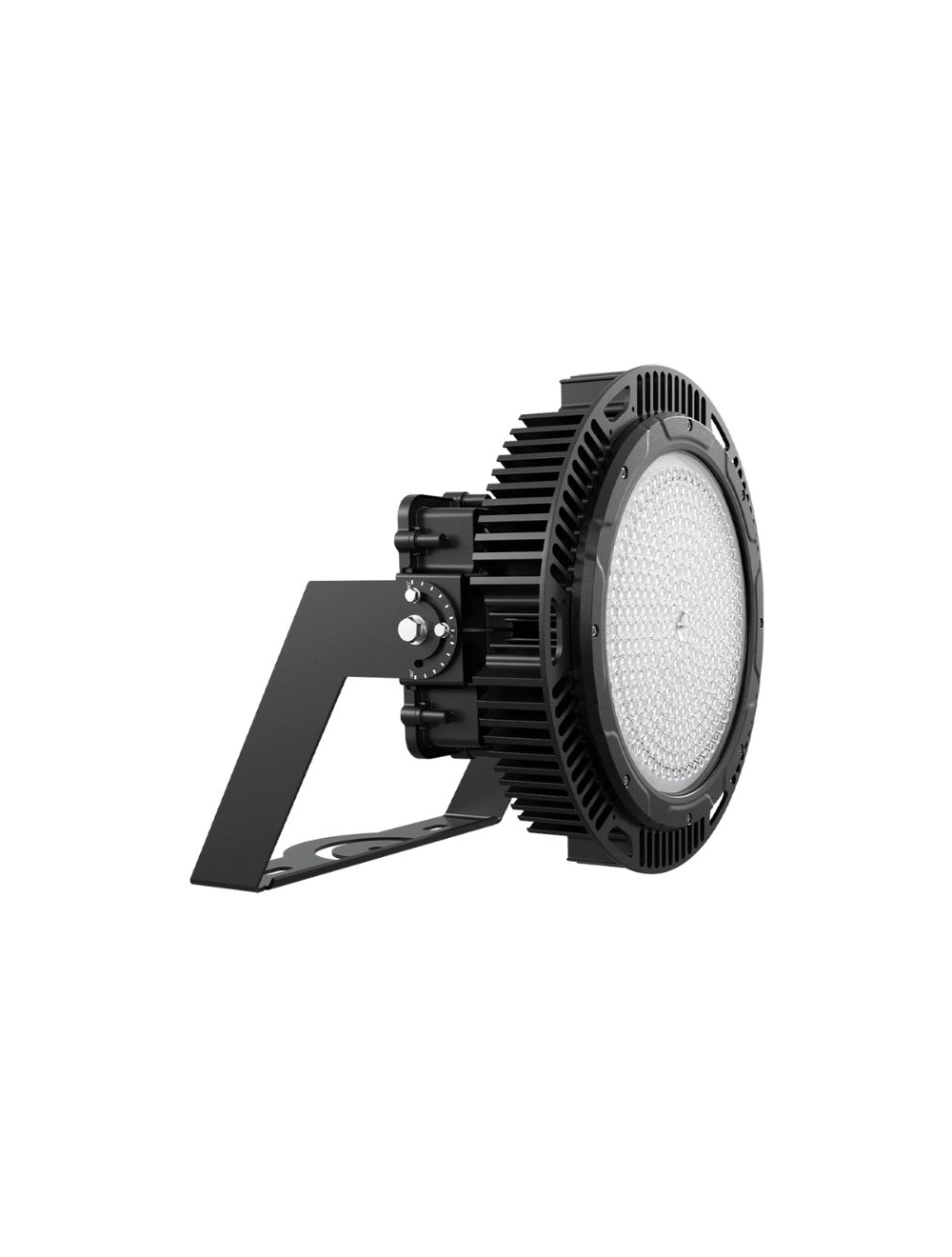

Eiko SIG/450W/750/VD Signal 450 Watt 5000K 277-480 Volt Dimmable Glass Lens Z10 12348

FEATURES
• Up to 104,000 lumens and 177 lpw efficiency
• Lightweight for easy installation
• Multiple distributions available to optimize performance
• Optional visor and reflector help minimize light pollution
• Z10 Receptacle simplifies adding controls
• 20kV surge protection standard

CERTIFICATIONS
• ETL Listed for wet locations
• IP66 Rated
• 3G rated per ANSI C136.31
• DesignLights Consortium Premium Qualified

PERFORMANCE
• Rated lifetime:
        Projected L70: 100,000 hours
        Reported L70: >84,000 hours
        Reported L90: >36,000 hours
• Up to 80,600 lm @ 450W
• Up to 104,500 lm @ 600W
• 4000K, 5000K CCT
• CRI: >70

ELECTRICAL
• Input voltage: 120-277V, 277-480V
• 0-10V dimming
• Power Factor: >0.9
• THD: <20%
• 10kV driver, plus 20kV supplemental surge protection

THERMAL
• -40°F to 122 °F (-40°C to 50°C) operating temperature

CONSTRUCTION
• Cold forged aluminum heatsink ensures optimal performance
• Stainless steel hardware
• Die-cast aluminum driver housing with multiple points of entry for ease of wiring
• Epoxy e-coat primer and durable polyester powder coat ensure maximum protection
• Ships with 3-ft power and dimming cables

WARRANTY
•  5-year limited warranty. Additional warranty options are available. Contact EiKO for details

APPLICATIONS
• Warehouses
• Manufacturing Plants
• Distribution centers
• Hangars
• High Mast
• Bridges, Monuments, Facades
• Rail, Shipping, Work Yards
• Construction Sites
• Outdoor Sports Fields
• Stadiums and Arenas
