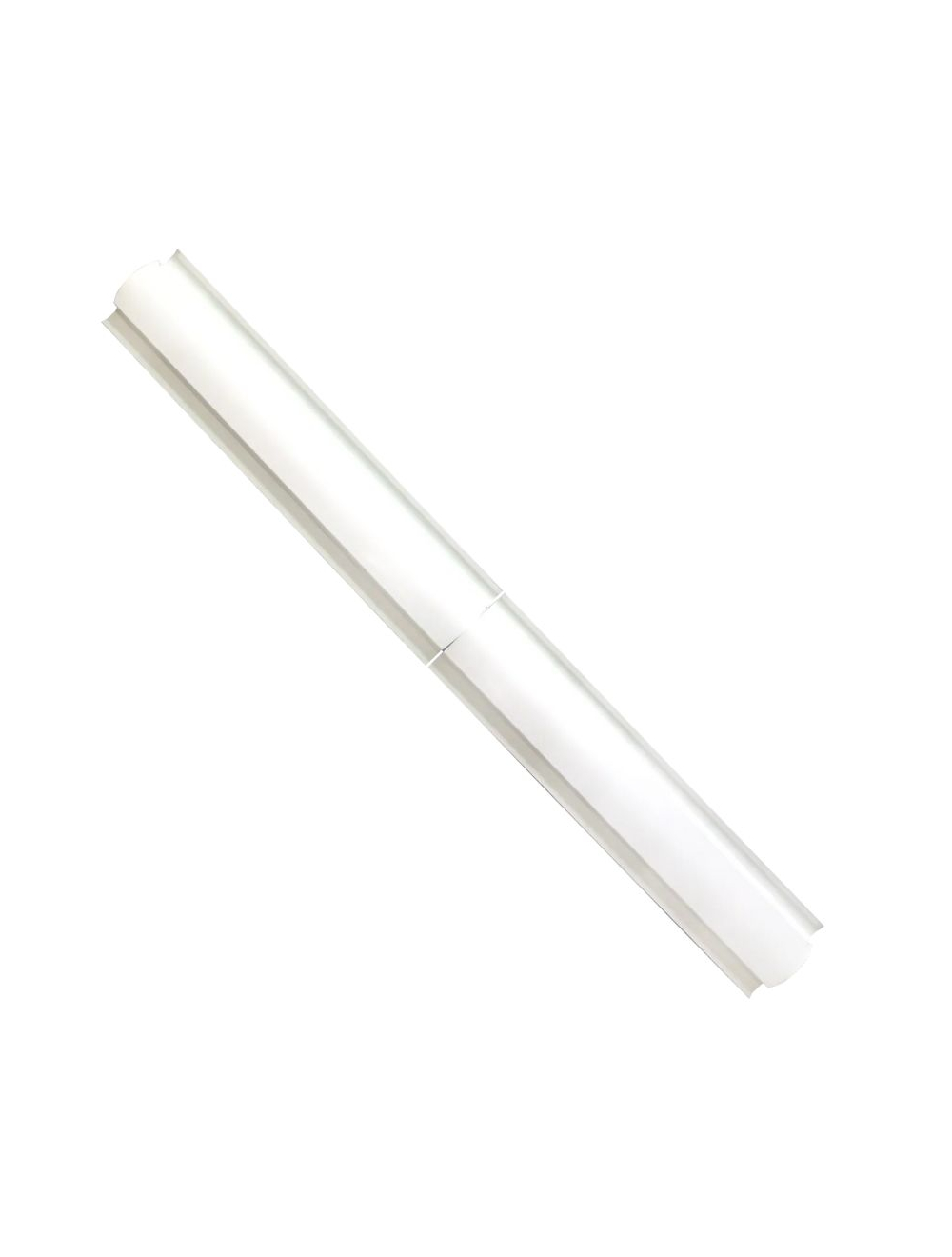

Eiko STR8R/PS88/835/UD Retrofit LED Strip Wattage Selectable 3500K 120-277 Volt Dimmable 11366
The EIKO Linear Strip Retrofit (STR-R) is an efficient lighting solution designed to update existing fluorescent strip fixtures with advanced LED technology.
HIGHLIGHTS
• Designed for easy installation on existing fluorescent strip fixtures, providing a quick update to the latest in LED performance without the need for all-new fixtures
• Available for 4' and 8' applications
• Designed for fixtures between 4.25" and 5.25" wide
• Up to 50% energy savings over fluorescent fixtures
• Up to 130 lm/W
• PowerSet feature allows for multiple "set and forget" lumen stops in each fixture
• FieldCCeT feature allows for multiple "set and forget" CCT options in each fixture
CERTIFICATIONS
• UL Certified for US & Canada
• RoHS Compliant
• FCC Compliant
• ICES-005 Compliant
• Damp Location Certified
• DesignLights Consortium Qualified - meets DLC requirements for efficacy and lumen maintenance
PERFORMANCE
• High Efficacy, up to 130 lm/W
• Available in PowerSet models: power-selectable 44/35/27/22W or 88/68/54W
• Available in single CCT models: 3500K or 4000K or FieldCCeT models: field-selectable CCT 35/40/5000K
• CRI: >80
• Estimated L70: >100,000 Hours
ELECTRICAL
• Input voltage: 120-277V
• 0-10V dimming, dim-to-off
• 12Vdc, 60mA power for controls
• Power Factor: >0.9
• THD: <20%
THERMAL
• -22°F to 122°F (-30°C to 50°C) ambient operating temperature
CONSTRUCTION
• Die-formed cold-rolled steel with gloss white powder-coated finish
• Extruded acrylic lens for uniform illumination and visual comfort
WARRANTY
• 5-year limited warranty available online. Please contact your EiKO sales representative for additional details.
APPLICATIONS
• Storage areas
• Utility areas
• Coves
• Display cases
• Retail
• Task lighting
• General area lighting
KEY FEATURES
EASY INSTALLATION
Designed for easy installation on existing fluorescent strip fixtures, providing a quick update to the latest in LED performance without the need for all-new fixtures.
POWERSET AND FIELDCCET
The PowerSet feature allows for multiple "set and forget" lumen stops in each fixture, and the FieldCCeT feature allows for multiple "set and forget" CCT options in each fixture.
MULTIPLE SIZES
Available in 4' and 8' applications.
| Part Number | STR8R/PS88/835/UD |
|---|---|
| Manufacturer | Eiko |
| Watts | 54 Watts, 68 Watts, 88 Watts |
| Lumens | Variable, See Spec Sheet |
| CRI | 80 |
| Color Temperature | 3500 Kelvin |
| Dimmable | Yes |
| Input Voltage | 120V-277V |
| Rated Life | 100,000 hours + |
| Minimum Operating Temperature | -4℉ |
| Maximum Operating Temperature | 113℉ |
| Dimensions | 95.44" x 2.36" x 5.9" |
| Length | 95 |
| Width | 2 |
| Height | 6 |
| Certifications |    |
| Warranty | 5 Year |
| UPC Code | 031293113665 |
| Lead Time | In Stock - Quick Ship |
