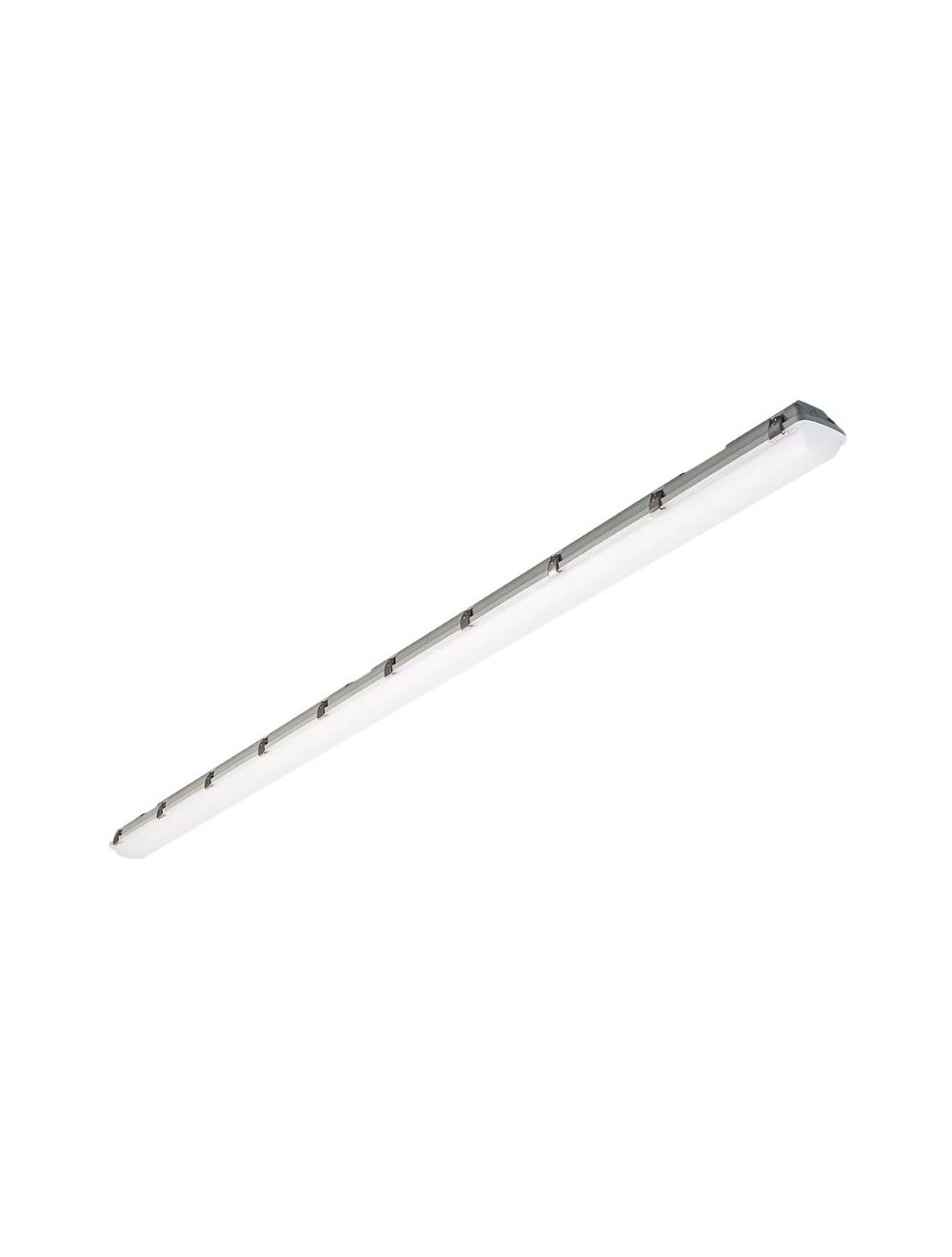

Eiko VP3-8PS90-40-H Vapor Proof Fixture 8' Wattage Selectable 4000K 120-347 Volt Dimmable 13746

HIGHLIGHTS
• Easily add a behind-the-lens standalone control solution; minimal wiring required
• Available in 2', 4', and 8' lengths, aids in standardizing appearance when mixing fixtures of different lengths
• Compatible with factory-installed battery backups
• V-hooks and surface mounting clips included
• Stainless steel clips
• Cable gland included for sealing power cable entry, knockout plug accessory available
• 2 - 1/2" knockouts, one on each end
• Frosted polycarbonate lens eliminates glare
• PowerSet feature allows for multiple lumen stops out of the box
• FieldCCeT features provide multiple color temperature settings in one fixture

CERTIFICATIONS
• UL listed for US & Canada
• RoHS Compliant
• FCC Compliant
• ICES-005 Compliant
• Wet Location
• IP66 Rated
• IK10
• NEMA4X Rated
• DesignLights Consortium Qualified (Primary Use Designation: Direct Linear Ambient Luminaires) - meets DLC requirements for efficacy and lumen maintenance
• DesignLights Consortium Premium Qualified (Primary Use Designation: Stairwell and Passageway Luminaires) - meets the requirements for the highest DLC qualification for efficacy and lumen maintenance
• NSF listed for Splash Zone and Non-Food Zone

PERFORMANCE
• High efficacy, up to 140 lm/W
• Available in PowerSet models: power-selectable 25/20/15W, 45/35/26W, 65/60/55W or 90/75/65W
• Available in single CCT models: 4000K or 5000K or FieldCCeT models: field-selectable CCT 35/40/5000K
• CRI: >80
• Beam Angle: 110°
• Estimated L70: 100,000 Hours

ELECTRICAL
• Input voltage: 120-347V
• 0-10V dimming, dim-to-off
• 12VDC Aux,100mA max
• Surge protection: 2.5 kV
• Power factor: >0.9
• THD: <20%

THERMAL
• -40°F to 122°F (-40°C to 50°C) ambient operating temperature, suspended mount
• -40°F to 113°F (-40°C to 45°C) ambient operating temperature, surface mount
• Ambient operating temperature with sensor (see selected sensor datasheet)

CONSTRUCTION
• Durable polycarbonate lens and grey housing for demanding environments
• Stainless steel lens clips

WARRANTY
• 5 Year limited warranty available online. Contact your EiKO sales rep for additional details.

APPLICATIONS
• Parking Garage
• Barns
• Utility Lighting
• Stairwells
• Warehouses
• Industrial/Commercial
• Low Bay

KEY FEATURES

BATTERY BACKUPS
Compatible with internal battery backups via factory install

MULTIPLE MOUNTING OPTIONS
Comes with V-hook & surface mount clips; cable gland for sealing power cable; anchors and mounting screws, and washers

SENSOR COMPATIBILITY
Easily add a behind-the-lens standalone control solution; minimal wiring required. Other control solutions available using one of the 2-1/2" knockouts

ENVIRONMENTAL PROTECTION
IP66 rated, resistant to corrosion (NEMA4X), stainless steel clips
