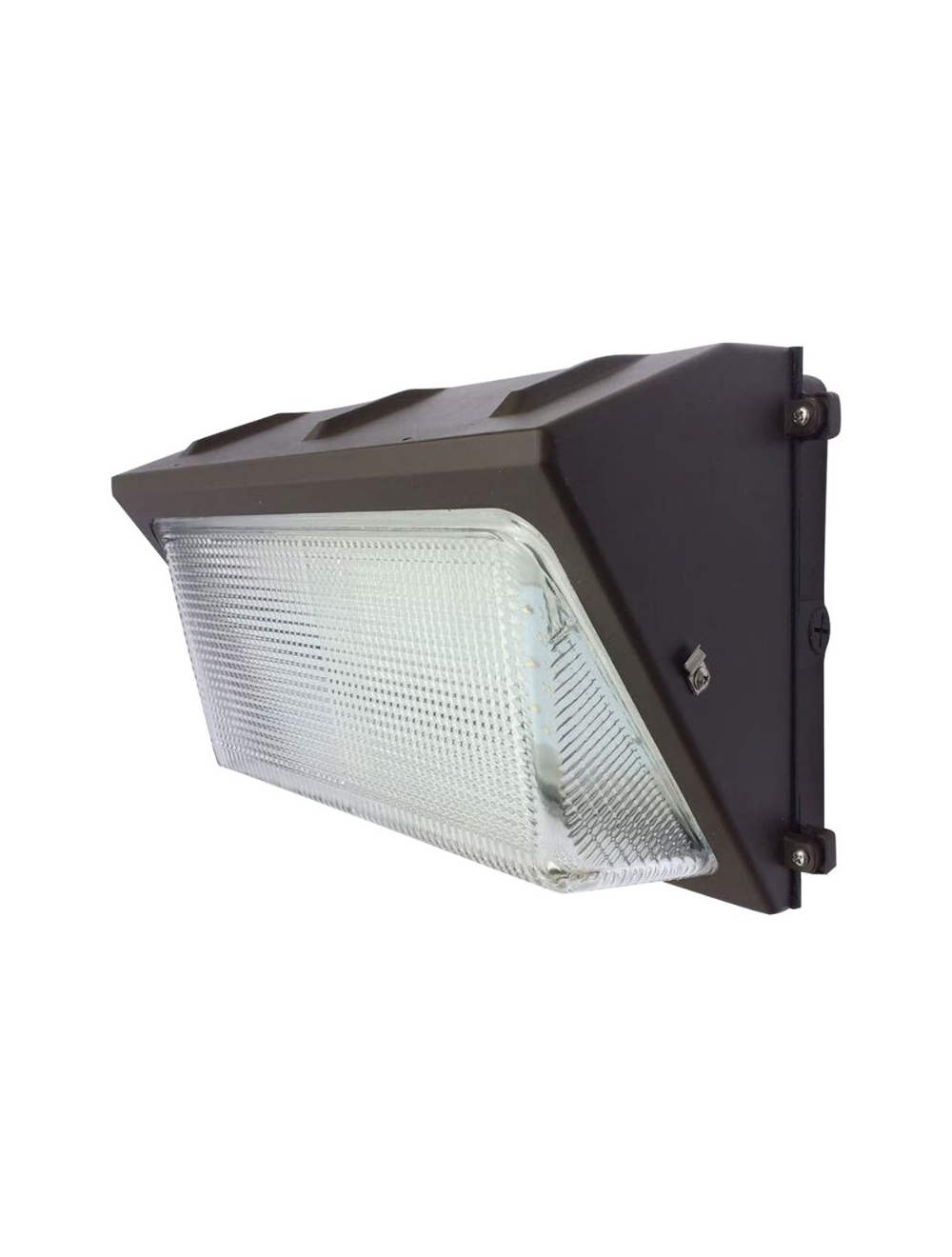

Eiko WMG-2C LED Glass Wallpack 40 Watt 2CCT Selectable 347-480 Volt Dimmable Bronze Finish

The WMG LED Wallpack Glass series by EiKO offers durable, energy-efficient lighting solutions for outdoor and industrial environments. These wall packs feature UV-stabilized bronze finishes, long-lasting LED technology, and an IP65 rating for wet locations.

$100.56

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

WMG-2C

CCT

4000K

5000K + $14.47

Qty:

Details

DESCRIPTION
• Dimming standard on 3C, 4C and 5C models
• UV stabilized powder-coated bronze finish
• Enclosure and hardware are corrosion-resistant

LISTINGS
• UL Listed for wet locations
• IP65 Rated

LED CHARACTERISTICS
• Rated lifetime L70: 50,000 hours
• 4000K, 5000K CCT
• CRI: 70+

ELECTRICAL
• Input voltage: 120-277V; 347-480V
• Power Factor: >.90
• THD: <20%

THERMAL
• -40°F to 104°F (-40°C to 40°C) operating temperature

CONSTRUCTION
• Die-cast aluminum body with traditional HID appearance
• Multiple 1/2" NPS entry points for conduit and accessories
• Fully sealed and gasketed
• Borosilicate tempered glass lens

WARRANTY
• 5 year limited warranty; see eiko.com for warranty details

APPLICATIONS
• Industrial Parks
• Loading Docks
• Utility Sheds
• Entryways
• Walkways
• Storage Areas
• Security

PRODUCT OPTIONS
• WMG-2C-40K-V — 4000K — Order Code: 09807
• WMG-2C-50K-V — 5000K — Order Code: 09596

Specifications

More Information
Part Number	WMG-2C
Manufacturer	Eiko
Watts	40 Watts
Lumens	4600
CRI	70
Color Temperature	4000 Kelvin, 5000 Kelvin
Input Voltage	347-480V
Rated Life	50,000 hours +
Minimum Operating Temperature	-40℉
Maximum Operating Temperature	104℉
IP_Rating	IP65
Dimensions	15.5" x 9" x 12"
Length	16
Width	9
Height	12
Certifications
Warranty	5 Year
UPC Code	031293098078
Lead Time	In Stock - Quick Ship
