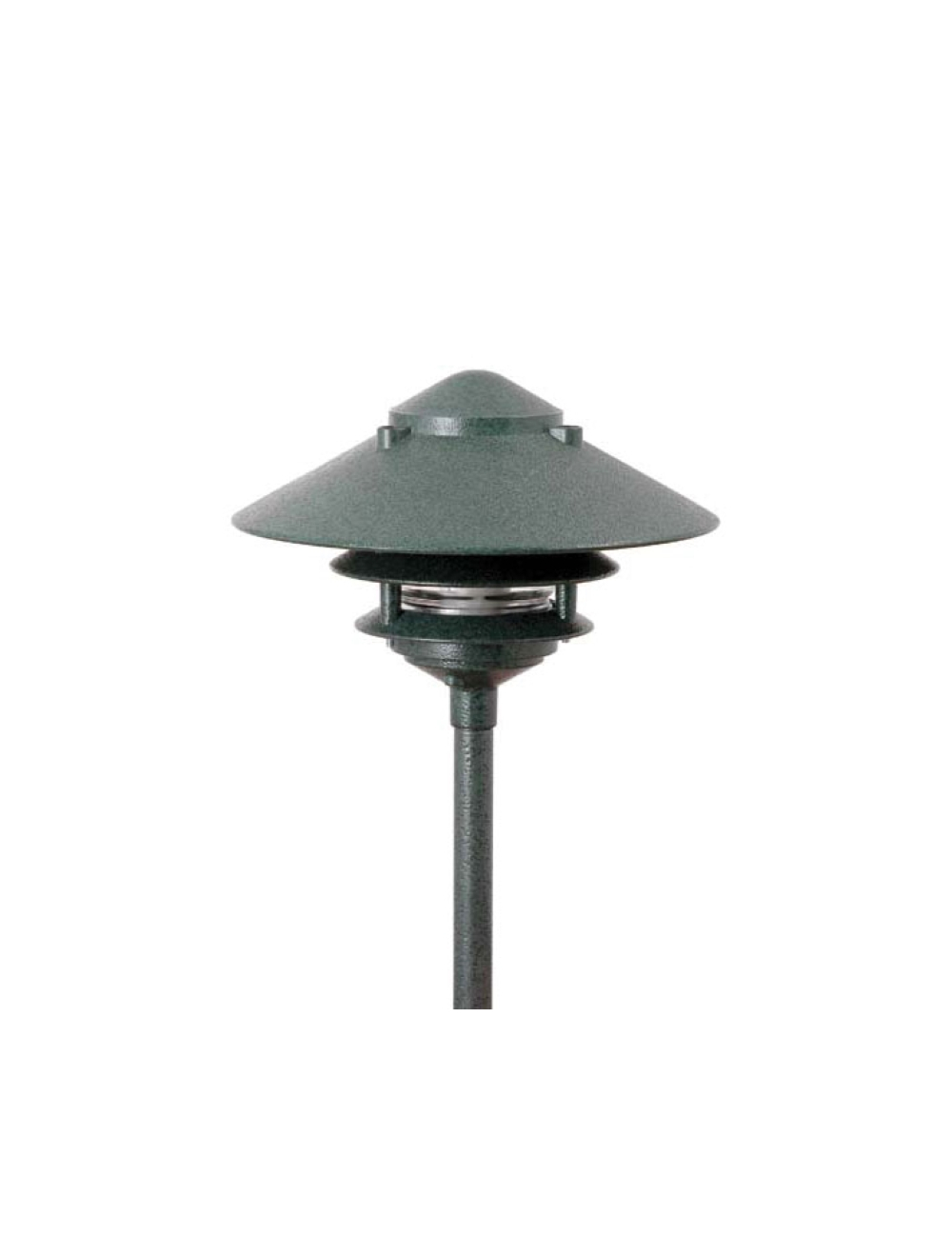

Focus AL-03-3T-10 10" 3 Tier Aluminum Pagoda Hat Area Pathway Light
The Focus AL-03 Pagoda Pathway Light features a classic tiered design with durable construction, providing elegant and reliable illumination for outdoor walkways and landscapes.
Construction: Cast aluminum Pagoda Hat with matching extruded aluminum stanchion. Two, Three, or Four tier models are available.
AL-03 Lens: 3.25" tall clear prismatic polycarbonate
AL-03-3T Lens: 5" tall clear tempered glass
AL-03-4T Lens: 7" tall clear tempered glass
Socket: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v, both with 200°C silicone lead wires
Wiring: Black 3-foot 18/2 zip cord from base of fixture (12v only) For 25-foot 16/2 fixture lead wire add -25F to catalog number. 120v Standard wiring.
Connection: FA-05 Quick Connector (not supplied) from fixture to the main cable (12/2, 10/2, or 8/2 only) 12v only.
Mounting: FA-03 black 9" ABS stake, tapped 1/2" NPS
Finish: Black texture polyester powder coat. Optional finishes are available.
| Part Number | AL-03-3T-10 |
|---|---|
| Manufacturer | Focus Industries |
| Input Voltage | 120V, 12V |
| Dimmable | No |
| Dimensions | 10" x 14.25" |
| Warranty | 3 Year |
| Lead Time | Build Item 3-4 Weeks |
