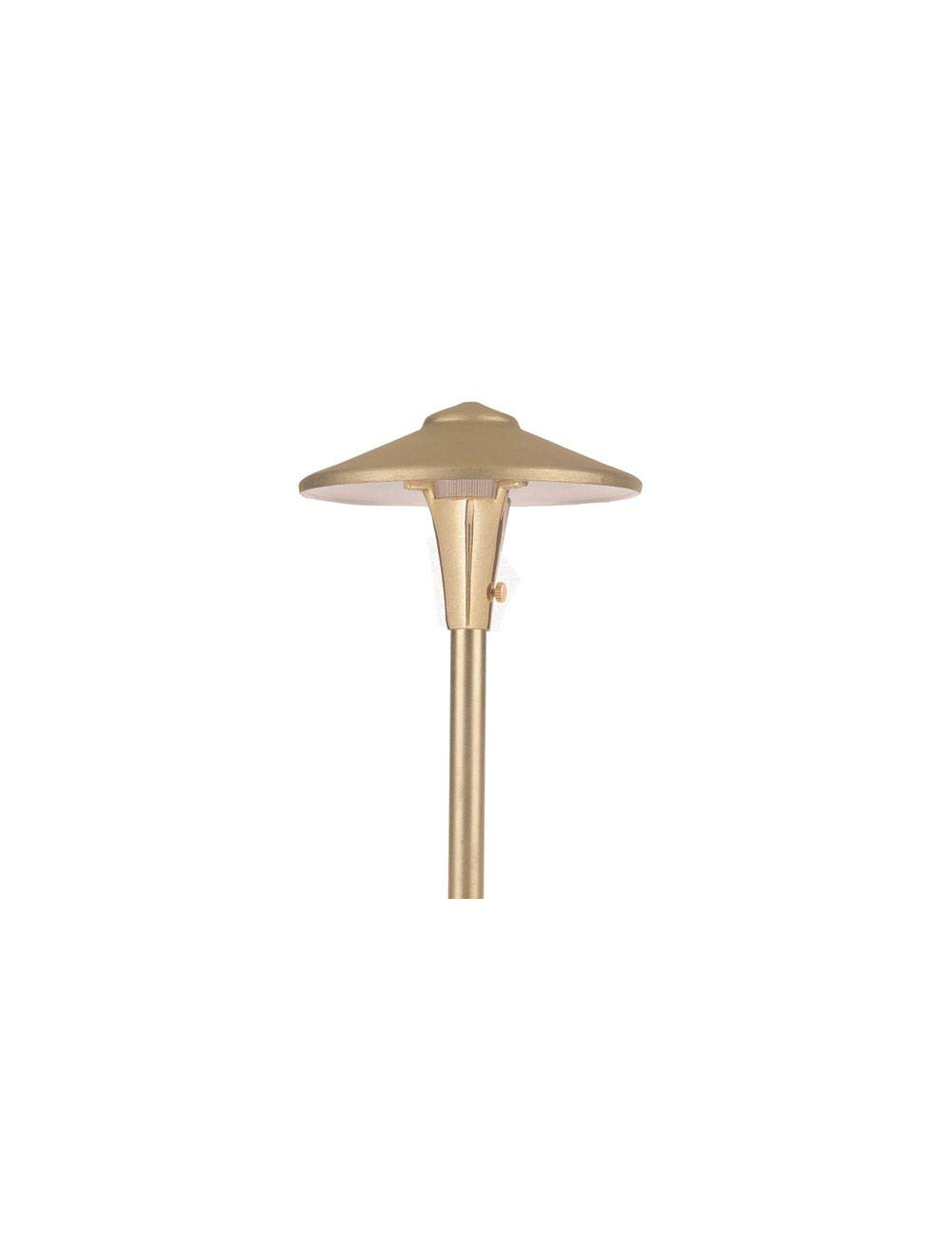

Focus AL-04-BRS 7.5" China Hat Area Pathway Light Brass 12/120 Volt with Custom Finish Options
The Focus AL-04 China Hat Pathway Light combines a sleek, wide-brim design with durable materials, delivering stylish and effective illumination for outdoor pathways and gardens.
Construction: Cast aluminum or cast brass China Hat; matching extruded aluminum or brass stanchion
Socket: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v, both with 200° C silicone lead wires
Wiring: Black 3 foot 18/2 zip cord from base of fixture (12v only) For 25 foot 16/2 fixture lead wire add -25F to catalog number. 120v standard wiring
Connection: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only) 12v only
Mounting:
Aluminum Models: FA-03 black 9" ABS stake, tapped 1/2" NPS
Brass Models: FA-03-LG black 9" ABS stake, tapped 1/2" NPS
Finish: Aluminum-Black texture polyester powder coat. Optional finishes are available. Brass-Unfinished brass. Optional finishes are available.
| Part Number | AL-04-BRS |
|---|---|
| Manufacturer | Focus Industries |
| Input Voltage | 120V, 12V |
| Dimmable | No |
| Rated Life | 50,000 hours + |
| Dimensions | 16.25" x 7.5" |
| Certifications |    |
| Warranty | 3 Year |
| Lead Time | Build Item 3-4 Weeks |
