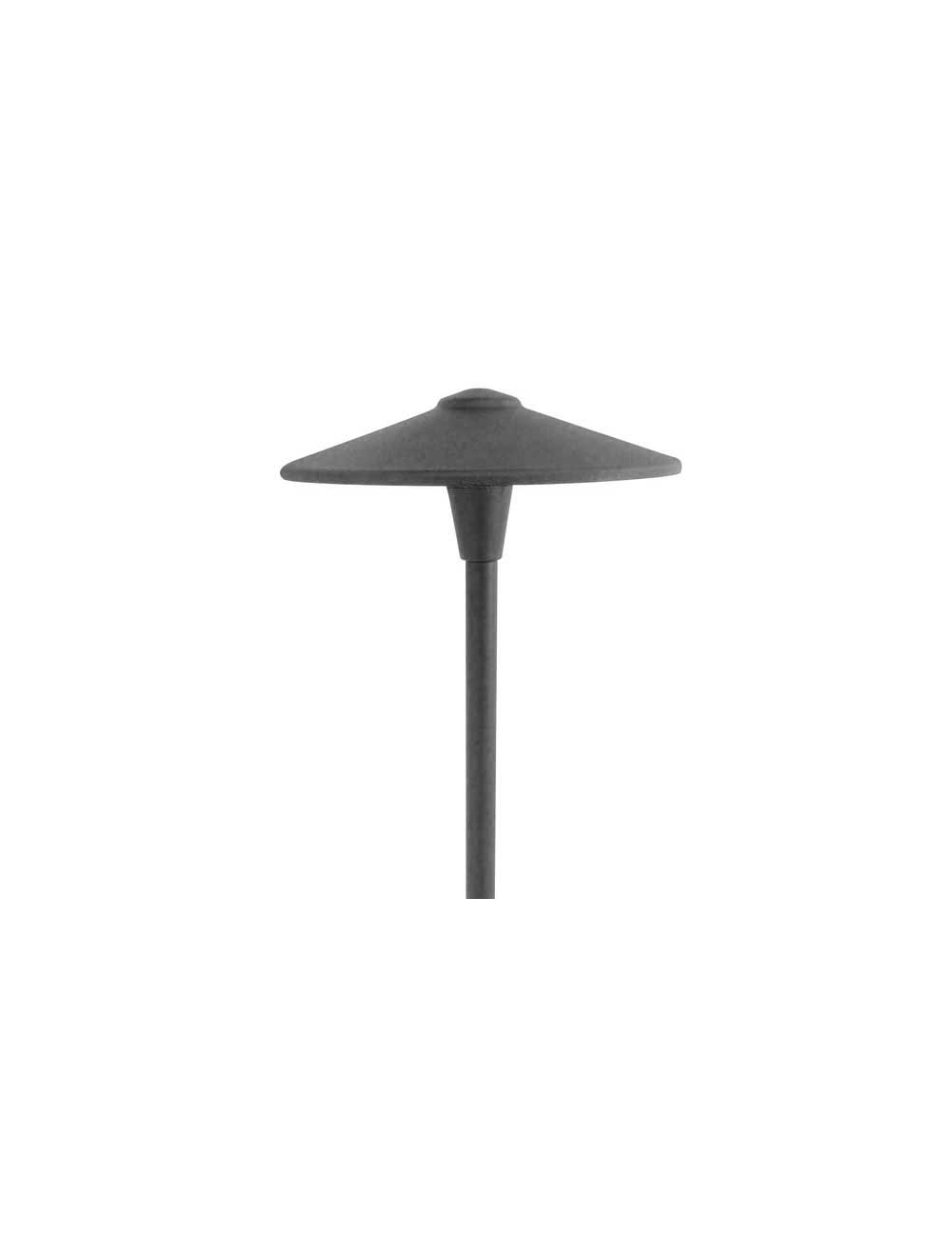

Focus AL-05 10" Aluminum China Hat Area Pathway Light 12/120 Volt with Custom Finish Options
The Focus AL-05 China Hat Pathway Light features a refined, wide-brim design with robust construction, offering efficient and elegant lighting for outdoor landscapes and walkways.
Construction: Cast aluminum or cast brass China Hat; matching extruded aluminum or brass stanchion
Socket: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s);
double contact bayonet base (Ba15d) for 120v, both with 200°C silicone lead wires
Wiring: Black 3-foot 18/2 zip cord from base of fixture (12v only) For 25-foot 16/2 fixture lead wire add -25F to catalog number. 120v Standard wiring
Connection: FA-05 Quick Connector (not supplied) from fixture to the main cable (12/2, 10/2, or 8/2 only) 12v only
Mounting: FA-03 black 9" ABS stake, tapped 1/2" NPS
Finish: Aluminum-Black texture polyester powder coat. Optional finishes are available. Brass-Unfinished brass. Optional finishes are available.
| Part Number | AL-05 |
|---|---|
| Manufacturer | Focus Industries |
| Input Voltage | 120V, 12V |
| Dimmable | No |
| Rated Life | 50,000 hours + |
| Dimensions | 19" x 10" |
| Certifications |    |
| Warranty | 3 Year |
| Lead Time | Build Item 3-4 Weeks |
