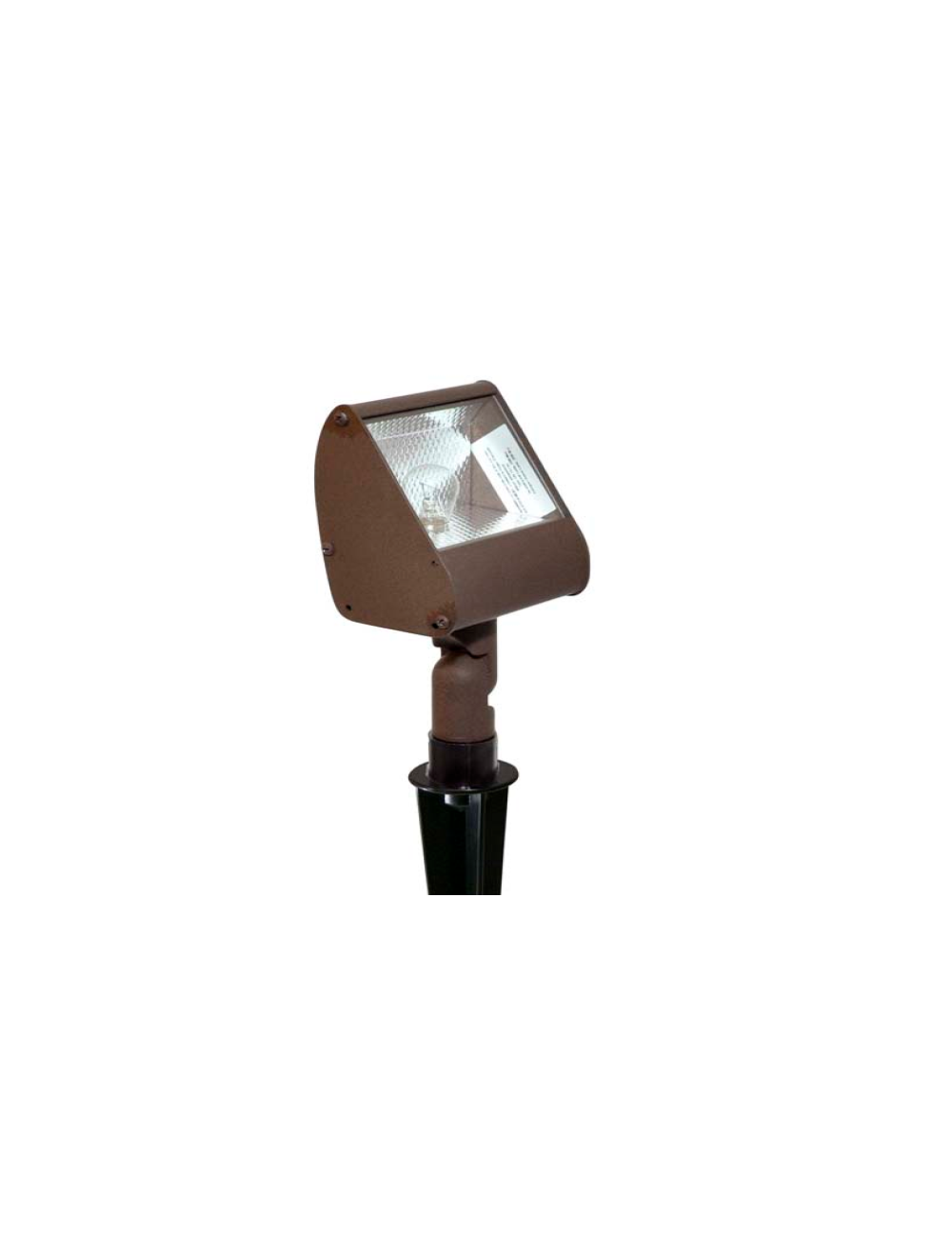

Focus DL-04 LED Aluminum Landscape Uplight 12/120 Volt with Custom Finish Options
The Focus DL-04 LED Directional Light offers sleek, energy-efficient illumination with precision control, perfect for highlighting your favorite features with a modern touch.
Construction: Extruded aluminum; stamped brass, copper or stainless steel; matching cast aluminum or brass adjustable swivel (copper has cast brass swivel)
Reflector: Diamond embossed specular aluminum LENS: Brass/Copper/SS - clear tempered glass; Aluminum - high impact clear acrylic
SOCKET: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v., both with 200°C silicone lead wires
Wiring: Black 3 foot 18/2 zip cord from base of fixture (12v. only) For 25 foot 16/2 fixture lead wire add -25F to catalog number. 120v standard wiring
Connection: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only) 12v. only
Mounting: FA-03 black 9" ABS stake threaded 1/2" NPS
Finish: Aluminum-Black texture polyester powder coat. Optional finishes available Brass-Unfinished brass. Optional finishes available
| Part Number | DL-04 |
|---|---|
| Manufacturer | Focus Industries |
| Lumens | Lamp Dependent |
| Input Voltage | 120V, 12V |
| Dimmable | No |
| Dimensions | 6.3" x 3.7" |
| Warranty | 3 Year |
| Lead Time | Build Item 3-4 Weeks |
