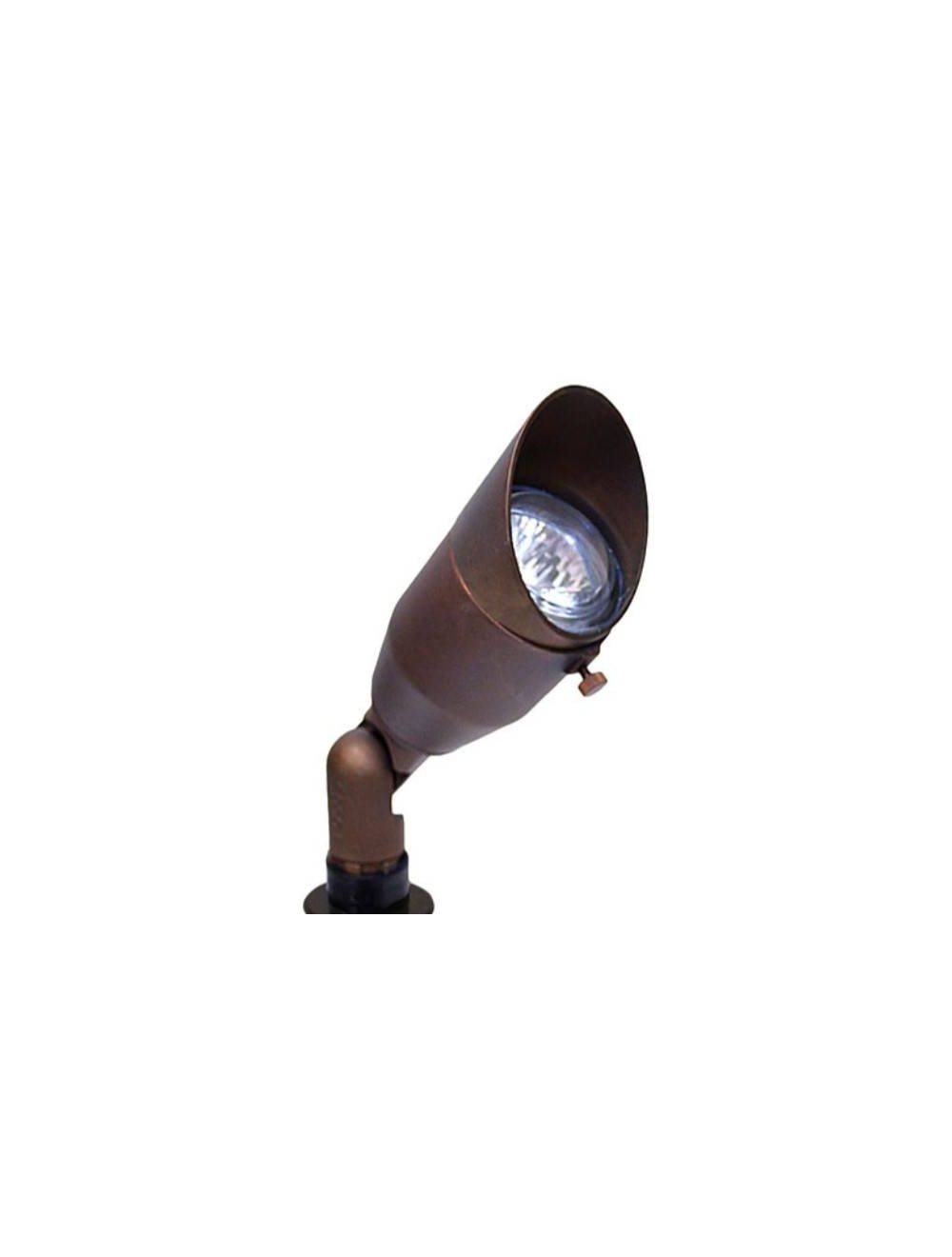

Focus DL-22-BLT Cast Aluminum Uplight LED 12/120 Volt MR16 Base with Custom Finish Options
CONSTRUCTION: Cast aluminum, brass or 316 Stainless Steel Bullet; matching heavy-duty cast aluminum, brass or 316 Stainless Steel adjustable swivel
LENS: High impact clear tempered convex glass
O-RING: High-temperature red silicone
12 VOLT SOCKET: High-temperature ceramic GU5.3 bi-pin with 250°C silicone lead wires WIRING: Black 3 foot 18/2 zip cord from base of fixture (12v only) For 25 foot 16/2 fixture lead wire add -25F to catalog number.
12 VOLT CONNECTION: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only)
120 VOLT SOCKET: Med Base - high temperature ceramic medium base with 250°C silicone lead wires; GU10 - high temperature GU10 two pin base with 250°C silicone lead wires
120 VOLT WIRING: Standard 120 volt Black, White and Ground 9" lead wires
MOUNTING: FA-03 black 9" ABS stake threaded 1/2" NPS
FINISH: Aluminum-Black texture polyester powder coat. Optional finishes are available. Brass-Unfinished brass. Optional finishes are available. Stainless Steel - machined finish
| Part Number | DL-22-BLT |
|---|---|
| Manufacturer | Focus Industries |
| Lumens | Variable |
| Beam Angle | 40° |
| Input Voltage | 120V, 12V |
| Dimmable | No |
| Dimensions | 4.5" x 2 |
| Certifications |    |
| Warranty | 3 Year |
| Lead Time | Build Item 3-4 Weeks |
