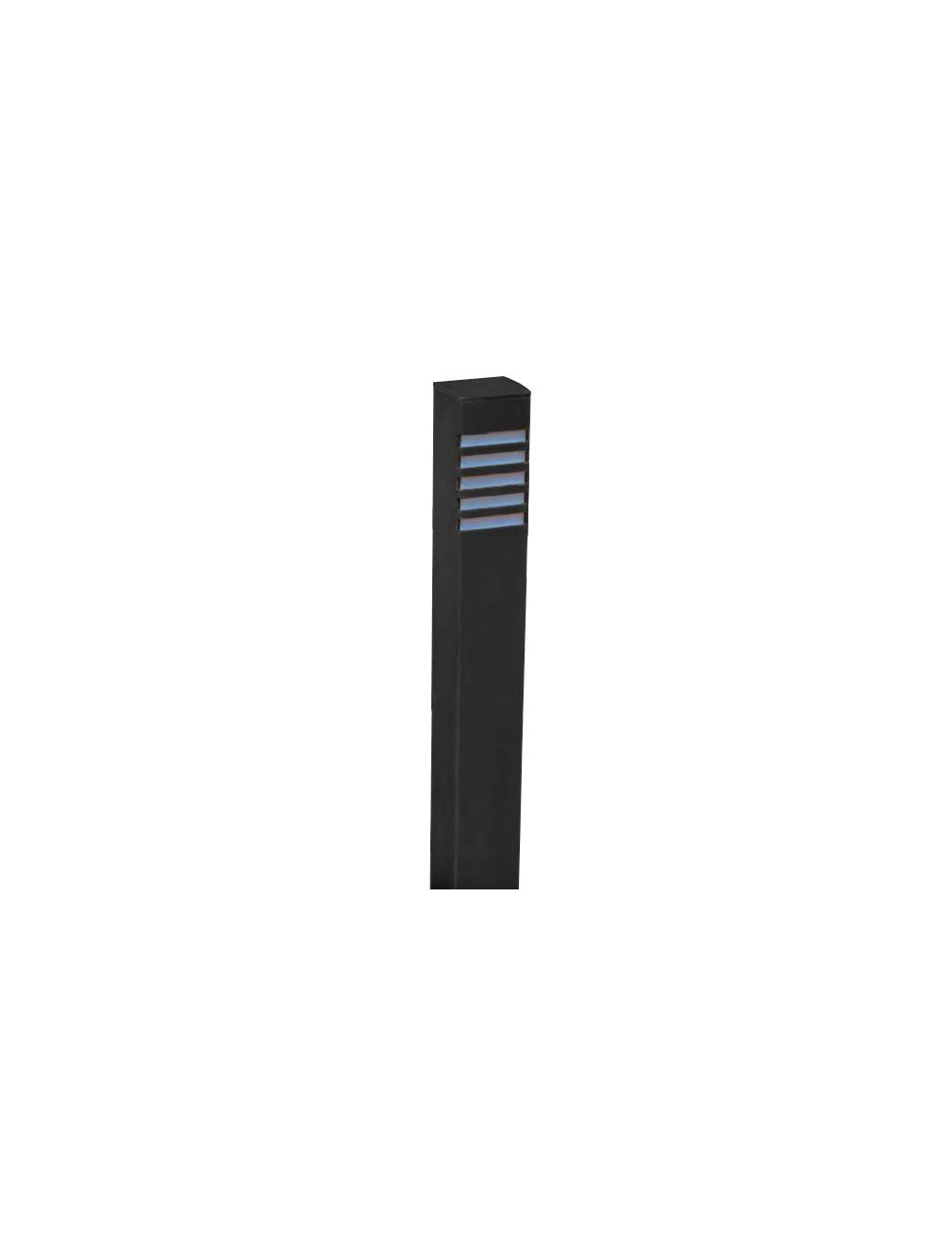

Focus PL-22-BLT Square Aluminum Bollard Pathway Light LED 12v/120v with Custom Finish Options
Focus Bollard Lights combine sleek design with robust illumination, turning your outdoor spaces into a stylishly lit haven that's both safe and inviting.
CONSTRUCTION: Extruded 2.25" square aluminum or brass.
LENS: High-temperature white acrylic LAMP SUPPLIED: 18w S8 #1141; 1200 hours average rating (25w max.)
SOCKET: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v, both with 200° C silicone lead wires.
WIRING: Black 3-foot 18/2 zip cord from base of fixture (12v only) For 25-foot 16/2 fixture lead wire add -25F to catalog number. 120v standard wiring
CONNECTION: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only) 12v only MOUNTING: Angle cut post (PL-22) FA-03 black 9" ABS stake, tapped 1/2" NPS (PL-22-DM)
FINISH: Aluminum - Black texture polyester powder coat. Optional finishes available Brass - Unfinished brass. Optional finishes available
NOTE: Optional 120v to 277v drivers available. Must use FA-26 mounting post or junction box
| Part Number | PL-22 |
|---|---|
| Manufacturer | Focus Industries |
| Input Voltage | 12V |
| Dimmable | No |
| Rated Life | 10,000 hours + |
| Dimensions | 28" x 2.25" |
| Lead Time | Build Item 3-4 Weeks |
