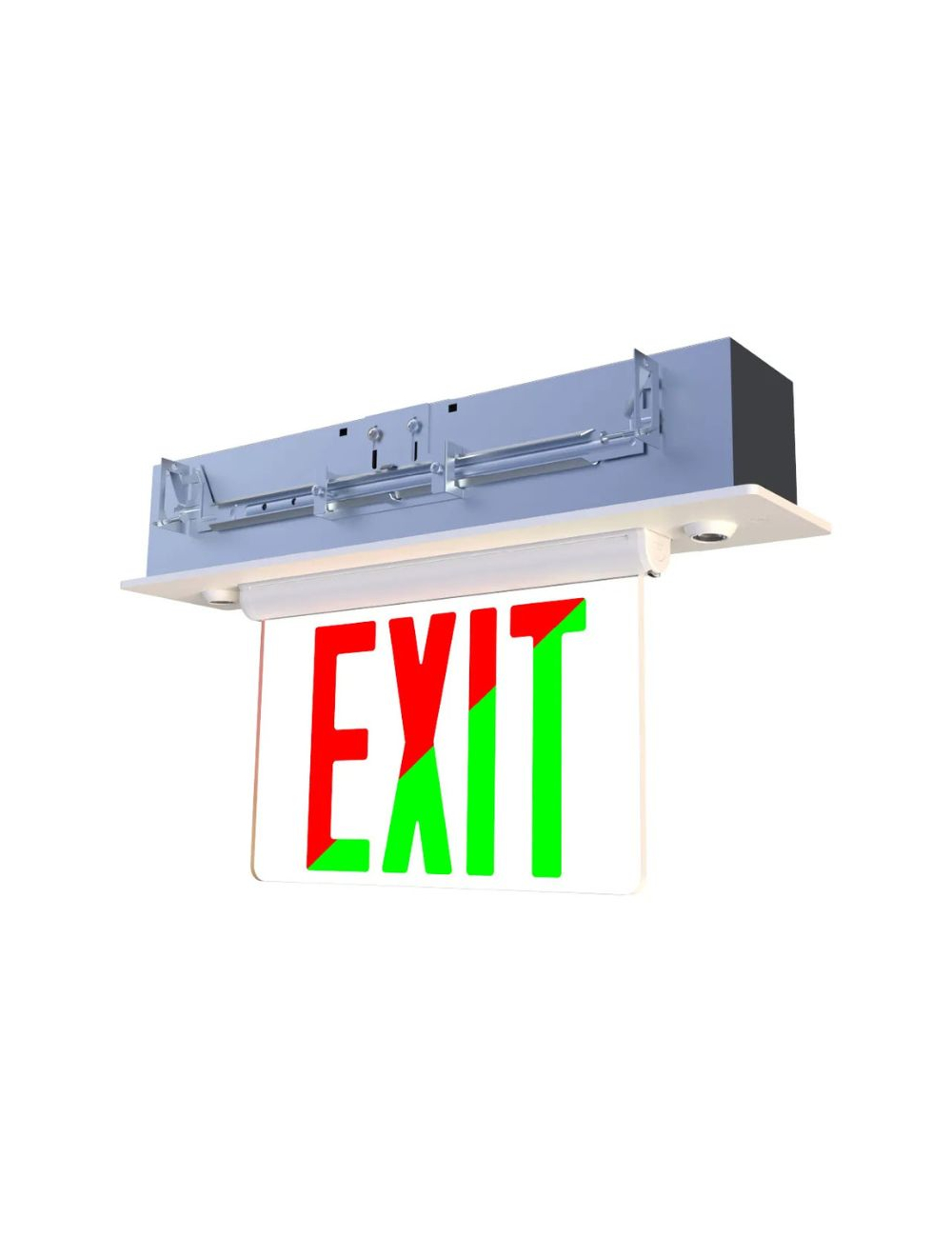

Halco EMG-EDGC-PL-RG Thermoplastic Edgelit Exit/Emergency Combo Red/Green Legend Single/Double Rotating Face White Housing Manual/Self 97138

The field-selectable red/green legend, field-selectable single/double face, field-selectable manual or self-test/self-diagnostics, and recessed mounting include field-selectable applique chevron indicators as well as universal input voltage to provide the most field configurable edgelit exit sign on the market. The pivoting housing design makes it ideal to mount on ceilings or walls in recessed mount configurations, indicating the path of egress for a minimum of 90 minutes after a power loss.

Thermoplastic Edgelit Combo Series
• LED Thermoplastic Edgelit Combination Exit/EM Unit
• Recessed Mount
• Field Selectable Red/Green Legend
• Field Selectable Single/Double Face
• Field Selectable Manual or Self-Test
• Universal Input Voltage
• Field Selectable Chevron Applique Indicators

Electrical
• 120 / 277 VAC, 60Hz input
• Emergency test button and battery charging indicator
• Field-selectable manual test or automatic self-test / self-diagnostics
• Long-life maintenance-free LiFePO4 battery
• 24-hour recharge time
• Battery low voltage circuit protection
• Two 3.2VDC .75Watt fully rotatable lamp heads (1.5W, 460 Lumens total)
• Solid-state transfer circuit

Applications
• Commercial
• Retail
• Hospitality
• Office
• Medical

Construction & Mounting
• White thermoplastic housing with high-grade replaceable acrylic panel
• Long life, high intensity LEDs
• Fully illuminated 6" legend with 3/4" stroke
• Field-selectable applique chevrons
• Suitable for ceiling, end, and wall mount
• Universal J-box mounting pattern on back plate
• Recessed mounting with hanger bars

Certifications
• UL924 damp location listed
• NFPA 101 and NFPA 70
• CEC T20 compliant
• 5°C to 50°C operating temperature

Warranty
• 2-year full warranty
