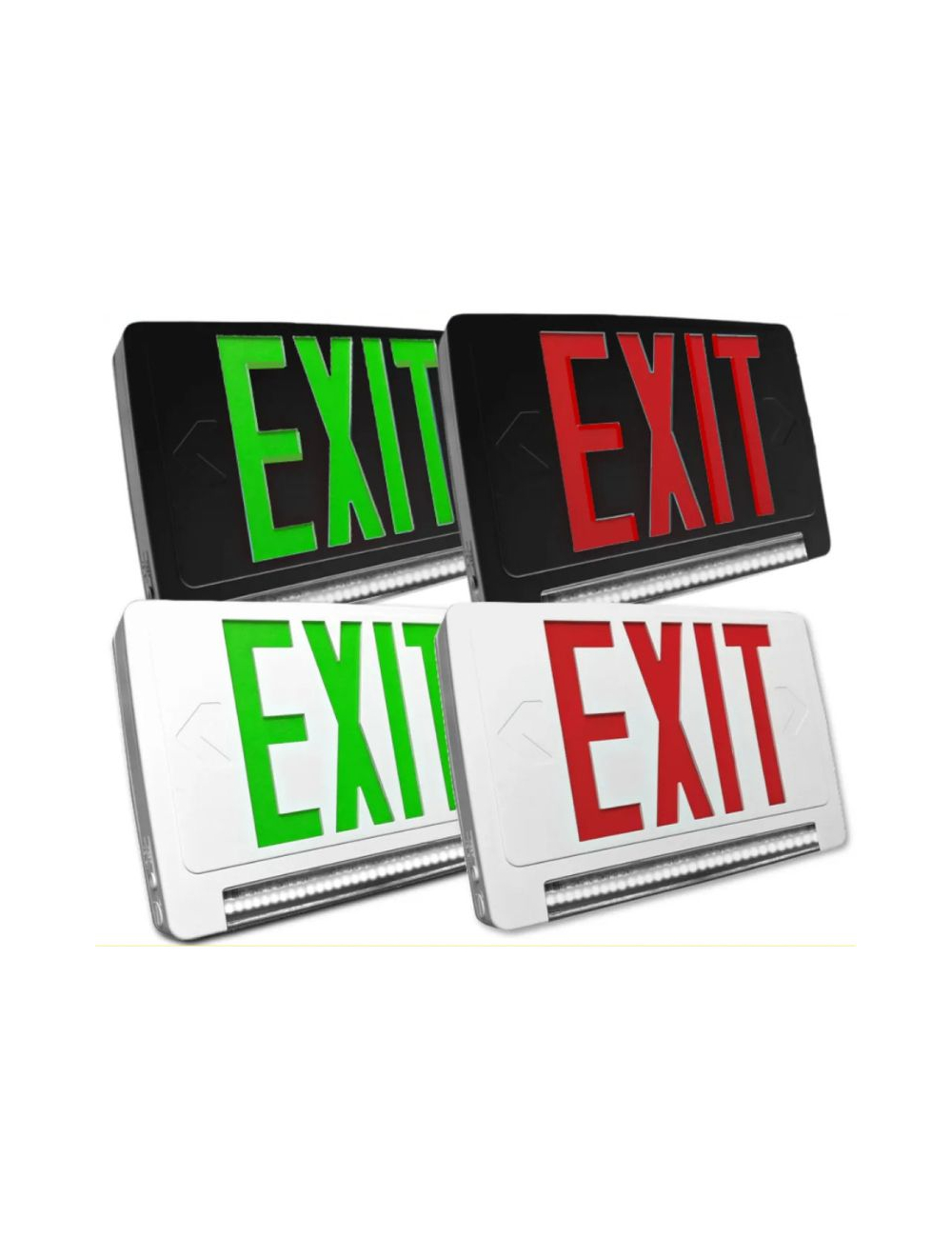

Halco EMG-LBCU-RC-SD LightBar Exit/Emergency Combo Red/Green Legend Single/Double Face White/Black Housing Self-Test & Diagnostics Remote Capacity

The field adjustable lightbar incorporates ultra-bright energy efficient LEDs to yield a combination Exit and Emergency unit perfect for restricted spaces above a doorway. Halco's LightBar Combo is available with a red or green stencil face, field-selectable single/double face, and universal ceiling/wall mount. The fixture includes field-selectable chevron indicators as well as universal input voltage and comes standard with remote capacity. The low-profile design with an included canopy makes it ideal to mount on ceilings or walls in surface or top-mount configurations, indicating the path of egress for a minimum of 90 minutes after a power loss. The LightBar Combo is also offered with optional Self-Test / Self-Diagnostics.

Features
• 90min NiCad Battery backup with Self-Test Self-Diagnostics
• Field Selectable Snap-Out Chevrons
• Ceiling, End, or Wall Mount - Canopy, Mounting Plate & Screws Included
• 5VA Flame-Retardant Thermoplastic Housing
• 1W Remote Capacity for add'l Single Remote Head
• Bright Adjustable 184 lumen LightBar

Emergence Series LightBar Combo
• White or Black LED Thermoplastic Combination Exit Sign / Emergency Unit
• Adjustable Ultra-Bright LightBar
• Red or Green Stencil Face
• Field-Selectable Single/Double Face
• 1W Remote Capacity
• Optional Self-Diagnostics

Electrical
• 120 / 277 VAC, 60Hz Input
• Long-life, maintenance-free NiCad battery
• 24-hour recharge time
• Battery low voltage circuit protection
• Solid-state transfer circuit
• (36) LEDs in an adjustable light bar providing 184 Lumens
• 1W remote capacity
• Optional self-diagnostics

Construction & Mounting
• White or black housing
• Rugged, injection molded, flame-retardant, high-temperature thermolastic
• Fully illuminated 6" legend with 3/4" stroke
• Field-selectable single/double face
• Field-Selectable snap-out chevrons
• Suitable for ceiling and wall mount
• Universal J-Box mounting pattern on back plate
• Canopy Included

Certifications
• UL924 Damp Location listed
• NFPA 101 and NFPA 70
• CEC T20 Compliant

Applications
• Commercial
• Retail
• Hospitality
• Office
• Medical
• Multi-Residential

Product Options
• EMG-LBCU-R-WH-RC-SD — 97133
• EMG-LBCU-G-WH-RC-SD — 97134
• EMG-LBCU-R-BK-RC-SD — 97135
• EMG-LBCU-G-BK-RC-SD — 97136
