The Essential Round Highbay offers the perfect balance of affordability and performance for a wide array of applications, including warehouses, gymnasiums, big box stores, and showrooms.
In addition to its excellent lumen efficacy and longevity, its powder-coated die-cast aluminum housing and polycarbonate lens, along with its IP65 Wet Location rating delivers a robust and high-performing luminaire. Finally, the Essential Round Highbay offers excellent versatility and ease of installation through its included 6' cord and 1/2" NPT steel hook.
Optional Yoke and Pendant Mounts sold separately.

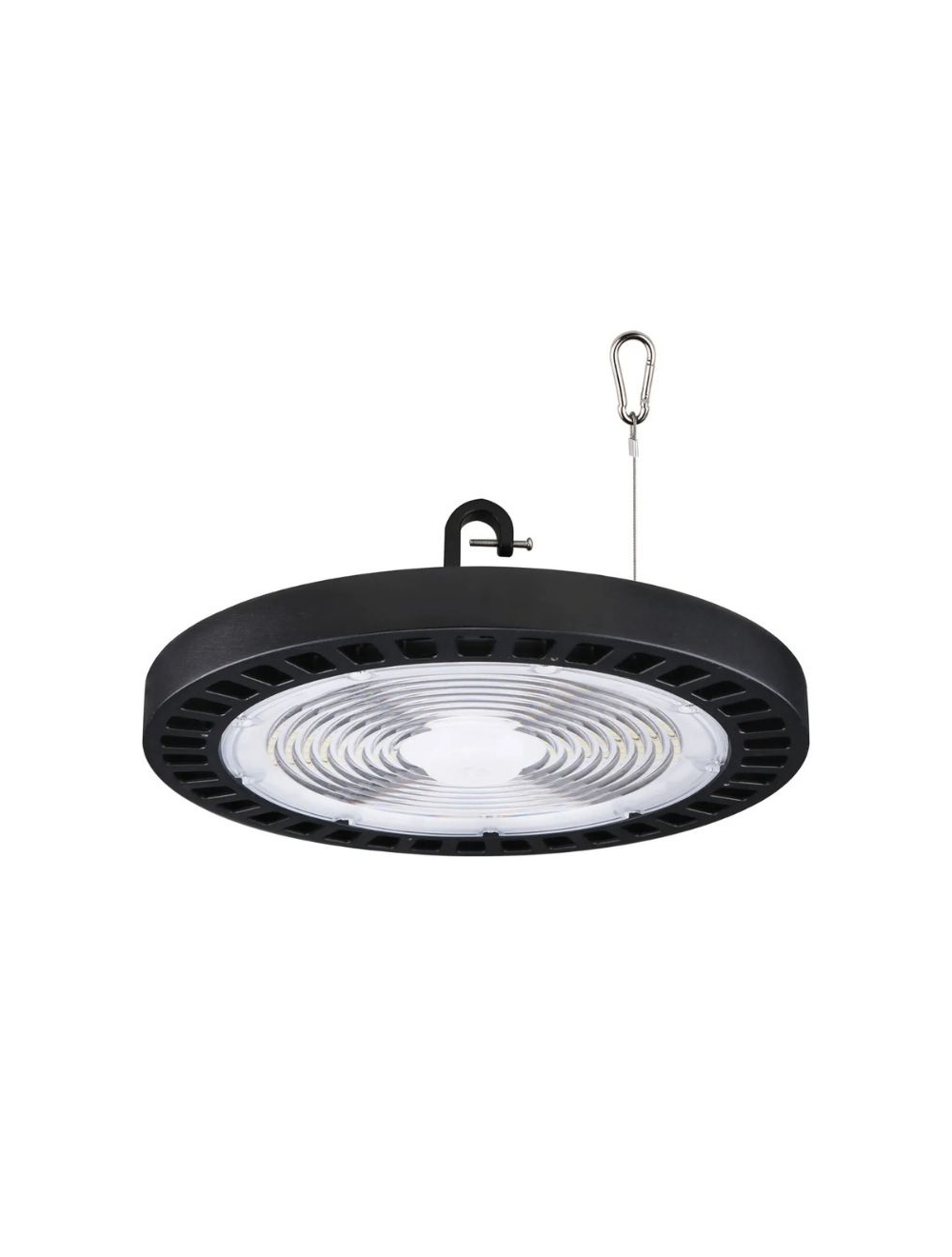

Essential Round Highbay
• Lumen Packages Covering 14,000 to 33,000 Lumens
• Multiple Mounting Options
• Easy Plug and Play DC Bi-Level Motion Sensor
• DLC 5.1 Premium
• "Driver on Top" Design for Greater Heat Dissipation versus Driver on Board (DOB) Products
Performance
• 100, 150, 200, and 240 wattage options
• Lumen efficacy of 138-140
• L70 lumen maintenance of 50,000 hours
• Built in 6kv surge protection
• 5-year limited warranty
• 120-277 VAC Input
• Standard 6' 18/3 shielded power cord
Construction
• DOT (Driver on Top) die-cast aluminum housing with powder coated black finish
• 90-degree polycarbonate (PC) lens
• 1/2" NPT steel hook (standard)
• Yoke mount bracket (accessory)
• Integrated 6kv surge protection
Controls
• 0-10 V dimming standard
• Bi-level motion sensor (accessory)
Certifications
• UL
• cUL
• FCC
• RoHS
• IP65 wet location rated
• DLC 5.1 premium
Applications
• Warehouses
• Gymnasiums
• Big box and retail stores
• Manufacturing
• Showrooms
| Part Number | ERHB-240-50-U |
|---|---|
| Manufacturer | Halco Lighting |
| Watts | 240 Watts |
| Lumens | 33000 |
| CRI | 80+ |
| Color Temperature | 5000 Kelvin |
| Beam Angle | 90° |
| Rated Life | 50,000 hours + |
| IP_Rating | IP65 |
| Input Voltage | 120V-277V |
| Dimmable | Yes |
| Minimum Operating Temperature | -22°F |
| Maximum Operating Temperature | 122°F |
| Dimensions | 12.6" x 3.11" |
| Certifications | ![]() ![]() ![]() ![]() ![]() |
| Warranty | 5 Year |
| UPC Code | 807154373031 |
| Lead Time | In Stock - Quick Ship |
