The Evade Exit Sign Series offers a code-compliant exit sign solution for hallway, stairwell, and other Life Safety applications.
Available with remote capacity.
The low-profile design makes it ideal to mount on ceilings or walls in surface or end mount configurations, indicating the path of egress for a minimum of 90 minutes after a power loss.

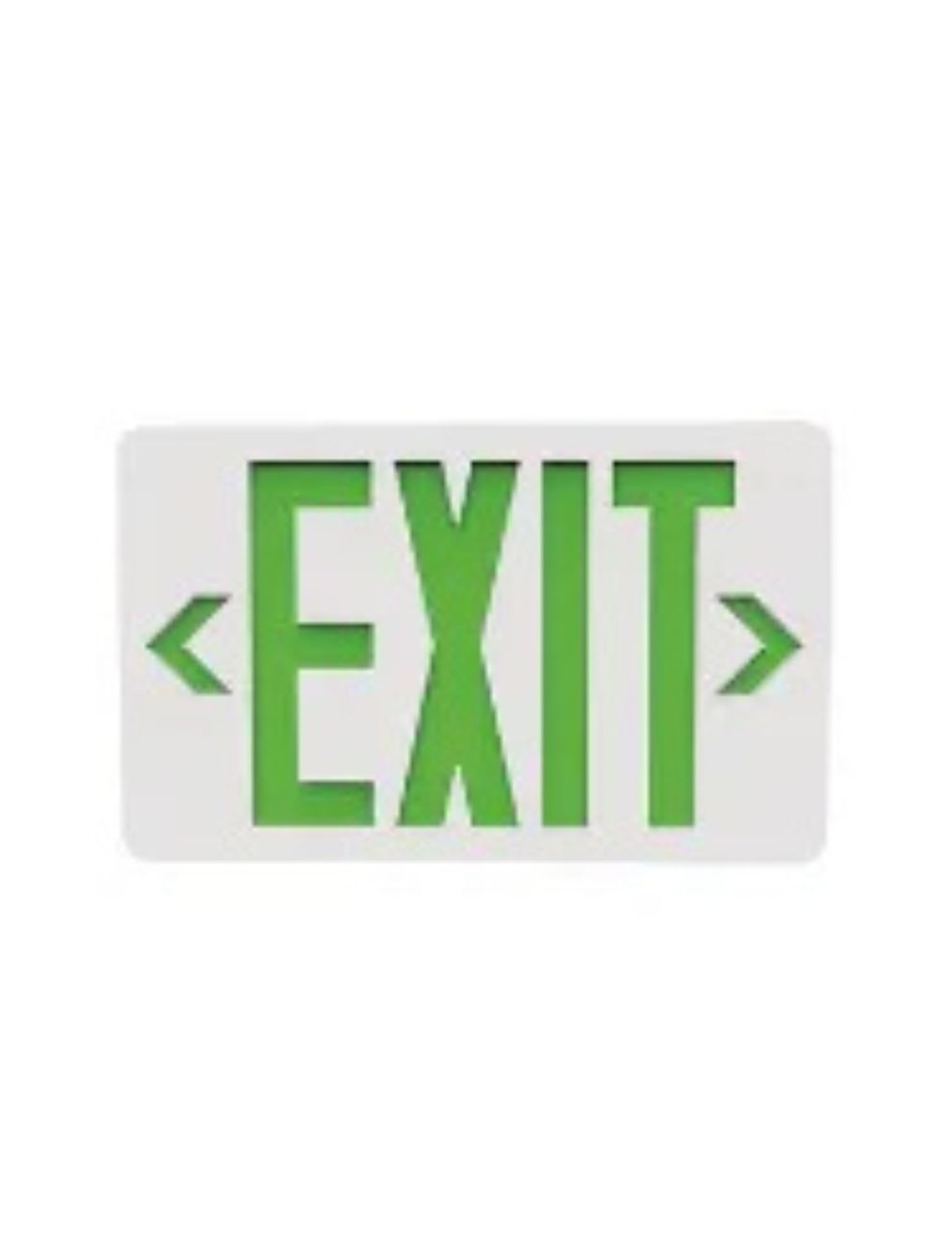

Evade Exit Series
• Compact, Led Thermoplastic Exit Sign
• Choice Of Red or Green Stencil Face
• Remote Capacity Option
• Multiple Mounting Options
• Universal Single / Double Face
• Led Life-Cycle Exceeding 10 Years
Electrical
• 120 / 277 VAC, 60Hz input
• Emergency test button and battery charging indicator
• Long-life maintenance-free NiCad battery
• 24-hour recharge time
• 10°C - 40°C operating temperature
Construction & Mounting
• Rugged, injection-molded, flame-retardant, high-temperature, white thermoplastic housing
• Fully illuminated 6" characters with 3/4" stroke
• Field-selectable, snap-in and out chevrons
• Suitable for wall, ceiling, and end mount
• Universal J-Box mounting pattern on back plate
Certifications
• UL924 Damp Location listed
• NFPA 101 and NFPA 70
• CEC T20 Compliant
| Part Number | EV-EXE-GR-RC |
|---|---|
| Manufacturer | Halco Lighting |
| Watts | 3 Watts |
| Input Voltage | 120V-277V |
| Dimensions | 11.8" x 1.8" x 7.25" |
| Warranty | 2 Year |
| Certifications | ![]() |
| Minimum Operating Temperature | 50°F |
| Maximum Operating Temperature | 104°F |
| UPC Code | 807154950027 |
| Lead Time | In Stock - Quick Ship |
