The Fire Rated Slim Downlight family is designed to provide a cost-effective solution for use in fire-rated ceiling systems.
The low-profile fixture design provides smooth or baffled trim options, easy installation with a spring clip mounting, and is rated to withstand heat and fire of up to 1100 degrees Celcius for 2 hours. It is the clean, modern way to light residential, multi-family, and healthcare facilities requiring fire protection.
Features
• Fire Resistant, IC, Air Tight & Wet Location
• Canless design - spring retention clips
• Remote-mounted driver box
• Frosted Polycarbonate diffuser

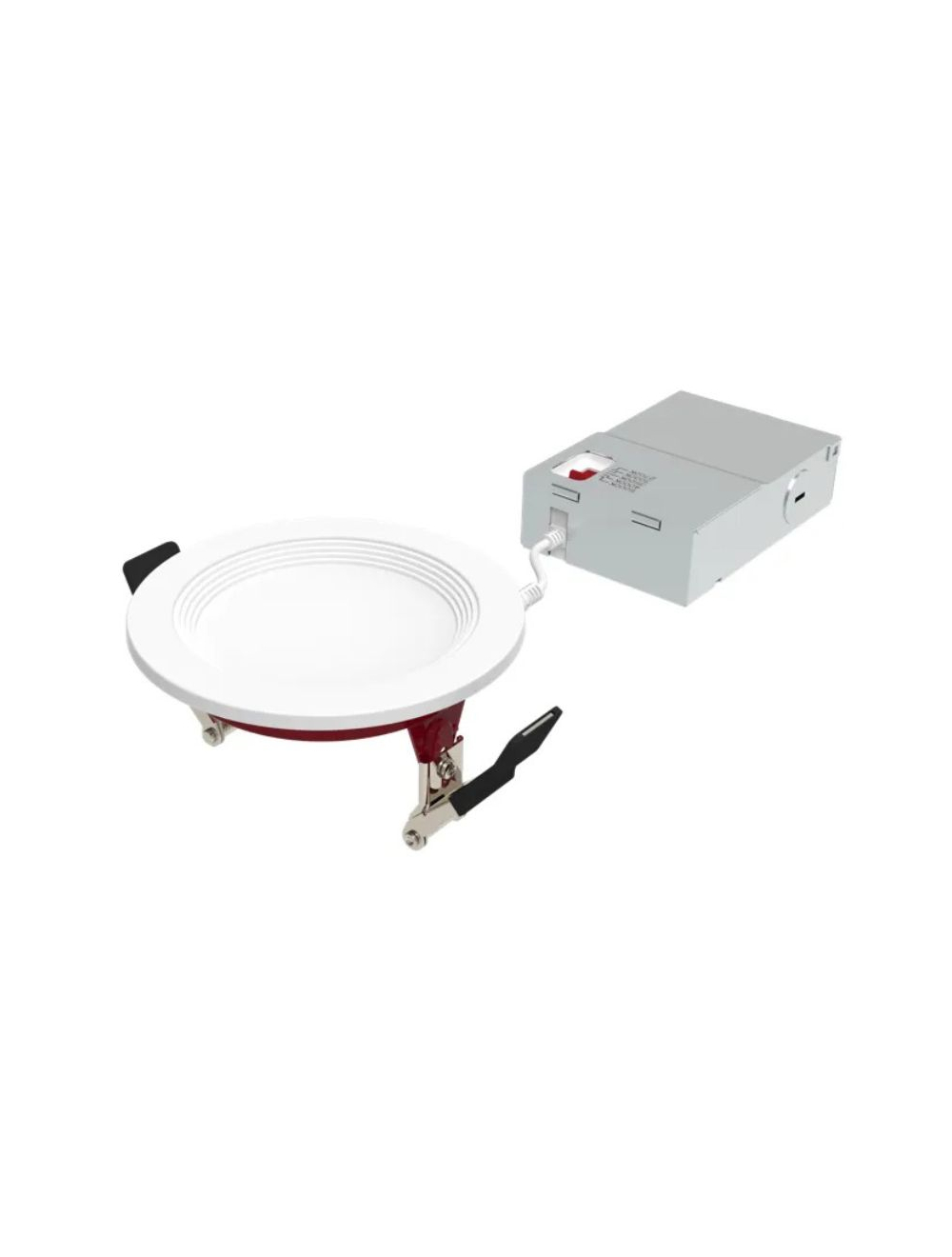

Fire-Rated Slim Downlight
• Fire Resistant
• Select from Five Color Temperatures
• IC, Air Tight and Wet Location Rated
• Triac Dimmable
Performance
• Field selectable CCT (2700K, 3000K, 3500K, 4000K, 5000K)
• 90 CRI
• 120V, 50/60 Hz triac dimming driver to 10%
• L70 lumen maintenance > 60,000 hours
• Up to 103 lumens per watt
• 5-year limited warranty
Construction
• Powder-coated steel housing
• Canless design with spring retention clips and remote-mounted driver box
• Edge Lit LED design with frosted polycarbonate diffuser
• Field selectable CCT switch
Certifications
• cULus rated for wet locations
• 2-hour fire rating per UL263/ASTM E119/CAN ULC-S101-07
• IC Rated for direct contact with insulation
• Air-tight certified per ASTM E283-2004
• Energy Star rated
• TAA compliant
• Complies with California T24 standards
• RoHS compliant
• FCC part 15 compliant
| Part Number | FRSDL-4-CS-BT-120V |
|---|---|
| Manufacturer | Halco Lighting |
| Recessed Can Size | 4 Inch |
| Watts | 11 Watts |
| Lumens | 900 |
| CRI | 90+ |
| Color Temperature | 2700 Kelvin, 3000 Kelvin, 3500 Kelvin, 4000 Kelvin, 5000 Kelvin |
| Dimmable | Yes |
| Input Voltage | 120V |
| Rated Life | 60,000 hours + |
| Minimum Operating Temperature | -4°F |
| Maximum Operating Temperature | 104°F |
| Dimensions | 4.75" x 4.75" x 2.5" |
| Length | 4.75 |
| Width | 4.75 |
| Height | 2.5 |
| Certifications | ![]() ![]() ![]() ![]() ![]() ![]() |
| Warranty | 5 Year |
| UPC Code | 807154892037 |
| Lead Time | In Stock - Quick Ship |
